Ultra High Sensitivity Transmission Spectrometer With VPH Volume Holographic Transmission Grating

Contact Now

Ultra High Sensitivity Transmission Spectrometer With VPH Volume Holographic Transmission Grating

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	40-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	80 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	ST90S
Document:	Product Brochure PDF

Detail Information
Grating Type:	VPH Volume Holographic Transmission Grating	Optical Resolution:	0.25nm, Corresponds To 8cm-1(50μm Slit)
Integration Time:	1ms-3600s	Research-grade Ramanspectroscopy Detection System:	532 Confocal Raman Microscopy
Diffraction Efficiency:	>85%	Product Category:	Fiber Optic Spectrometers
Highlight:	Ultra High Sensitivity Transmission Spectrometer , Ultra High Sensitivity transmission spectrophotometer , Holographic Transmission Grating Spectrometer

Product Description

Ultra High Sensitivity Transmission Spectrometer With VPH Volume Holographic Transmission Grating

Key Features

VPH Volume Holographic Transmission Grating with >85% diffraction efficiency
High optical resolution: 0.25nm (corresponds to 8cm-1 with 50μm slit)
Deep cooling 532nm Raman Spectrometer Module
Compact dimensions: 348.7mm × 222.8mm × 126mm
Lightweight design: <6kg (including camera)
High stability with no adjustable components
Supports multiple channels (SMA905 or Φ10mm multi-core optical fiber)

Technical Specifications

Attribute	Value
Grating Type	VPH Volume Holographic Transmission Grating
Optical Resolution	0.25nm (Corresponds to 8cm-1 with 50μm slit)
Integration Time	1ms-3600s
Wavelength Range	540nm~686nm (Corresponds to 260~4200cm-1)
Numerical Aperture	0.25
Fiber Interface	SMA905 or Φ10mm Multi-core Optical Fiber
Product Category	Fiber Optic Spectrometers

Applications

Research-grade Raman spectroscopy detection system
532nm Confocal Raman microscopy
Integration of industrial Raman systems
Chemical industry online monitoring
Biopharmaceutical applications

Technical Advantages

Zero-aberration design with diffraction-limited resolution
Highly stable construction with no adjustable components
High flux with numerical aperture of 0.25
VPH grating with diffraction efficiency up to 90%
Compatible with multiple scientific research-grade cooling cameras

Ordering Information

Minimum Order Quantity	1 unit
Price	Negotiable
Payment Terms	T/T, Western Union, L/C
Supply Ability	80 PCS/70-90 days
Delivery Time	40-70 working days

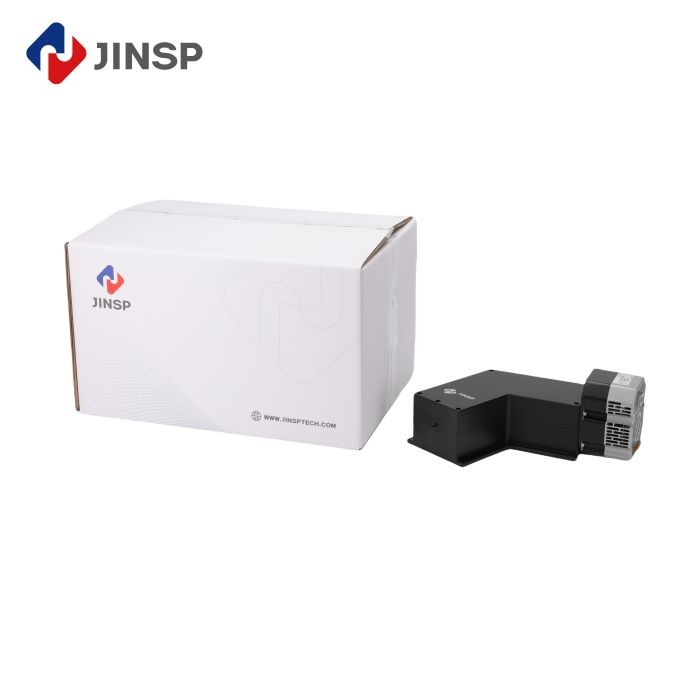

Packaging	Customized packaging available

About JINSP Technology

JINSP Company Limited originates from Tsinghua University with 17 years of experience in developing spectroscopic technology. As a leading supplier, we offer over twenty spectroscopic products across various fields including pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Support & Services

Comprehensive English manual and guide videos
Professional technical operation meetings
On-site installation, training, debugging, and maintenance available
Regular software updates
One-year product warranty

Frequently Asked Questions

Q: What is the brand and model of this product?

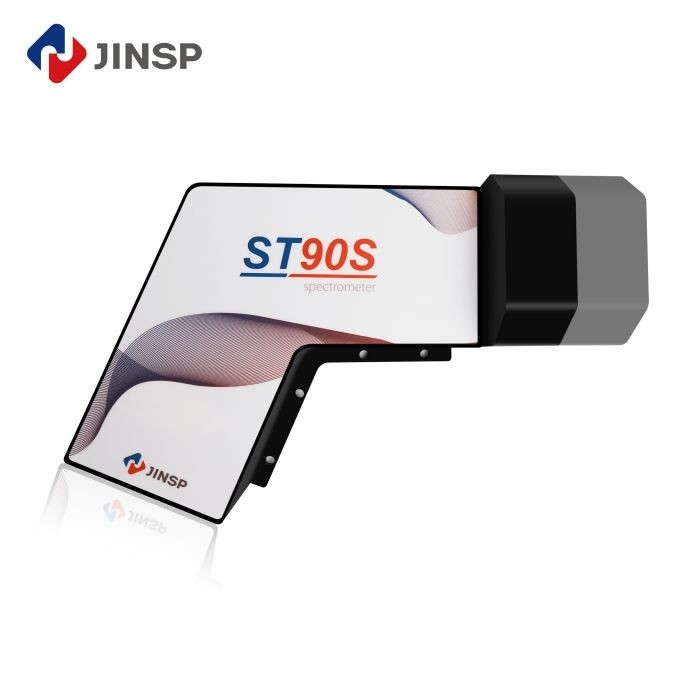

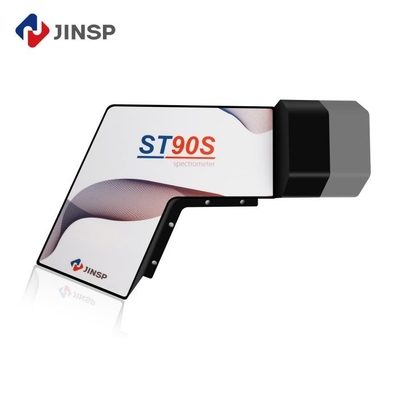

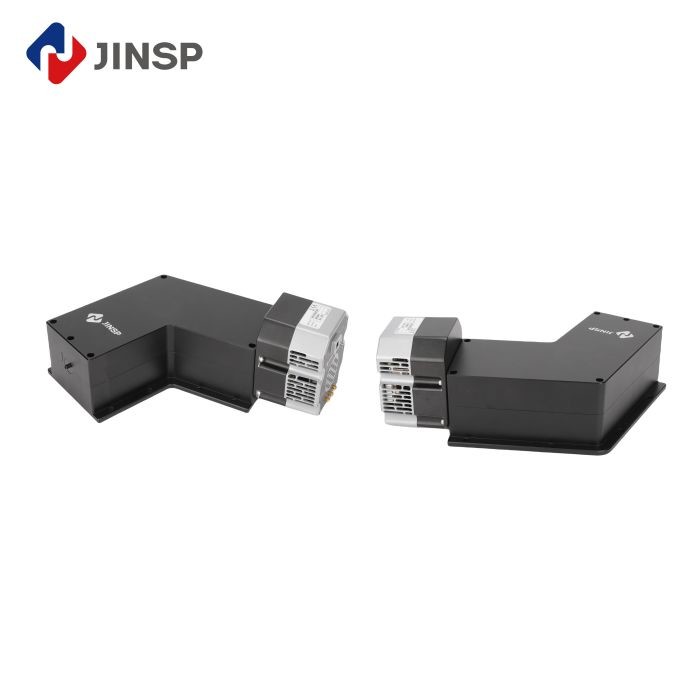

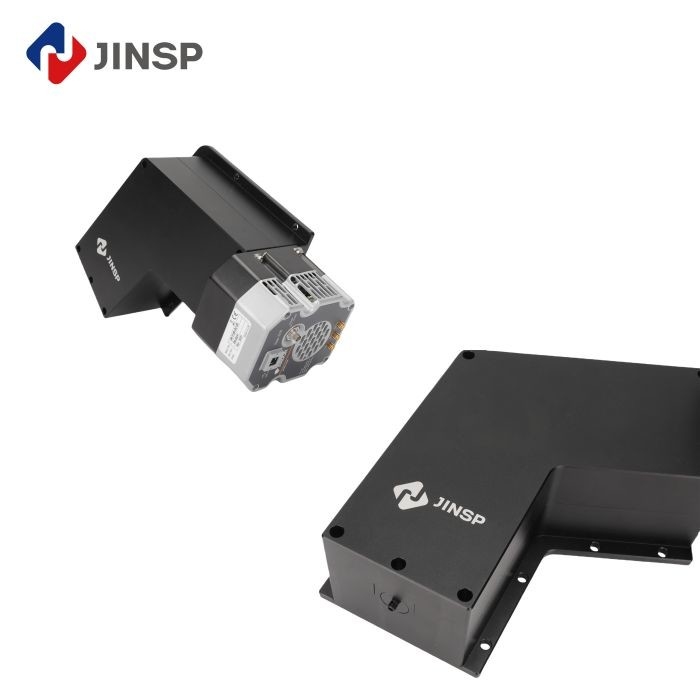

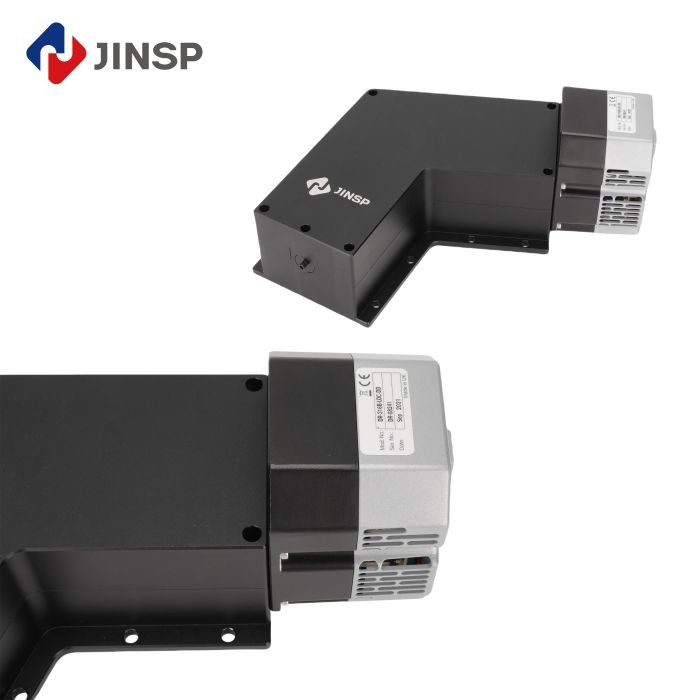

A: This is the JINSP ST90S High-Throughput Transmission Fiber Spectrometer.

Q: Is this product certified?

A: No, this product is not certified.

Q: What are the payment and shipping terms?

A: We accept T/T, Western Union, and L/C payments. Delivery takes 40-70 working days with customized packaging available.
