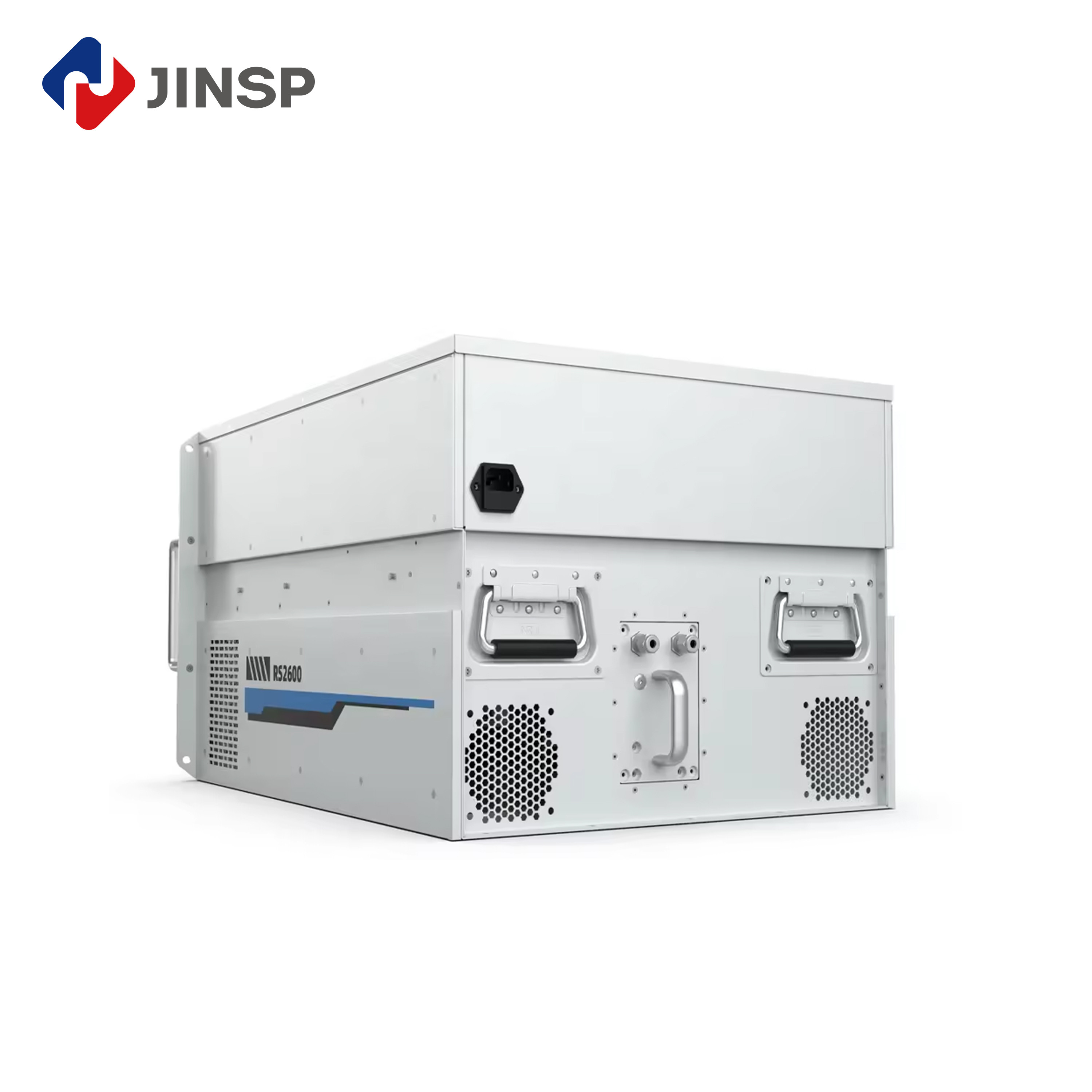

Laser Excitation Wavelength 532nm Online Raman Gas Analyzer Machine

Contact Now

Laser Excitation Wavelength 532nm Online Raman Gas Analyzer Machine

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	T/T, Western Union	Supply Ability :	5PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2600
Document:	Product Brochure PDF

Detail Information
Weight:	40 Kg	Input Voltage:	100~240 VAC,50~60 Hz
Laser Excitation Wavelength:	532 ± 0.5 Nm	Measurement Principle:	Raman Spectroscopy
Highlight:	532nm Online Raman Gas Analyzer , 532nm gas analyser machine , Raman gas analyser machine

Product Description

Laser Excitation Wavelength 532nm Online Raman Gas Analyzer Machine

Key Specifications

Weight	40 Kg
Input Voltage	100~240 VAC, 50~60 Hz
Laser Excitation Wavelength	532 ± 0.5 Nm
Measurement Principle	Raman Spectroscopy
Spectral Coverage	200 ~ 4200 Cm-1
Sample Gas Pressure	<1.0 MPa
Spectral Resolution	≤8 cm-1 at full spectral range

Product Overview

The JINSP RS2600 Online Raman Analyzer for Gases provides real-time analysis using advanced Raman spectroscopy technology. Designed for industrial environments, it delivers accurate results with a fast 2-second analysis time.

Key Features

Non-destructive gas analysis method
Ultra-fast detection time (2 seconds)
Wide detection range for multiple gases (N2, H2, O2, CO, CO2, H2S, CmHn, etc.)
Versatile air circuit interface with 6 mm standard tube fitting (3 mm, 1/8'', 1/4'' options available)
Compact dimensions: 485 mm × 350 mm × 600 mm
CE ISO9001 certified

Applications

This versatile analyzer is suitable for various industries including chemical processing, pharmaceuticals, and food & beverage production. Its robust design ensures reliable performance in demanding industrial environments.

Technical Support & Services

Our team provides comprehensive support including installation, calibration, maintenance, and training services. We also offer optional accessories such as sample handling systems, process interfaces, and data analysis software.

Ordering Information

Brand	JINSP
Model	RS2600
Origin	China
Minimum Order	1 unit
Payment Terms	T/T, Western Union
Delivery Time	90-120 working days
Supply Capacity	5 units per 90-120 days

Frequently Asked Questions

What is the brand name of this online Raman analyzer for gases?

The brand name is JINSP.

What is the model number of this product?

The model number is RS2600.

Where is this product made?

This product is manufactured in China.

Is the price negotiable?

Yes, the price is negotiable with a minimum order quantity of 1 unit.
