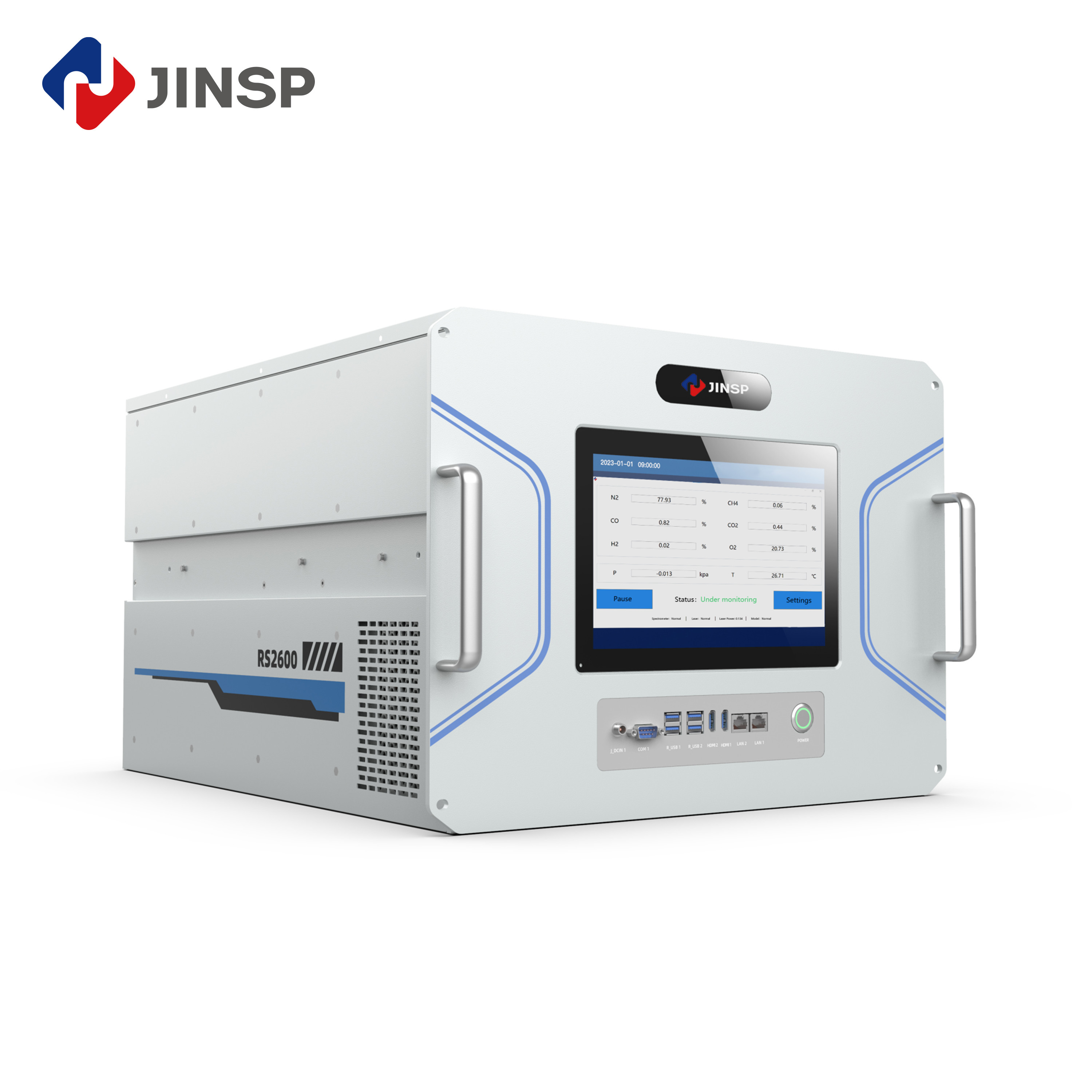

RS2600 Multi-gas Analyzer
The RS2600 multi-gas analyzer provides simultaneous online analysis of multiple gas components in production processes using advanced Raman spectroscopy technology.
Key Specifications
| Attribute |
Value |
| Model Name |
RS2600 Multi-gas Analyzer |
| Laser excitation wavelength |
532 ± 0.5 nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Analysis time |
2 seconds |
| Weight |
40 kg |
| Measurement Method |
Raman Spectroscopy |
Advanced Gas Analysis Technology
The JINSP® RS2600 multi-gas analyzer leverages Raman spectroscopy to detect and analyze a wide range of gases in real-time, with the exception of noble gases. This sophisticated system enables simultaneous monitoring of gas mixtures for various industrial and scientific applications.
Industry Applications
- Petrochemical industry: CH4, C2H6, C3H8, C2H4, etc.
- Fluorine chemical industry: F2, BF3, PF5, Cl2, HCl, HF, etc.
- Metallurgical industry: N2, H2, O2, CO2, CO, etc.
Technical Specifications
| Component |
Specification |
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Measurement uncertainty |
≤0.2% |
| Spectral resolution |
≤8 cm-1 at full spectral range |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' optional) |
| Input voltage |
100~240 VAC, 50~60 Hz |
| Sample gas temperature |
-50 ~ 40 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Dimensions |
485 mm (W) × 350 mm (H) × 600 mm (D) |
Technical Highlights
- Non-destructive analysis of homonuclear diatomic and isotopic gases
- Rapid detection with results in seconds
- Minimal maintenance with no consumables required
- Wide detection range from ppm level to 100% concentration
Application Examples
Monitoring of F2, N2, HF and other components in fluorination processes
Quantitative analysis of elements in petrochemical natural gas with effective identification within 2 seconds
Field application scenarios
Advanced Analysis Features
The analyzer uses quantitative models and chemometric methods to establish correlations between spectral signals and component concentrations, ensuring accurate results even with changing sample conditions.
About JINSP Technology
Originating from Tsinghua University with 17 years of spectroscopic technology development experience, JINSP offers over twenty spectroscopic products for pharmaceutical, chemical, and security applications.
Frequently Asked Questions
Q1: Is the analyzer easy to operate for first-time users?
A1: We provide comprehensive English manuals and instructional videos, along with professional technical support meetings.
Q2: Do you offer operation training?
A2: Training options include on-site visits to our facility or local support from JINSP engineers for installation, training, and maintenance.
Q3: How can I receive the best price quickly?
A3: Please provide detailed specifications (wavelength, detector, pixels, focal length) in your inquiry for a prompt, detailed quotation.
Q4: What if the analyzer has problems during operation?
A4: The analyzer comes with a one-year warranty. Our technicians will diagnose and repair any issues at no cost during the warranty period.
