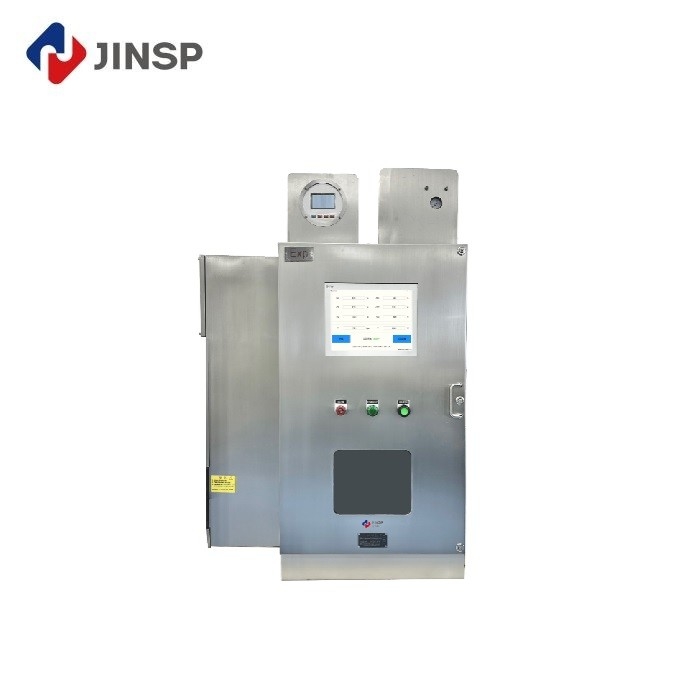

High Applicability Industrial Process Online Multi-Gas Analyzer 532nm Laser Raman Spectroscopy Device

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	50 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2600PAT
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	532nm	Spectral Range:	200 ~ 4200 Cm-1
Resolution:	≤ 8 Cm-1 At Full Spectral Range	Power Supply:	100 ~ 240 VAC，50 ~ 60 Hz
Analysis Time:	2 Seconds	Explosion Protection Rating (Main Unit):	ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135℃Db
Measurement Uncertainty:	≤0.2%	Samplegaspressure:	＜1.0MPa
Highlight:	High Applicability Online Multi-Gas Analyzer , 532nm Laser Raman Spectroscopy Device , Industrial Process Online Multi-Gas Analyzer

Product Description

High Applicability Industrial Process Online Multi-Gas Analyzer

532nm Laser Raman Spectroscopy Device

Key Features

Simultaneous online analysis of multiple gases
Detection range from ppm to 100% concentration
Rapid 2-second analysis time
≤0.2% measurement uncertainty
Explosion-proof certified (ExdbebibmbpxbIICT4Gb)

Technical Specifications

Attribute	Value
Laser wavelength	532nm
Spectral range	200 ~ 4200 cm⁻¹
Resolution	≤8 cm⁻¹ at full spectral range
Power supply	100 ~ 240 VAC, 50 ~ 60 Hz
Sample gas pressure	＜1.0MPa
Unit dimensions	485 mm (W) × 350 mm (H) × 600 mm (D)
Weight	40 kg

Detectable Gas Components

The RS2600PAT analyzer can detect over 500 types of gases (excluding noble gases) including:

Petrochemical industry: CH₄, C₂H₆, C₃H
