Highly Accurate Multi-Gas Analyzer 2s Analysis Time ≤0.2% Measurement Uncertainty for Industrial

Contact Now

Highly Accurate Multi-Gas Analyzer 2s Analysis Time ≤0.2% Measurement Uncertainty for Industrial

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	TT	Supply Ability :	20 PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	RS2600PAT
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	532nm	Spectral Range:	200 ~ 4200 Cm-1
Resolution:	≤ 8 Cm-1 At Full Spectral Range	Power Supply:	100 ~ 240 VAC，50 ~ 60 Hz
Analysis Time:	2 Seconds	Measurement Uncertainty:	≤0.2%
Highlight:	Industrial Multi-Gas Analyzer , 2s Analysis Time Multi-Gas Analyzer , Highly Accurate Multi-Gas Analyzer

Product Description

Highly Accurate Multi-Gas Analyzer

2s Analysis Time ≤0.2% Measurement Uncertainty for Industrial Applications

Key Specifications

Laser wavelength	532nm
Spectral range	200 ~ 4200 cm^-1
Resolution	≤ 8 cm^-1 at full spectral range
Power supply	100 ~ 240 VAC，50 ~ 60 Hz
Analysis time	2 seconds
Measurement uncertainty	≤0.2%

Product Overview

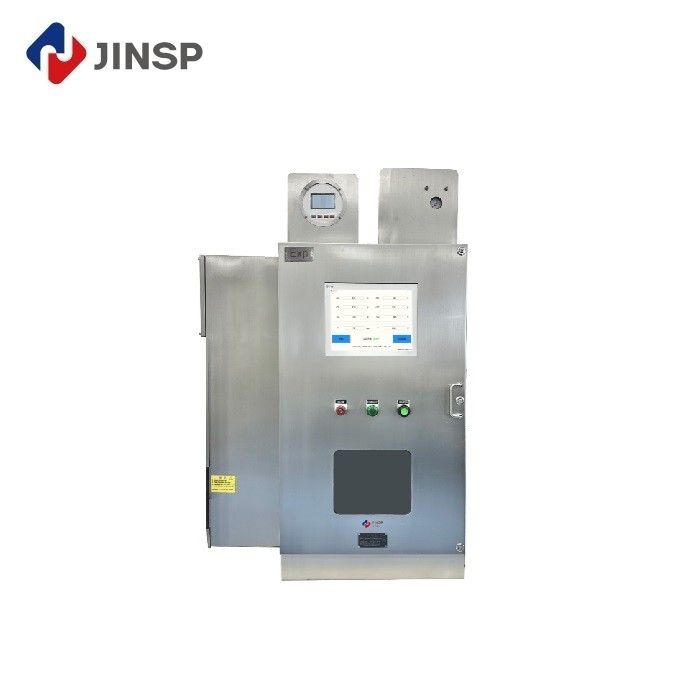

The RS2600PAT Online Raman Multi-Gas Analyzer from JINSP® utilizes Raman spectroscopy technology to detect all gases except noble gases, enabling simultaneous online analysis of multiple gases with exceptional accuracy.

Detection Capabilities

Petrochemical industry: CH₄, C₂H₆, C₃H₈, C₂H₄, and other alkane, alkene and alkyne gases
Fluorine chemical industry: F₂, BF₃, PF₅, Cl₂, HCl, HF and other corrosive gases
Metallurgical industry: N₂, H₂, O₂, CO₂, CO, etc.

Technical Highlights

Multi-component analysis: Simultaneous online detection of multiple gases
Universal detection: >500 detectable gas types (excluding noble gases)
Pressure-independent: Quantification unaffected by sample gas pressure changes
Rapid response: Complete detection within seconds
Wide quantitative range: From ppm level detection up to 100% concentration

Detailed Specifications

Components	N₂, H₂, O₂, CO, CO₂, H₂S, C_mH_n, etc.
Laser excitation wavelength	532 ± 0.5 nm
Spectral coverage	200 ~ 4200 cm^-1
Spectral resolution	≤8 cm^-1 at full spectral range
Air circuit interface	6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' optional)
Explosion-proof rating	ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135ºCDb
Input voltage	100~240 VAC, 50~60 Hz
Sample gas temperature range	-50 ~ 40 ºC
Sample gas pressure	＜1.0 MPa
Dimensions	485 mm (W) × 350 mm (H) × 600 mm (D)
Weight	40 kg

Applications

Petrochemical industry
Fluorine chemical industry
Metallurgical industry
Isotope gas analysis

Key Features

The analyzer uses quantitative models with multiple standard curves and chemometric methods to establish relationships between spectral signals and multi-component substance content. This innovative approach provides several advantages:

Pressure and test condition changes don't affect quantitative accuracy
No need for separate quantitative models per component

Company Achievements

JINSP Company Limited has received numerous prestigious awards and certifications including:

National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate
China Patent Excellence Award
Geneva International Invention Award
Beijing New Technology and New Product Certificate
"Innovation Achievement Award" of the Zhu Liangyi Analytical Instrument Innovation Award

JINSP has participated in drafting several national and international standards, including:

IEC 63085 International Standard (as the only Chinese participant)
GB/T 41086-2021 "General Technical Requirements for Safety Inspection Equipment for Hazardous Chemicals Based on Raman Spectroscopy"
GB/T 40219-2021 "General Specification for Raman Spectrometer"

Frequently Asked Questions

Q: This is my first time using the analyzer. Is it easy to operate?

A: We provide an English manual and instructional video to guide you through spectrometer operation. Our technicians also offer professional technical support meetings.

Q: Do you offer operation training?

A: Your technicians can receive training at our factory. JINSP engineers also provide on-site support including installation, training, debugging, and maintenance.

Q: How can I receive the best price quickly?

A: Please include detailed requirements (wavelength, detector, effective pixels, focal length, etc.) in your inquiry. We will promptly email a detailed quotation.

Q: What quality assurance measures do you have?

A: Our quality inspection team thoroughly checks all goods before shipment. We can provide inspection photos upon request.
