Advanced Near Infrared Spectrometer 900-2500nm SR100N25 with 12.8mm*0.5mm Sensing Area

Contact Now

Advanced Near Infrared Spectrometer 900-2500nm SR100N25 with 12.8mm*0.5mm Sensing Area

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	T/T, Western Union	Supply Ability :	5PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100N25
Document:	Product Brochure PDF

Detail Information
Sensing Area:	12.8mm*0.5mm	Wavelength Range:	900~2500nm
Entrance Slit Width:	5μm，10μm，25μm，50μm (customizable)	Incident Light Interface:	SMA905 Fiber Interface, Free Space
Highlight:	900-2500nm Near Infrared Spectrometer , Advanced Near Infrared Spectrometer

Product Description

Advanced Near Infrared Spectrometer 900-2500nm SR100N25 with 12.8mm*0.5mm Sensing Area

Product Attributes

Attribute	Value
Sensing Area	12.8mm*0.5mm
Wavelength Range	900~2500nm
Entrance Slit Width	5μm, 10μm, 25μm, 50μm (customizable)
Incident Light Interface	SMA905 fiber interface, free space

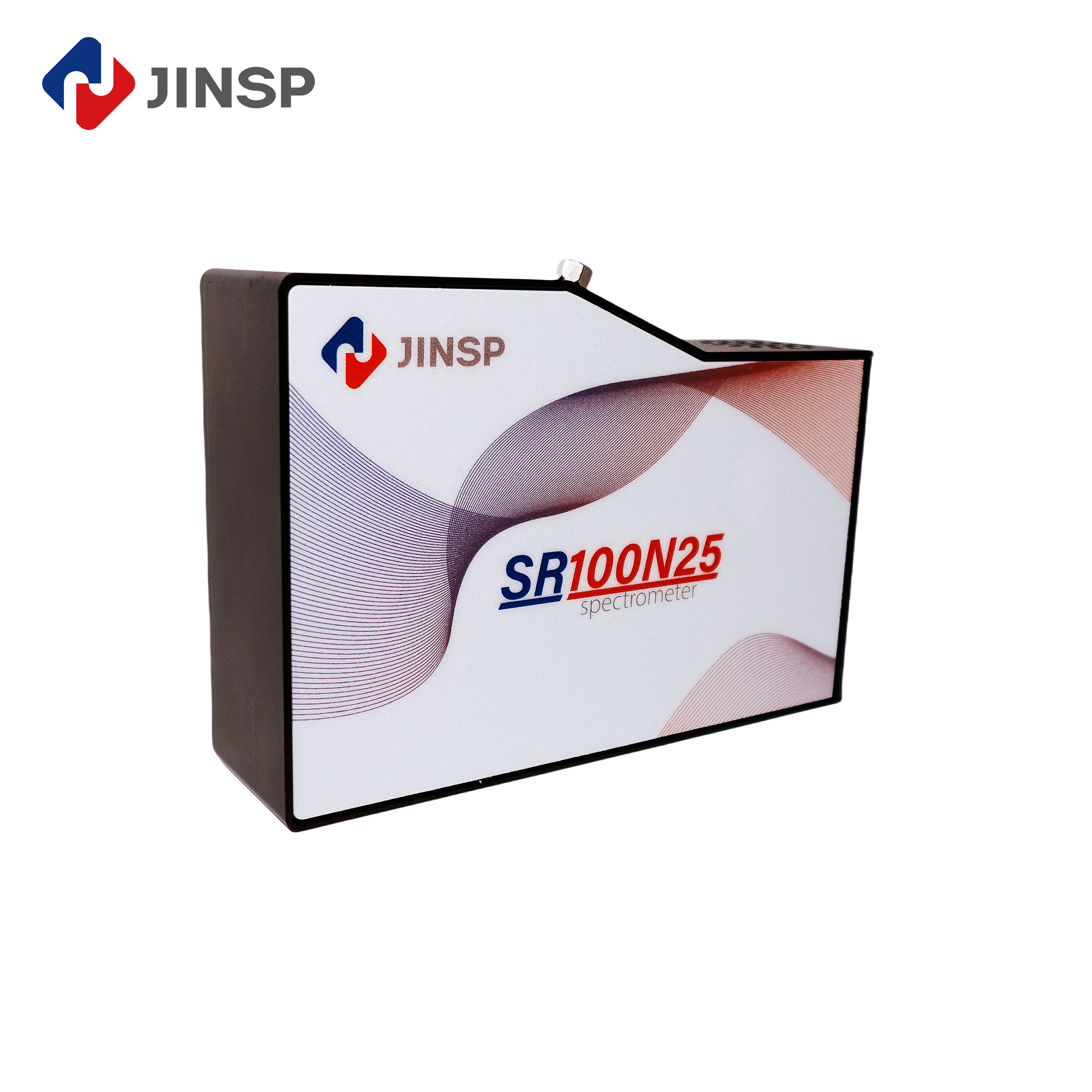

SR100N25 Cooled Near-Infrared Spectrometer

The JINSP SR100N25 near-infrared refrigerated spectrometers are versatile instruments with applications spanning a broad wavelength range of 0.9 to 1.7μm or 0.9 to 2.5μm, respectively. These spectrometers are equipped with integrated light filters that effectively screen out visible light and remove high-order modes. Additionally, they feature a cooled 512-pixel area array InGaAs sensor, ensuring high resolution and minimal stray of light. These spectrometers are suitable for detecting near-infrared spectra through transmission, reflection, or absorption methods.

Specifications

Product Name	SR100N25 Cooled Near-Infrared Spectrometer
Entrance Slit Width	5μm, 10μm, 25μm, 50μm (customizable)
Incident Light Interface	SMA905 fiber interface, free space
Wavelength Range	900~2500nm
Optical Resolution	6.3nm(@25 μm)
Optical Design	F/4 cross-type
Dimensions	178mm123mm49mm
Weight	21.7kg

Technical Characteristics

512 pixels, cooled type, high resolution, low stray of light
Receive SMA905 fiber input to obtain free space optical
Compatible with USB or UART interface to output measured spectrum data
Lens surface is plated with gold film, high efficiency of near-infrared reflection

Our products mostly include:

UV VIS NIR fiber optic spectrometers
Desktop/portable, online Raman analyzers for laboratory or industrial liquid & gas analysis
On-site rapid detectors/identifiers based on Raman technology for drugs, liquid, food safety, explosive & hazardous materials, pharmaceutical industry etc

Q1: This is the first time I use, is it easy to operate?

A1: We will send you manual and guide video in English, it can teach you how to operate the spectrometer. Also our technicians will offer professional technical operation meetings.

Q2: Can you offer an operation training?

A2: Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support (installation, training, debugging, maintenance).

Q3: What's your website?

A3: You can visit: www.jinsptech.com

Q4: What about your quality assurance?

A4: We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
