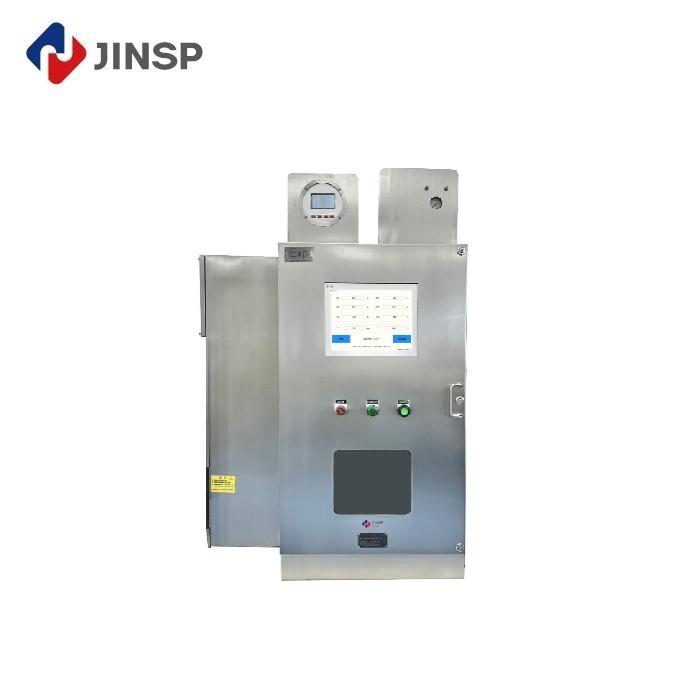

RS2600PAT Multi-Gas Analyzer For Industrial Applications Online Process Real Time Monitoring
Product Overview
The JINSP® RS2600PAT multi-gas analyzer utilizes Raman spectroscopy technology to detect all gases except noble gases, enabling simultaneous online analysis of multiple gases with detection ranges from ppm to 100% concentration.
Key Specifications
| Attribute |
Value |
| Laser wavelength |
532nm |
| Spectral range |
200 ~ 4200 cm-1 |
| Resolution |
≤ 8 cm-1 at full spectral range |
| Power supply |
100 ~ 240 VAC，50 ~ 60 Hz |
| Analysis time |
2 seconds |
| Measurement uncertainty |
≤0.2% |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Unit dimensions |
485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
Technical Highlights
- Multi-component analysis: Simultaneous online detection of multiple gases
- Universal detection: Capable of analyzing >500 gas types (excluding noble gases)
- Pressure-independent: Quantification accuracy unaffected by sample gas pressure changes
- Rapid response: Complete detection cycles in just 2 seconds
- Wide detection range: From ppm levels up to 100% concentration
Industry Applications
Petrochemical Industry
Quantitative analysis of hydrocarbon components including CH4, C2H6, C3H8, C2H4, etc. Critical for determining natural gas quality indices like calorific value.
Fluorine Chemical Industry
Detection of corrosive gases including F2, BF3, PF5, Cl2, HCl, HF, etc. Monitoring reaction and emission gases in fluorination processes.
Metallurgical Industry
Analysis of N2, H2, O2, CO2, CO, and other gases. Detection of impurity gases in electronic specialty gases.
Detailed Specifications
| Parameter |
Specification |
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Explosion-proof rating |
ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135ºCDb |
| Sample gas temperature |
-50 ~ 40 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Weight |
40 kg |
Operational Features
- Continuous monitoring of raw gas components
- Alarm system for impurity gas detection
- Real-time analysis of synthesis reactor tail gas
- Hazardous gas emission monitoring and alerts
Company Credentials
JINSP Company Limited has received numerous prestigious awards including:
- National Science and Technology Commission's Scientific and Technological Achievement Appraisal Certificate
- China Patent Excellence Award
- Geneva International Invention Award
- Beijing New Technology and New Product Certificate
JINSP has participated in drafting international and national standards including IEC 63085 and GB/T standards for Raman spectroscopy applications.
Frequently Asked Questions
Q: Is the analyzer easy to operate for first-time users?
A: We provide comprehensive English manuals and instructional videos. Our technical team also offers professional operation guidance sessions.
Q: Do you provide operation training?
A: Training options include on-site sessions at our facility or local support from JINSP engineers for installation, training, debugging, and maintenance at your location.
Q: What is your quality assurance process?
A: All products undergo rigorous quality inspection before shipment. We can provide inspection photos and documentation upon request.
