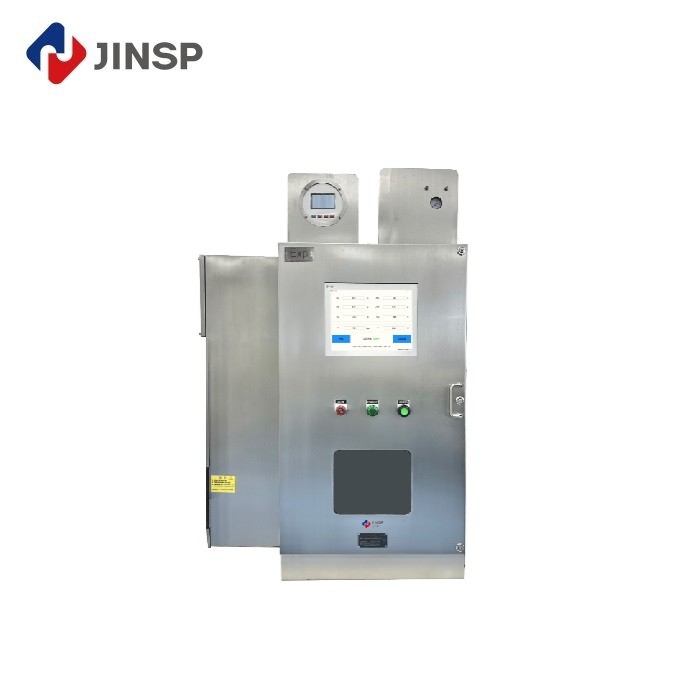

RS2600PAT Online Multi-Gas Analyzer
Professional Raman spectroscopy analyzer for petrochemical, fluorine chemical, and metallurgical industries with simultaneous multi-gas detection capability.
Key Specifications
| Attribute |
Value |
| Laser wavelength |
532nm |
| Spectral range |
200 ~ 4200 cm-1 |
| Resolution |
≤ 8 cm-1 at full spectral range |
| Power supply |
100 ~ 240 VAC，50 ~ 60 Hz |
| Analysis time |
2 seconds |
| Measurement uncertainty |
≤0.2% |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Unit dimensions |
485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
Product Overview
The JINSP® RS2600PAT multi-gas analyzer utilizes Raman spectroscopy technology to detect all gases except noble gases, enabling simultaneous online analysis of multiple components with detection ranges from ppm to 100%.
Industry-Specific Detection Capabilities
- Petrochemical industry: CH4, C2H6, C3H8, C2H4, and other hydrocarbons
- Fluorine chemical industry: F2, BF3, PF5, Cl2, HCl, HF and other corrosive gases
- Metallurgical industry: N2, H2, O2, CO2, CO, and related gases
Technical Advantages
- Simultaneous multi-component analysis capability
- Universal detection of >500 gas types (excluding noble gases)
- Pressure-independent quantification accuracy
- Rapid 2-second response time
- Wide measurement range from ppm to 100% concentration
Complete Technical Specifications
| Parameter |
Specification |
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Laser excitation wavelength |
532 ± 0.5 nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Explosion-proof rating |
ExdbebibmbpxbIICT4Gb / ExtbibmbIIICT135ºCDb |
| Sample gas temperature range |
-50 ~ 40 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Weight |
40 kg |
Industrial Applications
Petrochemical: Accurate analysis of natural gas components including hydrocarbon mixtures for calorific value determination.
Fluorine Chemical: Monitoring reaction gases and fluorination process components (F2, N2, HF).
Metallurgical: Detection of isotope gases and electronic specialty gas impurities.
Operational Features
- Continuous monitoring of raw gas components
- Impurity gas alarm system
- Synthesis reactor tail gas analysis
- Hazardous gas emission monitoring
Company Credentials
JINSP Company Limited holds multiple prestigious awards including:
- National Science and Technology Commission's Scientific Achievement Certificate
- China Patent Excellence Award
- Geneva International Invention Award
JINSP has participated in drafting international standards (IEC 63085) and national standards for Raman spectroscopy applications.
Frequently Asked Questions
Q: Is the analyzer easy to operate for first-time users?
A: We provide comprehensive English manuals, instructional videos, and technical support sessions with our engineers.
Q: Do you offer operational training?
A: Yes, we provide both on-site training at our facility and field support including installation, debugging, and maintenance at your location.
Q: How can I get the best pricing?
A: Please provide detailed specifications in your inquiry for an accurate quotation.
Q: What quality assurance measures are in place?
A: All units undergo rigorous quality inspection before shipment, with documentation and photos available upon request.
