Compact Non-Cooled InGaAs Sensor Near Infrared Spectrometer Module With 900nm -1700nm Wavelength Range

Contact Now

Compact Non-Cooled InGaAs Sensor Near Infrared Spectrometer Module With 900nm -1700nm Wavelength Range

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Type:	Linear Array InGaAs	Effective Pixels:	128 (256 Optional)
Cell Size:	50μm*250μm	Sensitive Area:	6.4mm*0.25mm
Wavelength Range:	900-1700nm	Data Output Interface:	USB2.0, UART
Entrance Slit:	10μm, 25μm And 50μm	Integration Time:	1ms-5s
Highlight:	Non-Cooled Near Infrared Spectrometer , Compact Near Infrared Spectrometer Module , InGaAs Sensor Near Infrared Spectrometer Module

Product Description

Compact Non-Cooled InGaAs Sensor Near Infrared Spectrometer Module With 900nm -1700nm Wavelength Range

Product Overview

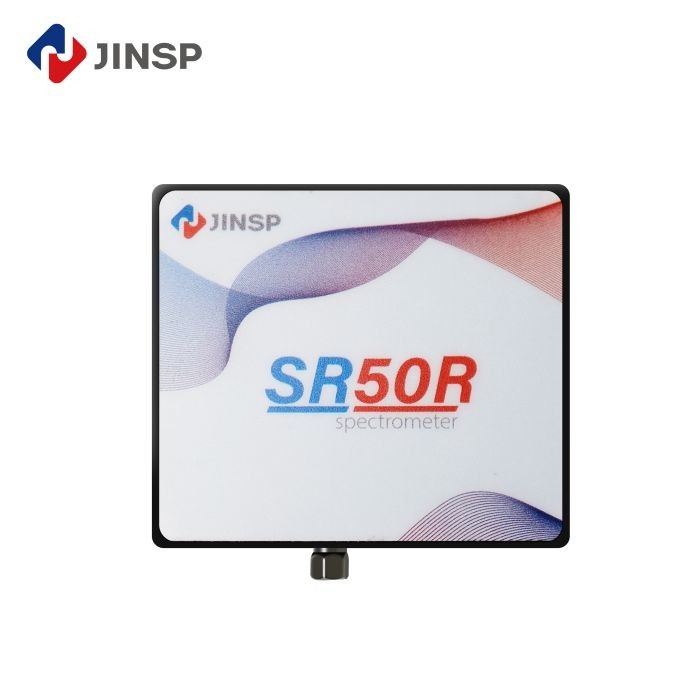

The JINSP SR50R17 is a compact, cost-effective near-infrared spectrometer module featuring a 900-1700nm spectral range. This non-cooled InGaAs sensor model delivers exceptional sensitivity and high resolution for precision applications while eliminating the need for complex cooling systems, reducing maintenance and operational costs.

Technical Specifications

Attribute	Value
Type	Linear array InGaAs
Effective pixels	128 (256 optional)
Cell size	50μm*250μm
Sensitive area	6.4mm*0.25mm
Wavelength range	900-1700nm
Data Output Interface	USB2.0, UART
Entrance slit	10μm, 25μm and 50μm
Integration time	1ms-5s
Dimensions	77mm67mm36mm
Weight	0.4KG
Operating Humidity	<90%RH (no condensation)

Key Features

Compact and cost-effective design
High resolution InGaAs sensor
USB or UART interface for spectrum data output

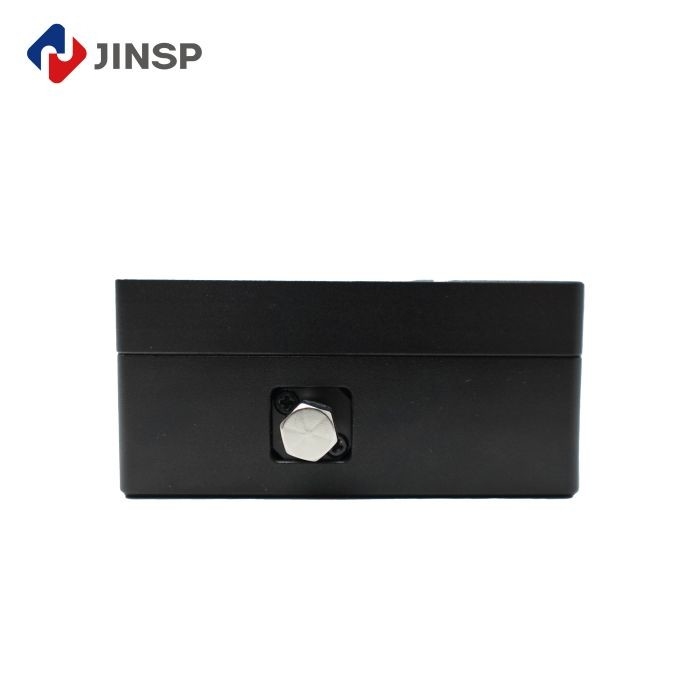

SMA905 fiber input for free space optical connection
Gold-plated lens surface for efficient near-infrared reflection
Customizable entrance slit widths (5μm, 10μm, 25μm, 50μm)

Applications

This spectrometer is ideal for various scientific and industrial applications including:

Moisture content measurement
Waste water testing
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component measurement

Support & Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades
Calibration and maintenance services
Customization options for specific application needs

Our engineering team ensures optimal performance and reliability of your spectrometer with dedicated support.

About JINSP

JINSP Company Limited is a professional supplier with 17+ years experience in spectral detection technology (Raman, FT-IR, LIBS). With 200+ patents and 30+ R&D engineers (including 4 Ph.D.), we lead in personalized product customization and innovative design.

Our products serve pharmaceutical, chemical, public security, and customs industries, with 3,000+ units sold across 30+ countries.

Frequently Asked Questions

Q: Is this spectrometer easy to operate for first-time users?

A: We provide English manuals, guide videos, and professional technical operation meetings to ensure easy setup and use.

Q: Do you offer operation training?

A: Yes, your technicians can receive training at our factory or we can provide on-site support including installation, training, debugging, and maintenance.

Q: How can I get the best price quickly?

A: Please provide detailed requirements (wavelength, detector, effective pixels, focal length etc.) in your inquiry for an accurate quotation.

Q: What if I encounter problems with the spectrometer?

A: The product includes a 1-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Q: What payment methods do you accept?

A: We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
