NIR Modular Spectrometer JINS 128/256 pixels InGaAs 900nm -1700nm Wavelength Range

Contact Now

NIR Modular Spectrometer JINS 128/256 pixels InGaAs 900nm -1700nm Wavelength Range

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Type:	Linear Array InGaAs	Effective Pixels:	128 (256 Optional)
Cell Size:	50μm*250μm	Sensitive Area:	6.4mm*0.25mm
Wavelength Range:	900-1700nm	Data Output Interface:	USB2.0, UART
Entrance Slit:	10μm, 25μm And 50μm	Integration Time:	1ms-5s
Highlight:	InGaAs NIR Spectrometer , 900nm -1700nm NIR Spectrometer , NIR Modular Spectrometer

Product Description

NIR Modular Spectrometer JINS 128/256 pixels InGaAs 900nm -1700nm Wavelength Range

Product Specifications

Attribute	Value
Type	Linear array InGaAs
Effective pixels	128 (256 optional)
Cell size	50μm*250μm
Sensitive area	6.4mm*0.25mm
Wavelength range	900-1700nm
Data Output Interface	USB2.0, UART
Entrance slit	10μm, 25μm and 50μm
Integration time	1ms-5s

Product Overview

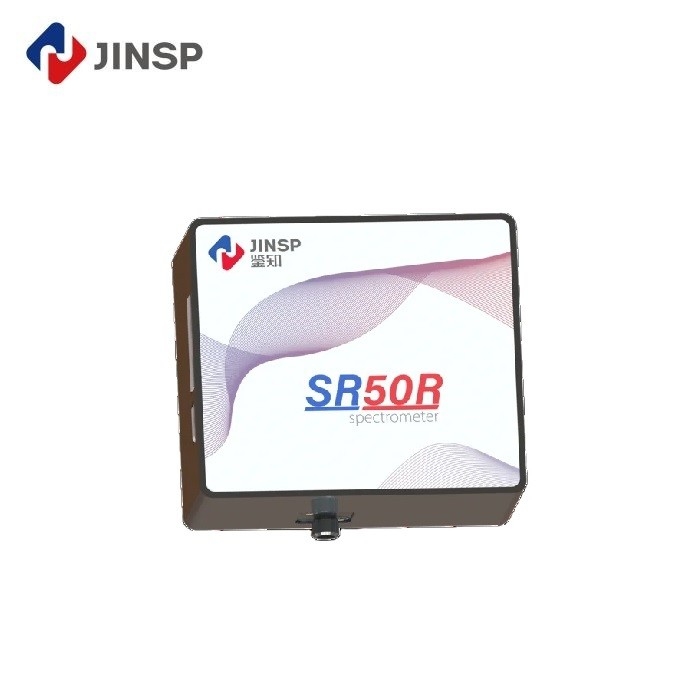

The JINSP SR50R17 near-infrared spectrometer is a compact, economical solution offering a spectral range of 900nm to 1700nm, ideal for various scientific and industrial applications. Featuring a non-cooled InGaAs sensor, it delivers outstanding sensitivity and sharp resolution for precise measurements.

Key Features

Compact and cost-effective design
High resolution spectral measurements
USB and UART interface compatibility

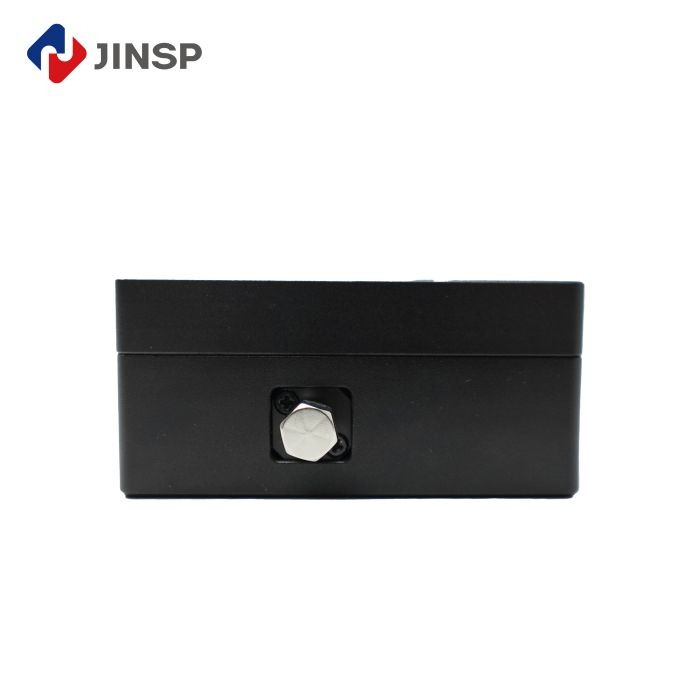

SMA905 fiber input for free space optical connection
Gold-plated lens surface for efficient near-infrared reflection

Technical Parameters

Product Name	Near Infrared Non-cooled Spectrometer
Wavelength Range	900-1700nm
Chip Type	Linear array InGaAs
Entrance Slit width	5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface	SMA905, free space
Integration Time	1ms-5s
Operating Humidity	<90%RH (no condensation)
Dimensions	77mm67mm36mm
Weight	0.4KG

Applications

Moisture content measurement
Waste water testing
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component analysis

Support & Services

Our high-performance near-infrared spectrometer comes with comprehensive support:

Expert technical assistance and troubleshooting
Detailed product documentation and user manuals
Software updates and upgrades
Calibration and maintenance services
Customization options for specific applications

About JINSP

JINSP Company Limited is a professional supplier with 17+ years of experience in spectral detection technology, including Raman, FT-IR, and LIBS technologies. With over 200 patents and ISO certifications (9001:2015, 14001:2015, 45001:2018), we provide innovative spectroscopic solutions worldwide.

Frequently Asked Questions

Q: Is this spectrometer easy to operate for first-time users?

A: We provide English manuals and guide videos, along with professional technical operation meetings with our technicians.

Q: Do you offer operation training?

A: Yes, your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.

Q: How can I get the best price quickly?

A: Please provide detailed requirements (wavelength, detector, effective pixels, focal length, etc.) in your inquiry for an accurate quotation.

Q: What if I encounter problems with the spectrometer?

A: The product comes with a one-year warranty. Our technicians will diagnose any issues and provide free repairs within the warranty period.

Q: What payment methods do you accept?

A: We accept T/T, Paypal, Western Union, L/C, and other payment methods.
