NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector
NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector
NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector
Contact Now

NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 30-50 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE ISO9001 Model Number: SR50R
Document: Product Brochure PDF

Detail Information
Type: Linear Array InGaAs Effective Pixels: 128 (256 Optional)
Cell Size: 50μm*250μm Sensitive Area: 6.4mm*0.25mm
Wavelength Range: 900-1700nm Data Output Interface: USB2.0, UART
Entrance Slit: 10μm, 25μm And 50μm Integration Time: 1ms-5s
Highlight:

900nm -1700nm NIR Spectrometer Module

,

InGaAs Detector NIR Spectrometer

,

256 pixels NIR Spectrometer Module

Product Description

NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector
Product Specifications
Attribute Value
Type Linear array InGaAs
Effective pixels 128 (256 optional)
Cell size 50μm*250μm
Sensitive area 6.4mm*0.25mm
Wavelength range 900-1700nm
Data Output Interface USB2.0, UART
Entrance slit 10μm, 25μm and 50μm
Integration time 1ms-5s
Product Overview

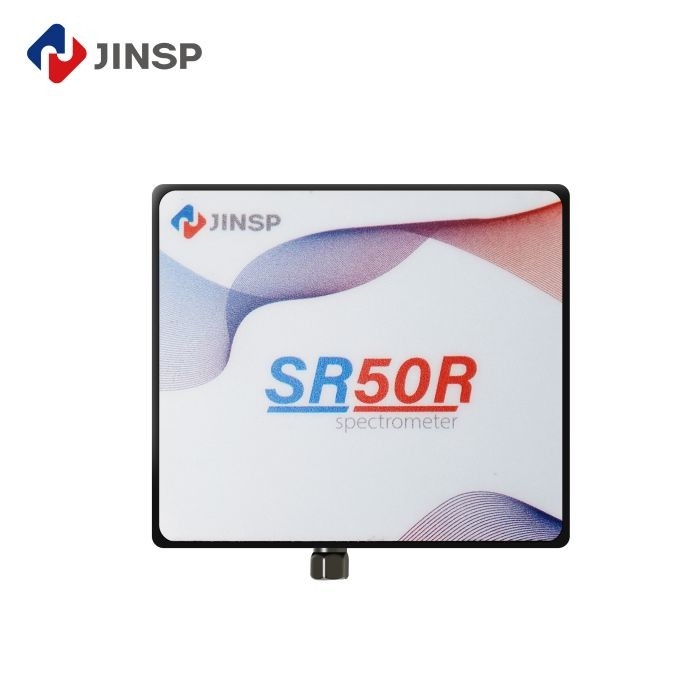

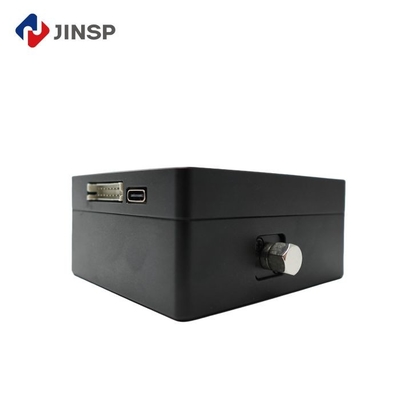

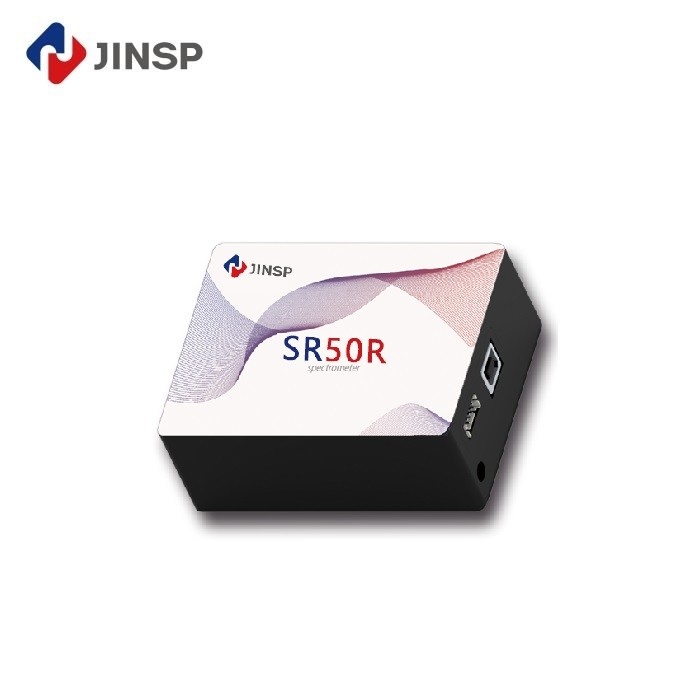

The JINSP SR50R17 NIR Spectrometer is a compact, cost-effective solution for near-infrared spectroscopy applications with a spectral range of 900nm to 1700nm. Featuring a non-cooled InGaAs sensor, this spectrometer delivers exceptional sensitivity and resolution while maintaining reliable performance across various environments without complex cooling systems.

NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector 0 NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector 1
Technical Parameters
Product Name Near Infrared Non-cooled Spectrometer
Wavelength Range 900-1700nm
Chip Type Linear array InGaAs
Entrance Slit width 5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface SMA905, free space
Integration Time 1ms-5s
Operating Humidity <90%RH (no condensation)
Dimensions 77mm*67mm*36mm
Weight 0.4KG
Key Features
  • Compact and economical design
  • High resolution performance
  • USB or UART interface for spectrum data output
  • SMA905 fiber input for free space optical connection
  • Gold film plated lens surface for efficient near-infrared reflection
Applications

This spectrometer is ideal for various industrial and scientific applications including:

  • Moisture content measurement
  • Waste water testing
  • Detection of substances (fat, oil, protein, fiber)
  • Grain and fodder quality testing
  • Pharmaceutical mixture component measurement
NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector 2
Support & Services

Our comprehensive support package includes:

  • Expert technical assistance and troubleshooting
  • Detailed product documentation and user manuals
  • Regular software updates and upgrades
  • Calibration and maintenance services
  • Customization options for specific application needs
NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector 3
Company Profile

JINSP Company Limited ("JINSP") is a leading supplier with over 17 years of experience in spectral detection technologies including Raman, FT-IR, and LIBS. Our patented technologies have received numerous awards including the Geneva International Invention Award and China Patent Excellence Award.

JINSP has participated in drafting international and national standards including IEC 63085 and GB/T standards for Raman spectroscopy applications.

NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector 4 NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector 5 NIR Spectrometer Module 256 Pixels 900nm -1700nm Wavelength Range With Trusted InGaAs Detector 6
Frequently Asked Questions
Q: Is this spectrometer easy to operate for first-time users?
A: We provide English manuals and instructional videos, along with professional technical operation meetings with our technicians.
Q: Do you offer operation training?
A: Yes, we offer training at our factory or can send engineers to your location for installation, training, debugging, and maintenance support.
Q: How can I get the best price quickly?
A: Please provide detailed specifications (wavelength, detector type, effective pixels, focal length, etc.) in your inquiry for an accurate quotation.
Q: What if I encounter problems with the spectrometer?
A: The product comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.
Q: What payment methods do you accept?
A: We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
