Highly Sensitive 1700nm Near-infrared Fiber Spectrometer NIR Analyzer For Industrial Applications
Product Specifications
| Attribute |
Value |
| Effective pixels |
128 (256 optional) |
| Cell size |
50μm*250μm |
| Sensitive area |
6.4mm*0.25mm |
| Data Output Interface |
USB2.0, UART |
| Wavelength Accuracy |
±0.3 nm |
| Measurement Range |
900-1700 nm |
| Spectral Resolution |
0.1 nm |
| Integration Time |
1 ms - 10 s |
High-Performance Near-infrared Fiber Modular Spectrometer

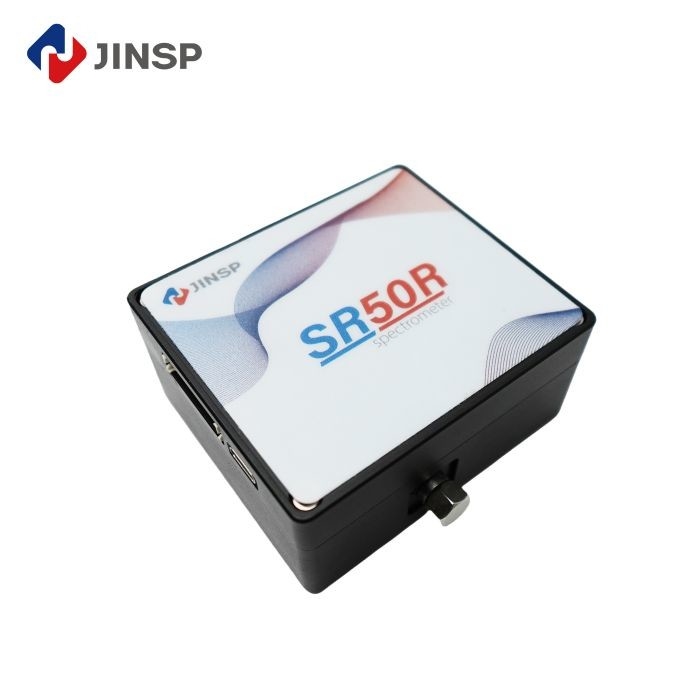

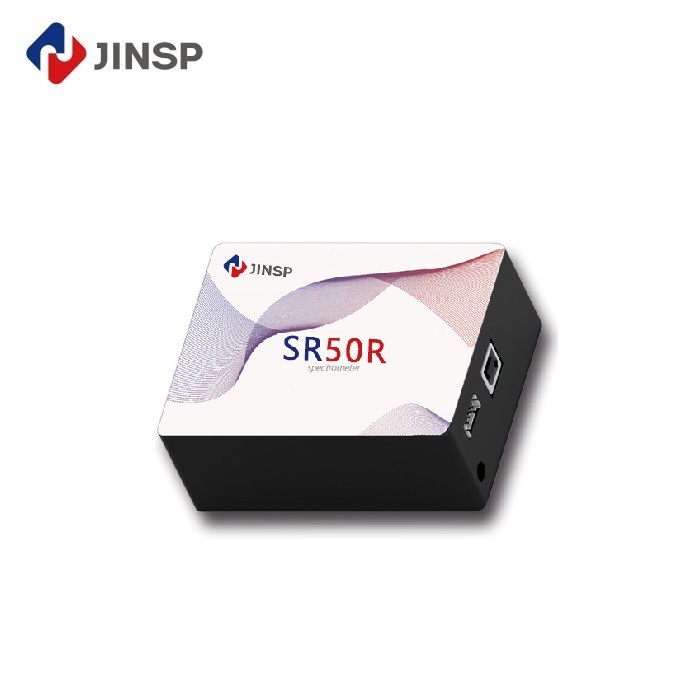

The JINSP SR50R17 represents a compact and economical solution for 900nm to 1700nm near-infrared spectroscopy, boasting a non-cooled InGaAs sensor that delivers exceptional sensitivity and resolution. Complete with a light source, optical fiber, and test holder, it is ideal for applications involving the measurement of near-infrared absorption, reflectance, and transmission to assess the optical characteristics of materials, including their absorption, scattering, and transmission properties, as well as for evaluating material quality and performance.
Technical Parameters
| Parameter |
Value |
| Detector Type |
Linear array InGaAs |
| Effective Pixel |
128 (256 optional) |
| Pixel Size |
50μm*250μm |
| Sensing Area |
6.4mm*0.25mm |
| Wavelength Range |
900nm-1700nm |
| Optical Resolution |
6.5nm (@25μm) |
| Entrance Slit Width |
5μm, 10μm, 25μm, 50μm (customizable) |
| Incident Light Interface |
SMA905 fiber interface, free space |
| Integration Time |
1ms-5s |
| Data Output Interface |
USB2.0, UART |
| ADC Bit Depth |
16-bit |
| Power Supply |
5V |
| Operating Current |
<1A |
| Operating Temperature |
10°C~40°C |
| Storage Temperature |
-20°C~60°C |
| Operating Humidity |
<90%RH (no condensation) |
| Dimensions |
77mm*67mm*36mm |
| Weight |
0.4kg |
Technical Features
- Compact and lightweight design facilitates easy transportation and handling
- Features a gold-plated lens for superior near-infrared reflectivity, ensuring precision and dependability
- Adaptable for use with USB or UART interfaces to transmit spectral data, streamlining integration with diverse systems and gadgets
Typical Applications
- Moisture content measurement, waste water testing
- Detection of substances such as fat, oil, protein, fiber etc.
- Grain and fodder quality testing
- Measurement of pharmaceutical mixture components
Support and Services
The Near infrared spectrometer provides high-performance spectral measurements in a portable and affordable package. Our product technical support and services include:
- Expert technical assistance and troubleshooting
- Comprehensive product documentation and user manuals
- Software updates and upgrades
Company Profile
JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology. As a leading supplier of spectroscopic technology, JINSP Technology offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, customs, and fiber optic spectrometers. Our products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.
Frequently Asked Questions
Q1: This is the first time I use, is it easy to operate?
A1: We will send you manual and guide video in English, it can teach you how to operate the spectrometer. Also our technicians will offer professional technical operation meetings.
Q2: Can you offer a operation training?
A2: Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support (installation, training, debugging, maintenance).
Q3: How to receive a best price in the shortest time?
A3: When you send us an inquiry, please kindly offer details with wavelength, detector, effective pixels, focal length and so on. We will send you quotation with details soon to your email.
Q4: If the spectrometer has problem in my place, how could I do?
A4: The spectrometer has one year warranty. If it breaks down, our technician will figure out what the problem maybe, according to client's feedback. We can repair for free within one year warranty.
Q5: Which payment can be acceptable?
A5: We could accept the payment by T/T, Paypal, Western Union, L/C, etc.
