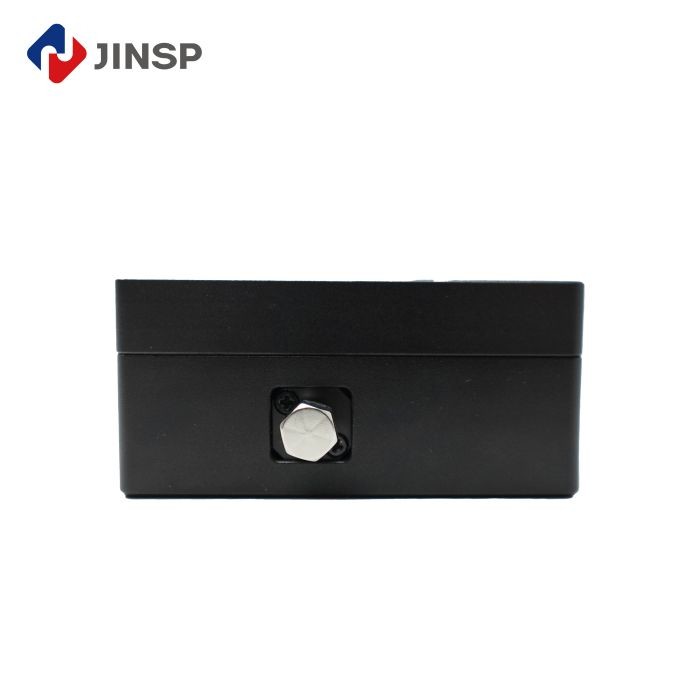

High-Performance Near-infrared Fiber Spectrometer
Modular design for precise spectral measurements in the 900-1700 nm range.
Key Specifications
| Attribute |
Value |
| Effective pixels |
128 (256 optional) |
| Cell size |
50μm × 250μm |
| Sensitive area |
6.4mm × 0.25mm |
| Data Output Interface |
USB2.0, UART |
| Wavelength Accuracy |
±0.3 nm |
| Measurement Range |
900-1700 nm |
| Spectral Resolution |
0.1 nm |
| Integration Time |
1 ms - 10 s |
Product Overview

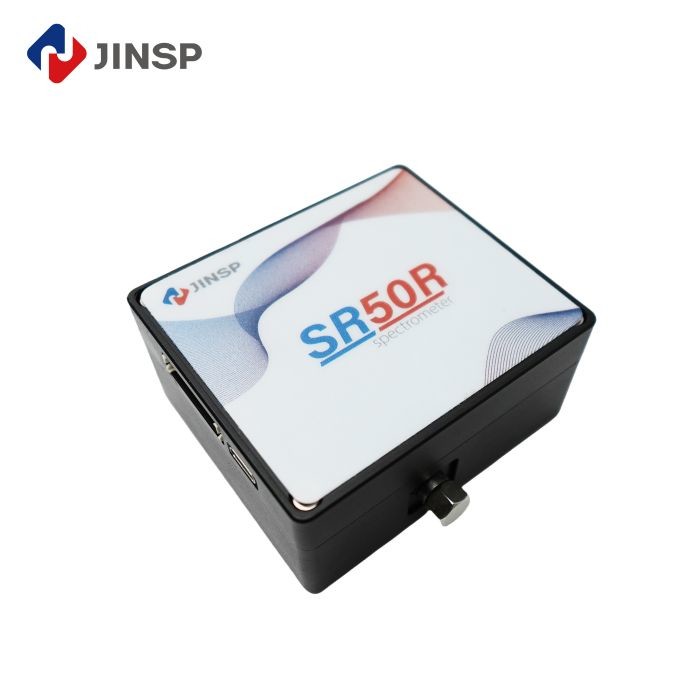

The JINSP SR50R17 is a cost-efficient, compact spectrometer designed for near-infrared analysis (900nm-1700nm). Featuring a high-sensitivity, high-resolution non-cooled InGaAs sensor, this complete solution includes:
- Light source
- Optical fiber
- Test holder
Ideal for absorption, reflectance, and transmission analysis to determine material optical properties and quality assessment.
Technical Specifications
Detector
Type: Linear array InGaAs
Effective Pixel: 128 (256 optional)
Pixel Size: 50μm × 250μm
Sensing Area: 6.4mm × 0.25mm
Optical Parameters
Wavelength Range: 900nm-1700nm
Optical Resolution: 6.5nm (@25μm)
Entrance Slit Width: 5μm, 10μm, 25μm, 50μm (customizable)
Incident Light Interface: SMA905 fiber interface, free space
Electrical Parameters
Integration Time: 1ms-5s
Data Output Interface: USB2.0, UART
ADC Bit Depth: 16-bit
Power Supply: 5V
Operating Current: <1A
Environmental Specifications
Operating Temperature: 10°C~40°C
Storage Temperature: -20°C~60°C
Operating Humidity: <90%RH (no condensation)
Physical Dimensions
Dimensions: 77mm × 67mm × 36mm
Weight: 0.4kg
Technical Support & Services
- Expert technical assistance and troubleshooting
- Comprehensive product documentation and user manuals
- Software updates and upgrades
About JINSP Company
Originating from Tsinghua University with 17 years of spectroscopic technology experience, JINSP is a leading supplier with products used in pharmaceutical, chemical, public security, and customs applications. Our solutions are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.
Frequently Asked Questions
Q: Is this spectrometer easy to operate for first-time users?
A: We provide English manuals and instructional videos, plus our technicians offer professional operation guidance.
Q: Do you offer operation training?
A: Training options include at our factory or on-site support by JINSP engineers for installation, training, debugging, and maintenance.
Q: How can I get the best price quickly?
A: Provide detailed requirements (wavelength, detector, pixels, etc.) in your inquiry for an accurate, prompt quotation.
Q: What if I encounter problems with the spectrometer?
A: The product includes a 1-year warranty with free repairs. Our technicians will diagnose issues based on your feedback.
