High-Performance Near-infrared Fiber Spectrometer NIR Spectrometer For Fast Spectroscopic Analysis

Contact Now

High-Performance Near-infrared Fiber Spectrometer NIR Spectrometer For Fast Spectroscopic Analysis

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Effective Pixels:	128 (256 Optional)	Cell Size:	50μm*250μm
Sensitive Area:	6.4mm*0.25mm	Data Output Interface:	USB2.0, UART
Wavelength Accuracy:	±0.3 Nm	Measurement Range:	900-1700 Nm
Spectral Resolution:	0.1 Nm	Integration Time:	1 Ms - 10 S
Highlight:	High Performance Near-infrared Fiber Spectrometer , Fast Spectroscopic Analysis NIR Spectrometer

Product Description

High-Performance Near-infrared Fiber Spectrometer NIR Spectrometer For Fast Spectroscopic Analysis

Product Overview

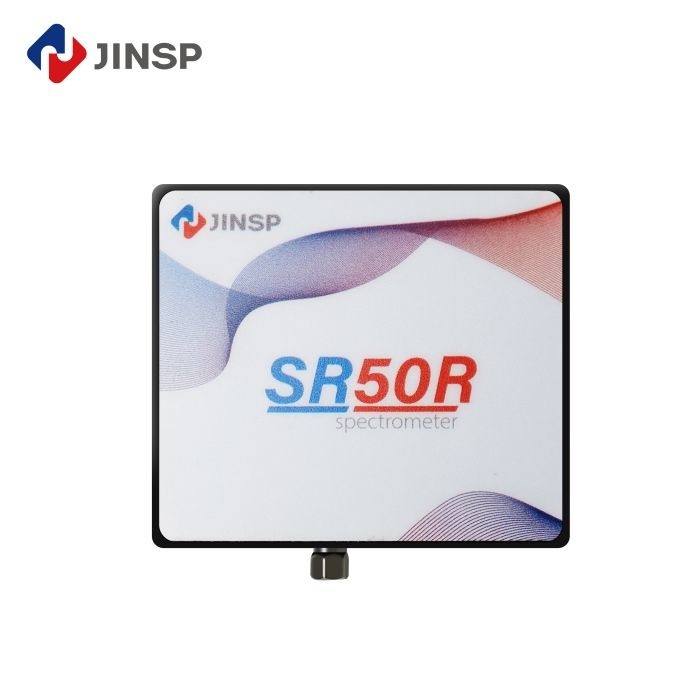

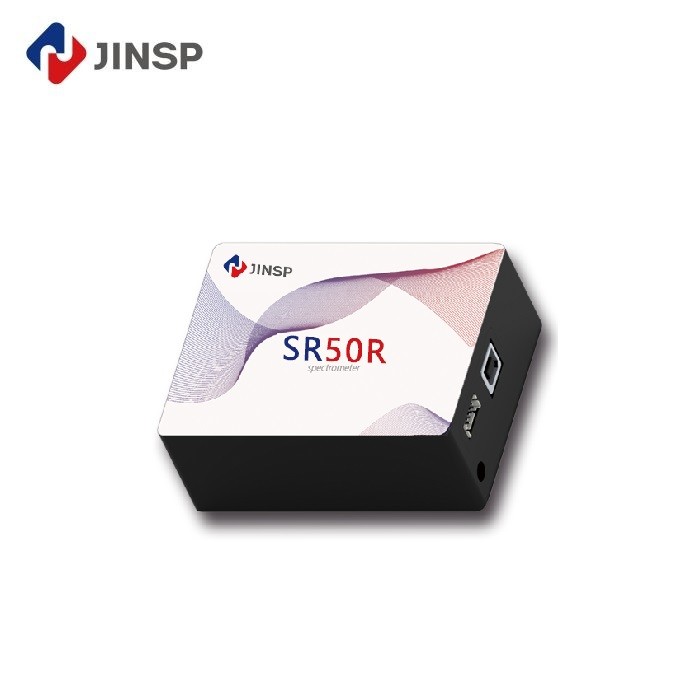

The JINSP SR50R17 spectrometer is a compact, affordable near-infrared spectroscopy solution (900nm-1700nm range) featuring a non-cooled InGaAs sensor with superior sensitivity and resolution. Complete with light source, optical fiber, and test holder, it enables precise analysis of material optical properties including absorption, scattering, and transmission for quality evaluation.

Key Specifications

Attribute	Value
Effective pixels	128 (256 optional)
Cell size	50μm*250μm
Sensitive area	6.4mm*0.25mm
Data Output Interface	USB2.0, UART
Wavelength Accuracy	±0.3 nm
Measurement Range	900-1700 nm
Spectral Resolution	0.1 nm
Integration Time	1 ms - 10 s

Technical Parameters

Product Name	Near Infrared Non-cooled Spectrometer
Wavelength Range	900-1700nm
Chip Type	Linear array InGaAs
Entrance Slit width	5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface	SMA905, free space
Integration Time	1ms-5s
Operating Humidity	<90%RH (no condensation)
Dimensions	77mm67mm36mm
Weight	0.4KG

Applications

Moisture content measurement and waste water testing
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component measurement

Support & Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades

About JINSP

JINSP Company Limited originates from Tsinghua University with 17 years of spectroscopic technology experience. As a leading supplier, we offer over twenty spectroscopic products serving pharmaceutical, chemical, public security, and customs industries. Our products are available nationwide and exported to 30+ countries with 3,000+ units sold.

Frequently Asked Questions

Q: Is this spectrometer easy to operate for first-time users?

A: We provide English manuals and instructional videos, plus professional technical operation meetings with our technicians.

Q: Do you offer operation training?

A: Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.

Q: How can I get the best price quickly?

A: Please provide detailed requirements (wavelength, detector, effective pixels, focal length etc.) in your inquiry for a prompt, detailed quotation.

Q: What if I encounter problems with the spectrometer?

A: The spectrometer includes a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Q: Which payment methods do you accept?

A: We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
