Advanced Near-infrared Fiber Spectrometer For Accurate And Modular Spectral Measurements

Contact Now

Advanced Near-infrared Fiber Spectrometer For Accurate And Modular Spectral Measurements

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Effective Pixels:	128 (256 Optional)	Cell Size:	50μm*250μm
Sensitive Area:	6.4mm*0.25mm	Wavelength Accuracy:	±0.3 Nm
Measurement Range:	900-1700 Nm	Integration Time:	1 Ms - 10 S
Highlight:	Advanced Near-infrared Fiber Spectrometer , Accurate Near-infrared Fiber Spectrometer , Modular Near-infrared Fiber Spectrometer

Product Description

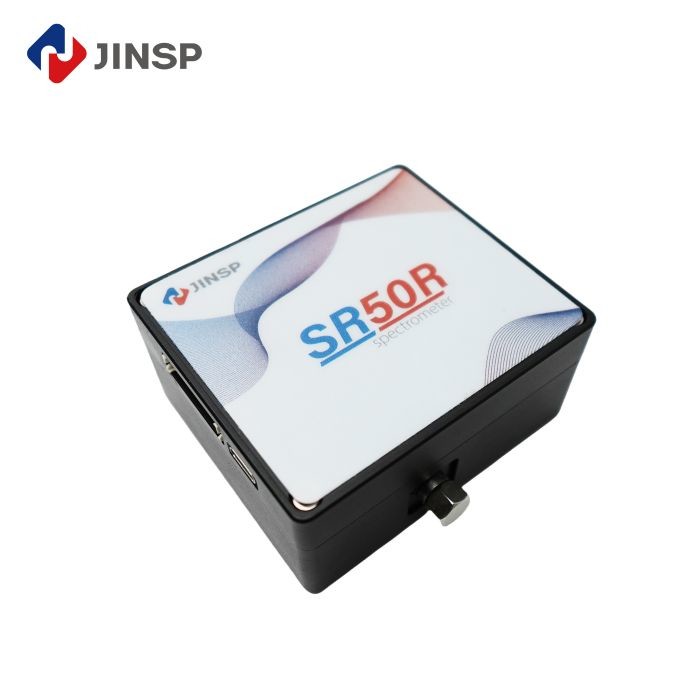

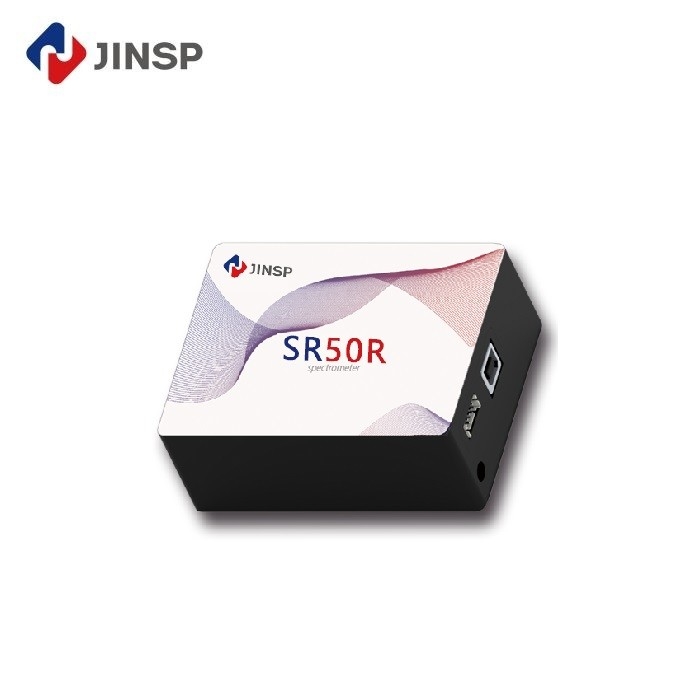

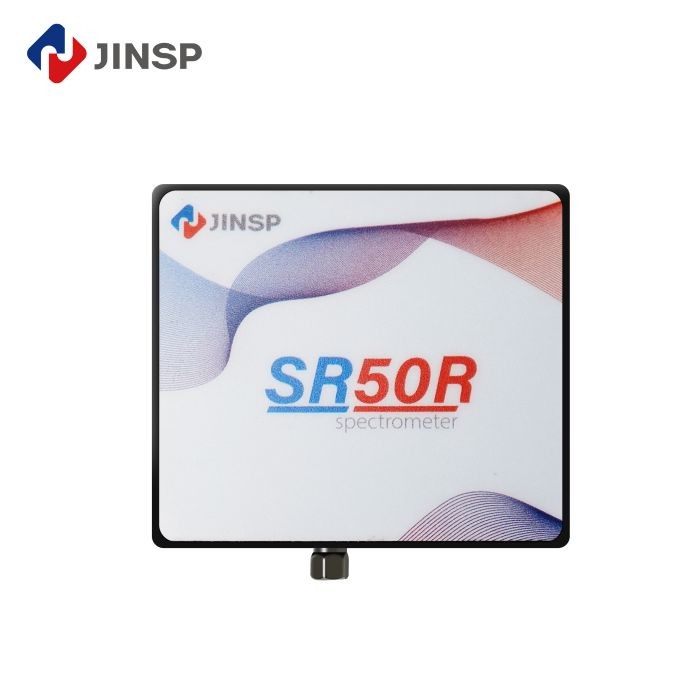

Advanced Near-infrared Fiber Spectrometer

The JINSP SR50R17 is a compact, budget-friendly near-infrared spectrometer that spans the 900nm to 1700nm spectrum, featuring a non-cooled InGaAs sensor with outstanding sensitivity and resolution.

Key Specifications

Attribute	Value
Effective pixels	128 (256 optional)
Cell size	50μm × 250μm
Sensitive area	6.4mm × 0.25mm
Wavelength Accuracy	±0.3 nm
Measurement Range	900-1700 nm
Integration Time	1 ms - 10 s

Product Features

Compact and lightweight design for portability and easy handling
Gold-coated lens ensures high reflectance in the near-infrared range
Compatible with USB and UART interfaces for spectral data transmission
Includes light source, optical fiber, and test holder
Cost-effective solution for industrial NIR spectrometer system integration

Technical Parameters

Product Name	Near Infrared Non-cooled Spectrometer
Wavelength Range	900-1700nm
Chip Type	Linear array InGaAs
Entrance Slit width	5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface	SMA905, free space
Integration Time	1ms-5s
Operating Humidity	<90%RH (no condensation)
Dimensions	77mm × 67mm × 36mm
Weight	0.4KG

Applications

Moisture content measurement and waste water testing
Detection of substances such as fat, oil, protein, and fiber
Grain and fodder quality testing
Measurement of pharmaceutical mixture components

Support and Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With 30+ R&D engineers and over 200 patent applications, our core technologies have reached international leading positions.

We offer over twenty spectroscopic products across various fields, exported to over 30 countries with cumulative sales exceeding 3,000 units. Our customer-centric approach ensures personalized product customization to meet diverse needs.

Frequently Asked Questions

Q: Is this spectrometer easy to operate for first-time users?

A: We provide an English manual and guide video to teach operation. Our technicians also offer professional technical operation meetings.

Q: Do you offer operation training?

A: Your technicians can visit our factory for training, or our engineers can provide local support including installation, training, debugging, and maintenance.

Q: How can I receive the best price quickly?

A: Please provide details about wavelength, detector, effective pixels, and focal length in your inquiry. We will send a detailed quotation promptly.

Q: What if the spectrometer has problems at my location?

A: The spectrometer comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs within warranty.

Q: Which payment methods do you accept?

A: We accept T/T, Paypal, Western Union, L/C, and other payment methods.
