Small Size Near-infrared Fiber Spectrometer Modular Design Industrial NIR Spectrometer

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 30-50working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/70-90 days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: SR50R
Document: Product Brochure PDF

Detail Information

Effective Pixels: 128 (256 Optional) Cell Size: 50μm*250μm
Sensitive Area: 6.4mm*0.25mm Wavelength Accuracy: ±0.3 Nm
Measurement Range: 900-1700 Nm Spectral Resolution: 0.1 Nm
Highlight:

Small Size Near-infrared Fiber Spectrometer

,

Industrial NIR Spectrometer

,

Modular Design NIR Spectrometer

Product Description

Small Size Near-infrared Fiber Spectrometer Modular Design Industrial NIR Spectrometer
Product Overview

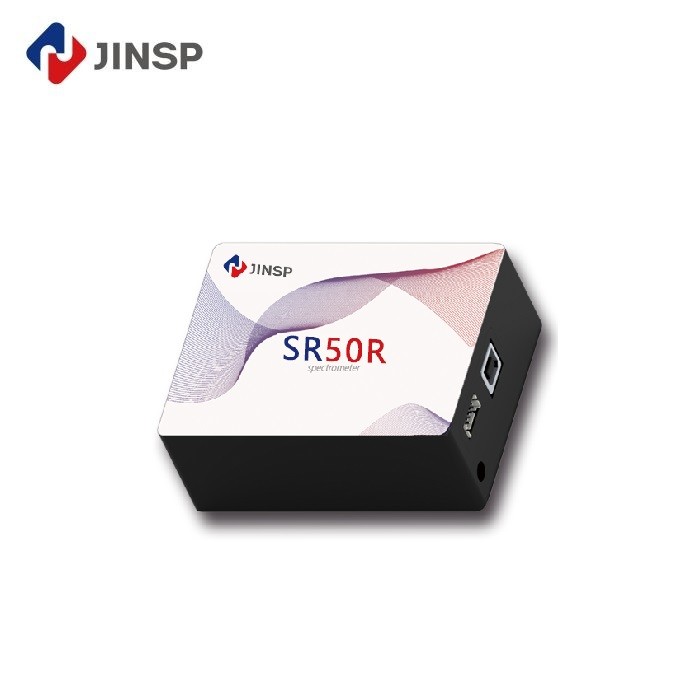

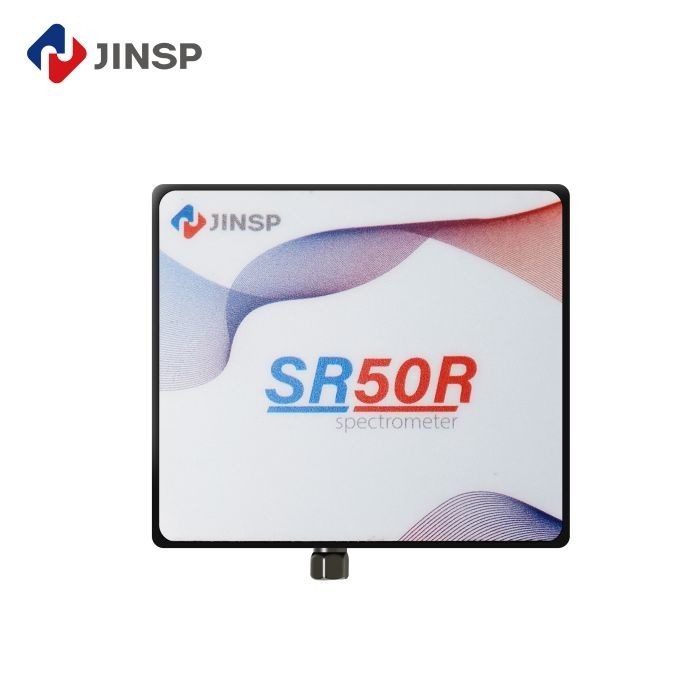

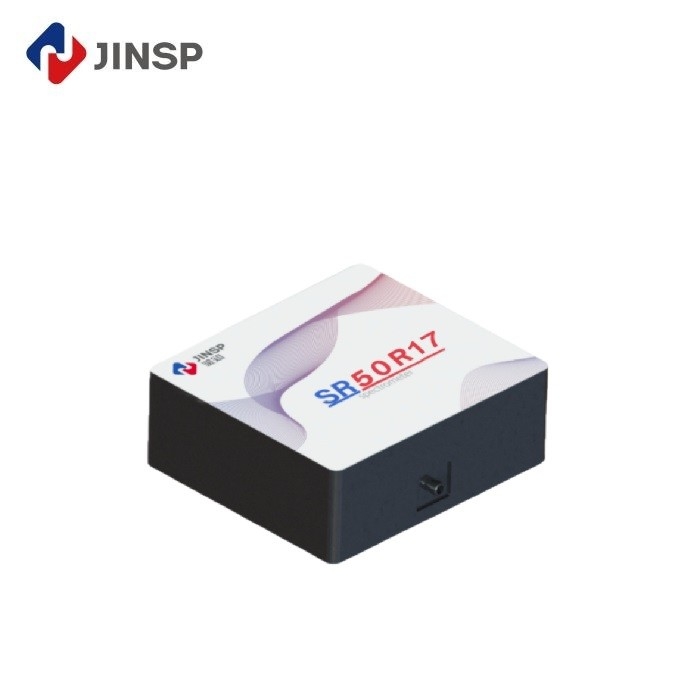

The JINSP SR50R17 spectrometer is a compact and economical near-infrared spectroscopy solution (900-1700nm) featuring a non-cooled InGaAs sensor that delivers high sensitivity and resolution. When combined with a light source, optical fiber, and test holder, it becomes an ideal system for near-infrared absorption, reflectance, and transmission measurements to analyze material optical properties and evaluate quality and performance.

Small Size Near-infrared Fiber Spectrometer Modular Design Industrial NIR Spectrometer 0 Small Size Near-infrared Fiber Spectrometer Modular Design Industrial NIR Spectrometer 1
Key Specifications
Attribute Value
Effective pixels 128 (256 optional)
Cell size 50μm*250μm
Sensitive area 6.4mm*0.25mm
Wavelength Accuracy ±0.3 nm
Measurement Range 900-1700 nm
Spectral Resolution 0.1 nm
Technical Parameters
Product Name Near Infrared Non-cooled Spectrometer
Wavelength Range 900-1700nm
Chip Type Linear array InGaAs
Entrance Slit width 5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface SMA905, free space
Integration Time 1ms-5s
Operating Humidity <90%RH (no condensation)
Dimensions 77mm*67mm*36mm
Weight 0.4KG
Small Size Near-infrared Fiber Spectrometer Modular Design Industrial NIR Spectrometer 2
Key Features
  • Compact and lightweight design for easy portability
  • Gold-coated lens for high near-infrared reflectance and reliable performance
  • USB and UART interfaces for seamless spectral data export and system integration
  • Competitive pricing for industrial NIR spectrometer system integration
Applications
  • Moisture content measurement and waste water testing
  • Detection of substances including fat, oil, protein, and fiber
  • Grain and fodder quality testing
  • Pharmaceutical mixture component measurement
Support & Services
  • Expert technical assistance and troubleshooting
  • Comprehensive product documentation and user manuals
  • Software updates and upgrades
Small Size Near-infrared Fiber Spectrometer Modular Design Industrial NIR Spectrometer 3
About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With 30+ R&D engineers (including 4 Ph.D. holders) and over 200 patent applications, our core technologies have reached international leading levels.

We offer more than twenty spectroscopic products serving pharmaceutical, chemical, public security, and customs industries, with products exported to over 30 countries and cumulative sales exceeding 3,000 units.

Small Size Near-infrared Fiber Spectrometer Modular Design Industrial NIR Spectrometer 4 Small Size Near-infrared Fiber Spectrometer Modular Design Industrial NIR Spectrometer 5
Frequently Asked Questions
Q: Is this spectrometer easy to operate for first-time users?
A: We provide English manuals and instructional videos, along with professional technical operation meetings conducted by our technicians.
Q: Do you offer operation training?
A: Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.
Q: How can I receive the best price quickly?
A: Please provide detailed specifications (wavelength, detector, effective pixels, focal length, etc.) in your inquiry for a prompt, detailed quotation.
Q: What if the spectrometer has problems during operation?
A: The spectrometer comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.
Q: Which payment methods do you accept?
A: We accept T/T, Paypal, Western Union, L/C, and other payment methods.
