Modular Near-infrared Fiber Spectrometer Compact 900nm To 1700nm For Spectral Analysis

Contact Now

Modular Near-infrared Fiber Spectrometer Compact 900nm To 1700nm For Spectral Analysis

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Effective Pixels:	128 (256 Optional)	Cell Size:	50μm*250μm
Sensitive Area:	6.4mm*0.25mm	Data Output Interface:	USB2.0, UART
Wavelength Accuracy:	±0.3 Nm	Measurement Range:	900-1700 Nm
Spectral Resolution:	0.1 Nm	Integration Time:	1 Ms - 10 S
Highlight:	Spectral Analysis Near-infrared Fiber Spectrometer , Modular Near-infrared Fiber Spectrometer , Compact near ir spectrophotometer

Product Description

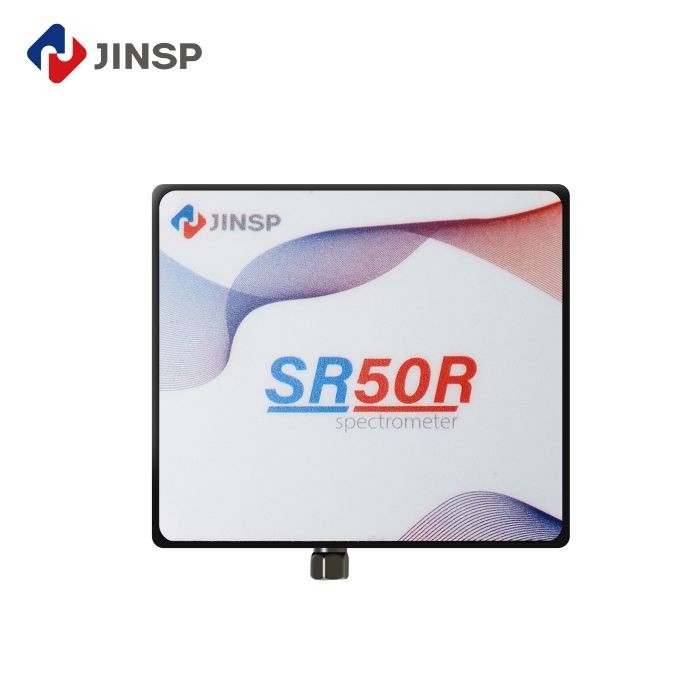

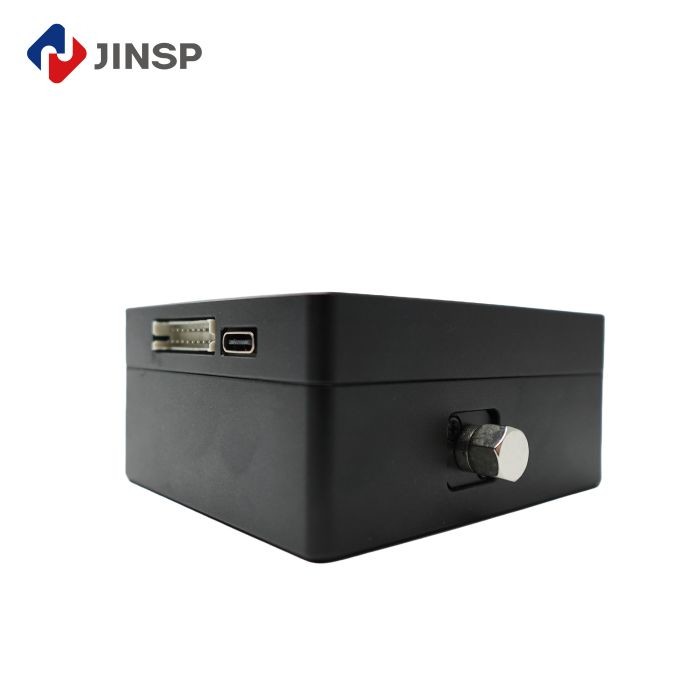

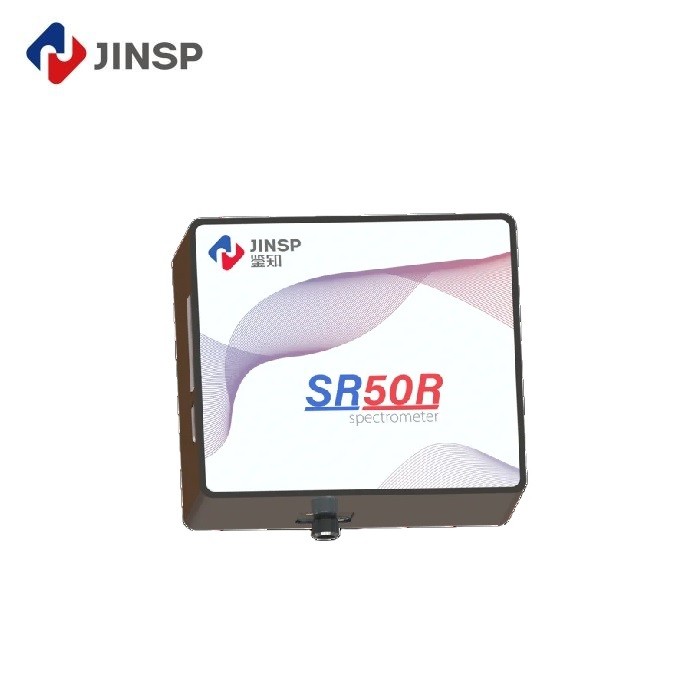

Modular Near-infrared Fiber Spectrometer (900nm-1700nm)

The JINSP SR50R17 spectrometer provides a compact, economical solution for near-infrared spectroscopy with exceptional sensitivity and high resolution for precise spectral analysis.

Key Specifications

Attribute	Value
Effective pixels	128 (256 optional)
Cell size	50μm*250μm
Sensitive area	6.4mm*0.25mm
Data Output Interface	USB2.0, UART
Wavelength Accuracy	±0.3 nm
Measurement Range	900-1700 nm
Spectral Resolution	0.1 nm
Integration Time	1 ms - 10 s

Technical Parameters

Product Name	Near Infrared Non-cooled Spectrometer
Wavelength Range	900-1700nm
Chip Type	Linear array InGaAs
Entrance Slit width	5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface	SMA905, free space
Integration Time	1ms-5s
Operating Humidity	<90%RH (no condensation)
Dimensions	77mm67mm36mm
Weight	0.4KG

Key Features

Compact and lightweight design for portability
Gold-coated lens for high near-infrared reflectance
Versatile connectivity with USB and UART interfaces
Complete package includes light source, optical fiber, and test holder
Non-cooled InGaAs sensor for exceptional sensitivity

Applications

Moisture content measurement
Waste water testing
Detection of substances (fat, oil, protein, fiber)
Grain and fodder quality testing
Pharmaceutical mixture component measurement

Support & Services

Expert technical assistance and troubleshooting
Comprehensive product documentation and user manuals
Software updates and upgrades
On-site training and support available

Frequently Asked Questions

Is the spectrometer easy to operate for first-time users?

We provide English manuals and guide videos, along with professional technical operation meetings with our technicians.

Do you offer operation training?

Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.

How can I get the best price quickly?

Please provide details about your requirements (wavelength, detector, effective pixels, focal length etc.) when inquiring, and we will send a detailed quotation promptly.

What if I encounter problems with the spectrometer?

The spectrometer comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Which payment methods do you accept?

We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.

About JINSP

JINSP Company Limited originates from Tsinghua University with 17 years of experience in spectroscopic technology development. As a leading supplier, we offer over twenty spectroscopic products serving pharmaceutical, chemical, public security, customs, and fiber optic industries. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.
