Highly Sensitive 1700nm Near-infrared Fiber Spectrometer for Industrial Applications

Contact Now

Highly Sensitive 1700nm Near-infrared Fiber Spectrometer for Industrial Applications

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	30-50working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR50R
Document:	Product Brochure PDF

Detail Information
Effective Pixels:	128 (256 Optional)	Cell Size:	50μm*250μm
Sensitive Area:	6.4mm*0.25mm	Data Output Interface:	USB2.0, UART
Wavelength Accuracy:	±0.3 Nm	Measurement Range:	900-1700 Nm
Spectral Resolution:	0.1 Nm	Integration Time:	1 Ms - 10 S
Highlight:	1700nm near infrared spectrometer , Near-infrared Fiber Spectrometer , Highly Sensitive near infrared spectrometer

Product Description

Highly Sensitive 1700nm Near-infrared Fiber Spectrometer for Industrial Applications

Key Specifications

Attribute	Value
Effective pixels	128 (256 optional)
Cell size	50μm*250μm
Sensitive area	6.4mm*0.25mm
Data Output Interface	USB2.0, UART
Wavelength Accuracy	±0.3 nm
Measurement Range	900-1700 nm
Spectral Resolution	0.1 nm
Integration Time	1 ms - 10 s

Product Overview

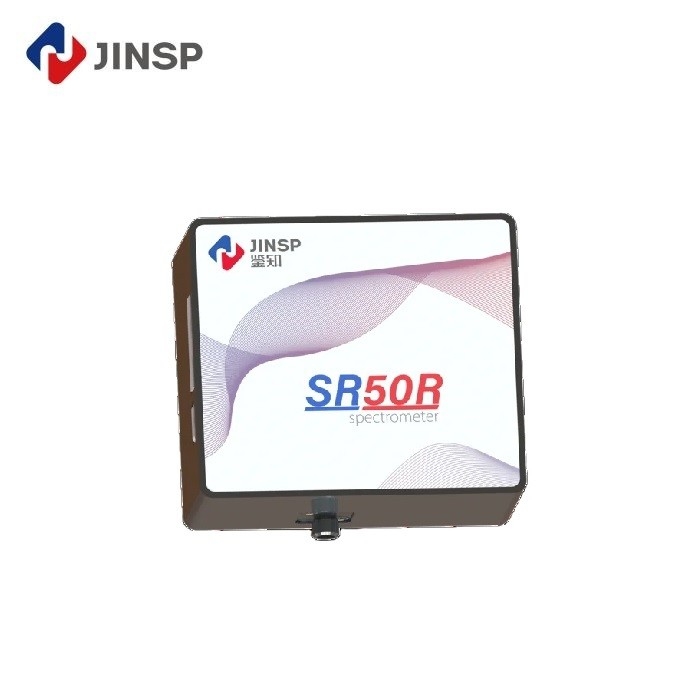

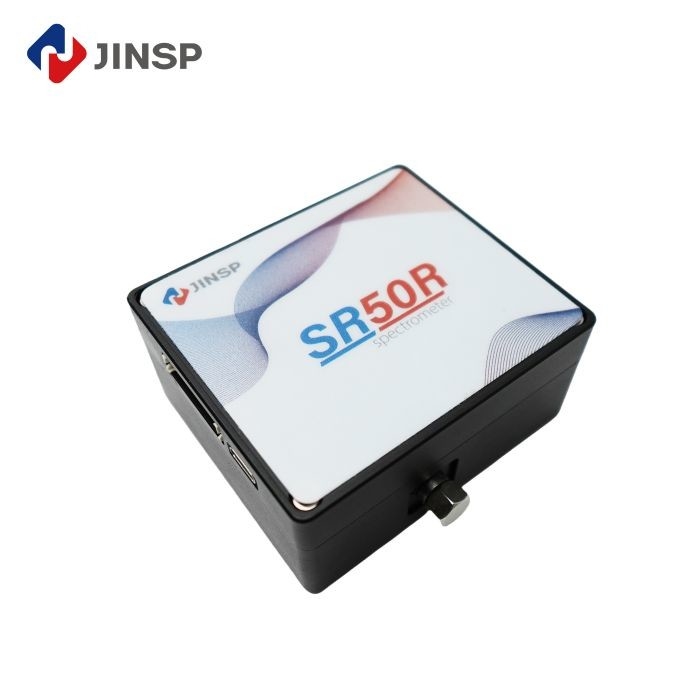

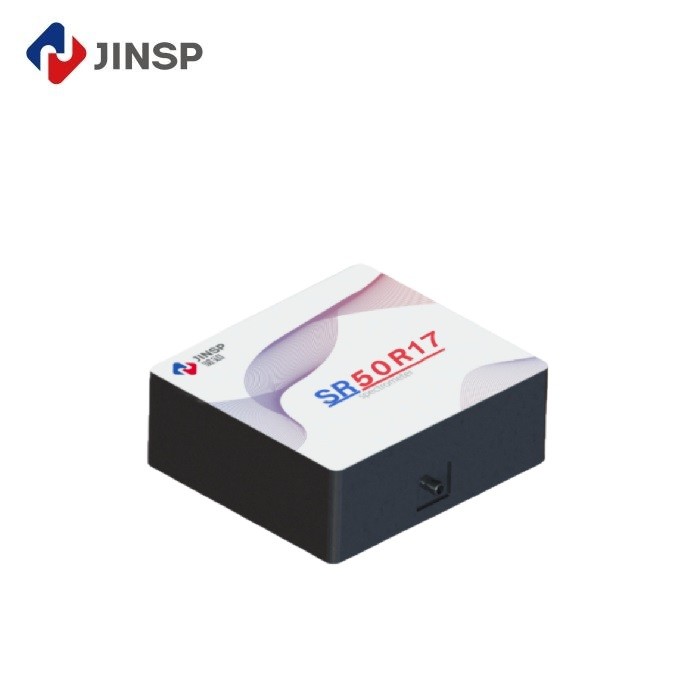

The JINSP SR50R17 is a compact, cost-efficient near-infrared spectrometer that operates in the 900nm to 1700nm range, featuring a non-cooled InGaAs sensor with high sensitivity and resolution. It comes complete with light source, optical fiber, and test holder, making it ideal for near-infrared absorption, reflectance, and transmission measurements.

Technical Parameters

Product Name	Near Infrared Non-cooled Spectrometer
Wavelength Range	900-1700nm
Chip Type	Linear array InGaAs
Entrance Slit width	5μm, 10μm, 25μm, 50μm (customizable)
Incident Light interface	SMA905, free space
Integration Time	1ms-5s
Operating Humidity	<90%RH (no condensation)
Dimensions	77mm67mm36mm
Weight	0.4KG

Key Features

Compact and lightweight design for easy portability
Gold-coated lens for high reflectance in near-infrared range
USB or UART interface for flexible system integration
High sensitivity InGaAs sensor for precise measurements
Complete package including light source and accessories

Industrial Applications

Moisture content measurement and waste water testing
Detection of substances including fat, oil, protein, and fiber
Grain and fodder quality analysis
Pharmaceutical mixture component measurement

About JINSP Technology

JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology. As a leading supplier, we offer over twenty spectroscopic products across pharmaceutical, chemical, public security, and customs applications. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Is the spectrometer easy to operate for first-time users?

We provide an English manual and instructional video to guide you through operation. Our technicians also offer professional technical support meetings.

Do you offer operation training?

Your technicians can receive training at our factory, or our engineers can provide on-site support including installation, training, debugging, and maintenance.

How can I get the best price quickly?

Please include details about wavelength, detector type, effective pixels, and focal length in your inquiry. We will promptly send a detailed quotation to your email.

What if I encounter problems with the spectrometer?

The spectrometer comes with a one-year warranty. Our technicians will diagnose any issues based on your feedback and provide free repairs during the warranty period.

Which payment methods do you accept?

We accept T/T, Paypal, Western Union, L/C, and other standard payment methods.
