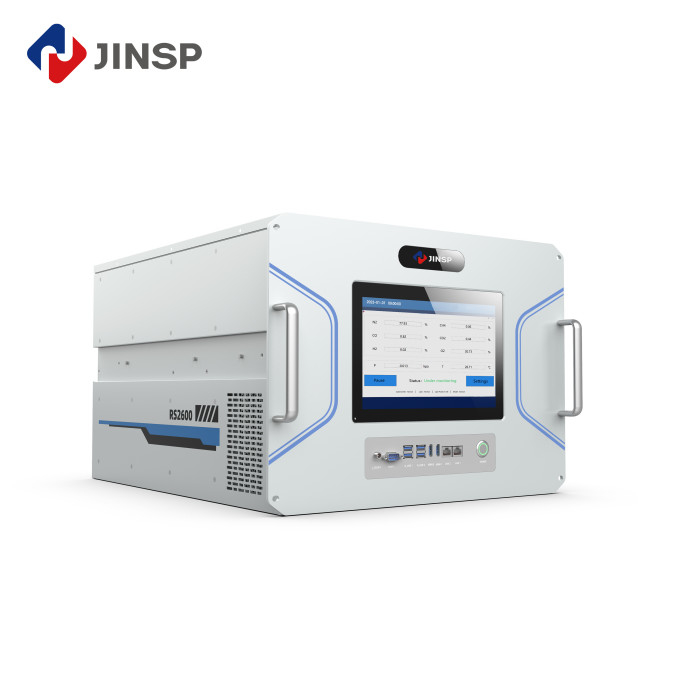

RS2600 Raman Spectroscopy Based Multi-gas Analyzer
Product Overview
The RS2600 gas analyzer revolutionizes industrial monitoring with its universal detection capability spanning over 500 gases (excluding noble gases). Featuring real-time, non-destructive analysis and pressure-independent quantification, it delivers rapid results within seconds across an unmatched ppm to 100% detection range. Its simultaneous multi-component analysis ensures continuous process optimization for alkane gases (CH₄, C₂H₆, C₃H₈) without interrupting operations.
Key Specifications
| Model Name |
RS2600 Multi-gas Analyzer |
| Laser excitation wavelength |
532 ± 0.5 nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Analysis time |
2 seconds |
| Detection Limit |
ppm level |
| Measurement Time |
Real-time |
Technical Specifications
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Measurement uncertainty |
≤0.2% |
| Spectral resolution |
≤8 cm-1 at full spectral range |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Input voltage |
100~240 VAC,50~60 Hz |
| Sample gas temperature |
-50 ~ 40 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Unit dimensions |
485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
| Weight |
40 kg |
Technical Highlights
- Non-destructive gas analysis: Analytes including homonuclear diatomic gases(F2, Cl2, etc.) and isotopic gases (H2, D2, T2, etc.)
- Short detection time: Data acquired in seconds
- Minimal maintenance: Resistance to high pressure, direct detection without consumables (chromatographic column or carrier gas)
- Wide detection range: LOD at ppm level, detection range up to 100%
Advanced Analysis Features
By constructing quantitative models of multiple standard curves and combining them with chemometric methods, the correlation between spectral signals and the content of various component substances can be effectively established. This comprehensive method improves analysis accuracy while enabling simultaneous processing of multiple chemical components.
The system maintains result accuracy even with sample gas pressure changes or testing condition fluctuations, thanks to its high stability and robustness that ensures consistent analysis in any environment.
Applications
1. Monitoring of F2, N2, HF and other components in the fluorination process
2. Quantitative analysis of different elements in petrochemical natural gas
Effective identification and quantification of various components in natural gas mixtures within 2 seconds, such as alkanes, alkenes, alkynes, etc.
3. Detection of components in reaction and emitted gases of fluorine materials
4. Detection of impurity gases and electronic special gases
About JINSP Company Limited
JINSP ("JINSP") is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With core technologies at international leading levels and over 200 patent applications, JINSP offers more than twenty spectroscopic products across pharmaceutical, chemical, public security, and customs fields.
Products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units. Supported by 30+ R&D engineers including 4 Ph.D. holders, JINSP specializes in personalized product customization to meet diverse customer needs.
Frequently Asked Questions
Q: This is the first time I use, is it easy to operate?
A: We provide an English manual and guide video, along with professional technical operation meetings with our technicians.
Q: Can you offer operation training?
A: Your technicians can receive training at our factory, or our engineers can provide local support for installation, training, debugging, and maintenance.
Q: How to receive the best price in the shortest time?
A: Please provide detailed specifications (wavelength, detector, effective pixels, focal length, etc.) in your inquiry for a prompt quotation.
Q: Do you have MOQ requirement of each order?
A: No minimum order quantity - we support orders for even 1 unit.
Q: What is the product warranty?
A: All products include a 1-year warranty, with options to extend the warranty period (contact sales for details).
