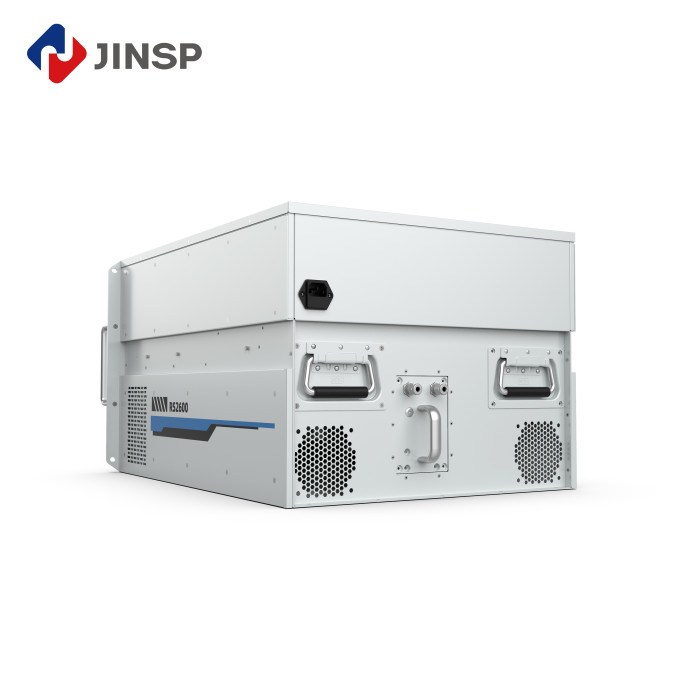

RS2600 Raman Spectroscopy Simultaneous Multi-gas Analyzer for Metallurgical Industry Gases
Product Overview
Transform metal production with RS2600's simultaneous analysis of N₂, H₂, CO, and other critical furnace gases. This in-situ analyzer's pressure-immune technology maintains accuracy despite turbulent process conditions, while its 500+ gas library covers all non-inert species.
Key Attributes
| Attribute |
Value |
| Model Name |
RS2600 Multi-gas Analyzer |
| Laser excitation wavelength |
532 ± 0.5 nm |
| Spectral coverage |
200 ~ 4200 cm-1 |
| Analysis time |
2 seconds |
| Detection Limit |
ppm level |
| Measurement Time |
Real-time |
Technical Specifications
| Components |
N2, H2, O2, CO, CO2, H2S, CmHn, etc. |
| Measurement uncertainty |
≤0.2% |
| Spectral resolution |
≤8 cm-1 at full spectral range |
| Air circuit interface |
6 mm standard tube fitting (3 mm, 1/8'', and 1/4'' are optional) |
| Input voltage |
100~240 VAC,50~60 Hz |
| Sample gas temperature |
-50 ~ 40 ºC |
| Sample gas pressure |
＜1.0 MPa |
| Unit dimensions |
485 mm (Width) × 350 mm (Height) × 600 mm (Depth) |
| Weight |
40 kg |
Technical Highlights
- Non-destructive gas analysis including homonuclear diatomic gases (F2, Cl2, etc.) and isotopic gases (H2, D2, T2, etc.)
- Short detection time: Data acquired in seconds
- Minimal maintenance: Resistance to high pressure, direct detection without consumables
- Wide detection range: LOD at ppm level, detection range up to 100%
Applications
1. Monitoring of F2, N2, HF and other components in the fluorination process
2. Quantitative analysis of different elements in petrochemical natural gas
Effective identification and quantification of various components in natural gas mixtures within 2 seconds, such as alkanes, alkenes, alkynes, etc.
3. Detection of components in reaction and emitted gases of fluorine materials
4. Detection of impurity gases and electronic special gases
Advanced Features
By constructing quantitative models of multiple standard curves and combining them with chemometric methods, the correlation between spectral signals and the content of various component substances can be effectively established. This comprehensive method improves analysis accuracy while enabling simultaneous processing of multiple chemical components.
The system maintains result accuracy even with changes in sample gas pressure or testing condition fluctuations, thanks to its high stability and robustness.
About JINSP Company Limited
JINSP is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With 200+ patent applications and core technologies at international leading levels, JINSP offers over twenty spectroscopic products across various industries.
Products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units. JINSP's team includes 30+ R&D engineers (including 4 Ph.D.) specializing in personalized product customization.
Frequently Asked Questions
Q: This is the first time I use, is it easy to operate?
A: We provide an English manual and guide video, along with professional technical operation meetings with our technicians.
Q: Can you offer operation training?
A: Your technicians can receive training at our factory or we can provide local support including installation, training, debugging, and maintenance.
Q: How to receive the best price in the shortest time?
A: Please provide detailed specifications (wavelength, detector, effective pixels, focal length, etc.) in your inquiry for a prompt quotation.
Q: Do you have MOQ requirement of each order?
A: No minimum order quantity - we support orders for even 1 unit.
Q: What is the product warranty?
A: All products come with 1 year warranty, extendable for additional cost. Contact our sales team for details.
