Real Time Monitoring Raman Spectroscopy Analyzer for liquid solution reactions

The RS2100 Raman system combines 1064nm excitation with ruggedized design for uncompromised real-time monitoring in aggressive chemical environments. This platform enables researchers to capture kinetic data streams without sample extraction, delivering actionable insights within 15-second intervals while preserving reaction authenticity.

• Fast: Results provided within seconds
• In-situ: No sampling required
• Universal: Multi-specification detection accessories compatible with different reactors
• Intuitive: Real-time display of multi-component trend changes
• Intelligent: Supports self-optimizing offline modeling and fully automatic online modeling

• Online Monitoring: Continuous real-time collection of single-channel signals, providing real-time substance content and trend changes, enabling intelligent analysis of unknown components during the reaction process
• Data Analysis: Capable of processing data through smoothing, peak finding, noise reduction, baseline subtraction, difference spectra, etc
• Model Establishment: Establishes quantitative models using known content samples and automatically builds quantitative models based on real-time data

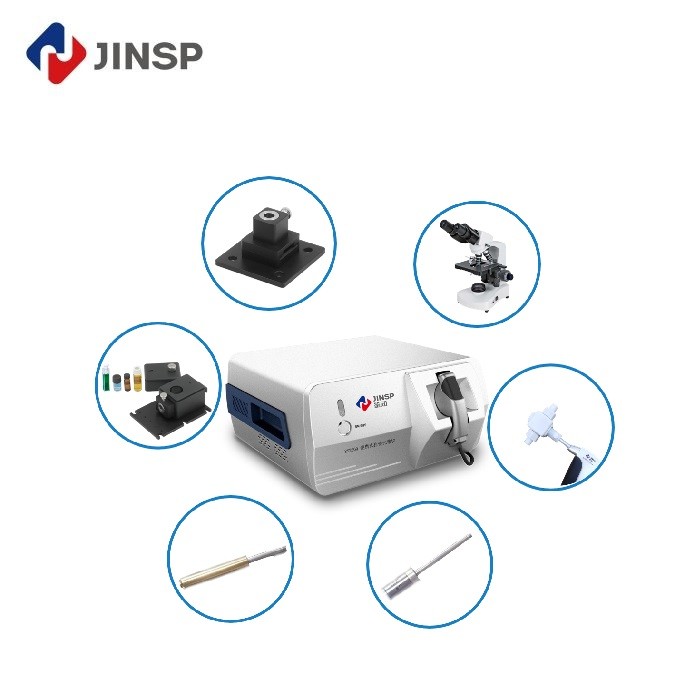

• 1pc 1.3 m non-immersed fiber optic probe (PR100)
• 1pc 5 m immersed probe (PR200-HSGL)

1. Immersed long probe that goes deep down to the liquid level of the reaction system
2. Flow cell connected to a bypass probe for online monitoring (suitable for microchannel reactors)
3. Optical probe directly aligned with the side window of the reaction vessel

• Li-ion battery industry
• Research on the synthesis process of bis(fluorosulfonyl)amide
• Biopharmaceutical industry
• Drug crystal form research and consistency evaluation
• Quality Control in Biofermentation Engineering
• Fine chemical industry
• Process control of bioenzyme catalytic reactions

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With core technologies at international leading levels and over 200 patent applications, JINSP offers more than twenty spectroscopic products exported to over 30 countries.

The company benefits from 30+ R&D engineers, including 4 Ph.D. holders, specializing in personalized product customization to meet diverse customer needs with professional technology and innovative design capabilities.
