Simultaneous multi-reactor monitoring with Raman Spectroscopy Analyzer 50W Power Consumption

Contact Now

Simultaneous multi-reactor monitoring with Raman Spectroscopy Analyzer 50W Power Consumption

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-80 working days
Payment Terms :	TT	Supply Ability :	80 PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	RS2100
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1064nm	Wavelength Accuracy:	0.2nm
Wavelength Stability:	0.01nm	Connectivity Interface:	USB 2.0
Output Data Format:	Spc Standard Spectrum, Prn, Txt And Other Formats Are Optional	Communication Protocols:	Modbus
Power Supply:	100 ~ 240 VAC，50 ~ 60 Hz	Operating Temperature:	0 ~ 40 ℃
Power Consumption:	50W	Detection Accuracy:	0.5%
Highlight:	Simultaneous Raman Analyzer , Multi-reactor Raman Analyzer , Raman Spectroscopy Analyzer 50W

Product Description

Simultaneous Multi-Reactor Monitoring with Raman Spectroscopy Analyzer (50W Power Consumption)

Key Specifications

Attribute	Value
Laser wavelength	1064nm
Wavelength accuracy	0.2nm
Wavelength stability	0.01nm
Connectivity interface	USB 2.0
Output Data format	spc standard spectrum, prn, txt and other formats
Communication protocols	Modbus
Power supply	100 ~ 240 VAC，50 ~ 60 Hz
Operating temperature	0 ~ 40 ℃
Power consumption	50W
Detection Accuracy	0.5%

Product Overview

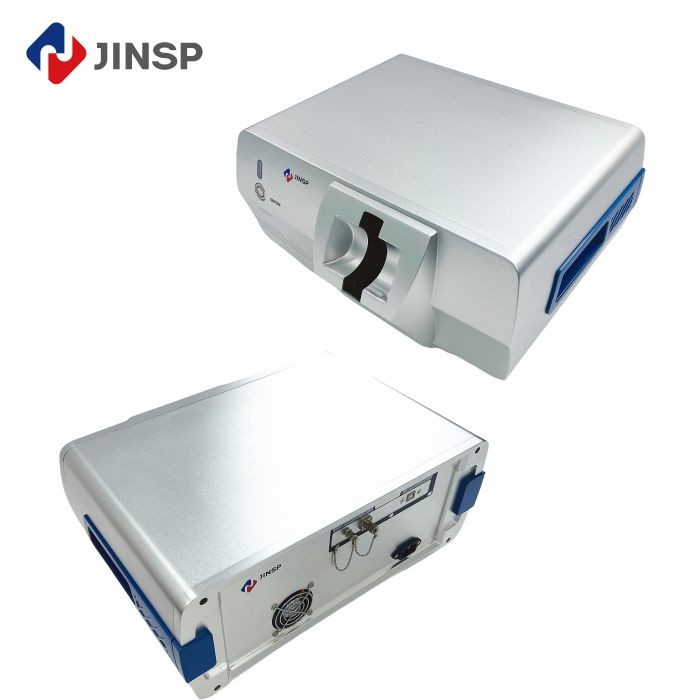

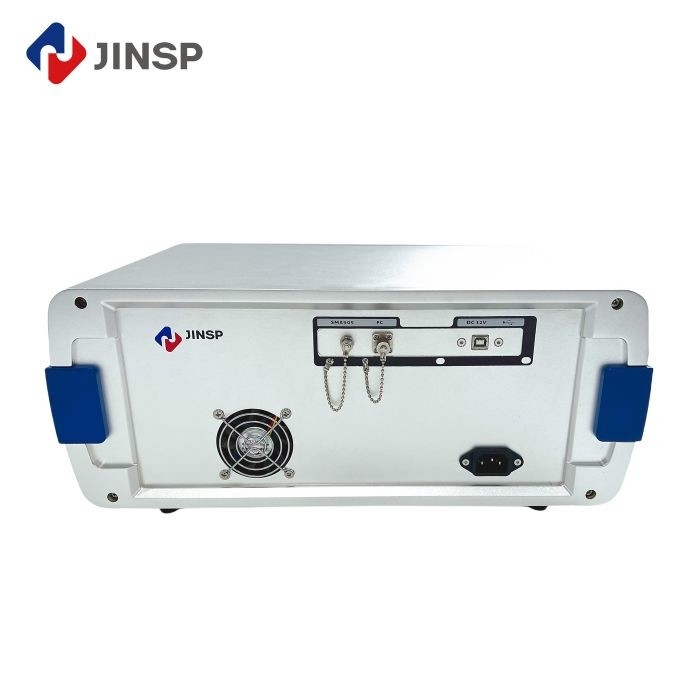

The RS2100 Raman Analyzer is a PAT 4.0 compliant system combining industrial IoT connectivity with robust spectroscopy capabilities. Its modular design supports simultaneous monitoring of up to 8 reactors through multiplexed fiber arrays, with proprietary laser stabilization ensuring <0.1cm⁻¹ wavelength drift across 10,000 hours of operation.

Real-Time Process Advantages

Streams concentration heatmaps to process control systems every 5 seconds
Predictive phase transition alerts help prevent costly catalyst deactivation events
Enables smart manufacturing through immediate spectral feedback

Technical Parameters

Parameter	Specification
Product	Online Raman Analyzer
Measurement Type	Raman Spectrometer
Sample Type	Liquid
Detection Channels	1 single channel
Standard Probes	1pc 1.3m non-immersed fiber optic probe (PR100) and 1pc 5m immersed probe (PR200-HSGL)
Dimensions	300×356×185mm
Net Weight	≤10 kg
Certifications	CE, ISO9001

Software Capabilities

Online Monitoring: Continuous real-time collection with intelligent analysis of unknown components
Data Analysis: Smoothing, peak finding, noise reduction, baseline subtraction, and difference spectra
Model Establishment: Automatic quantitative model building based on real-time data

Industrial Applications

Li-ion battery industry
Biopharmaceutical industry (drug crystal research, consistency evaluation)
Fine chemical industry (furfuryl alcohol production, nitrile compound reactions)
Quality control in biofermentation engineering
Ultra-low temperature nitrification reactions
o-Xylene nitration process research

Quality Control in Mass Production

Online monitoring technology enables automated quality control for 100% of batch products through rapid, continuous analysis. This eliminates the quality risks associated with offline testing methods that can only sample a portion of production.

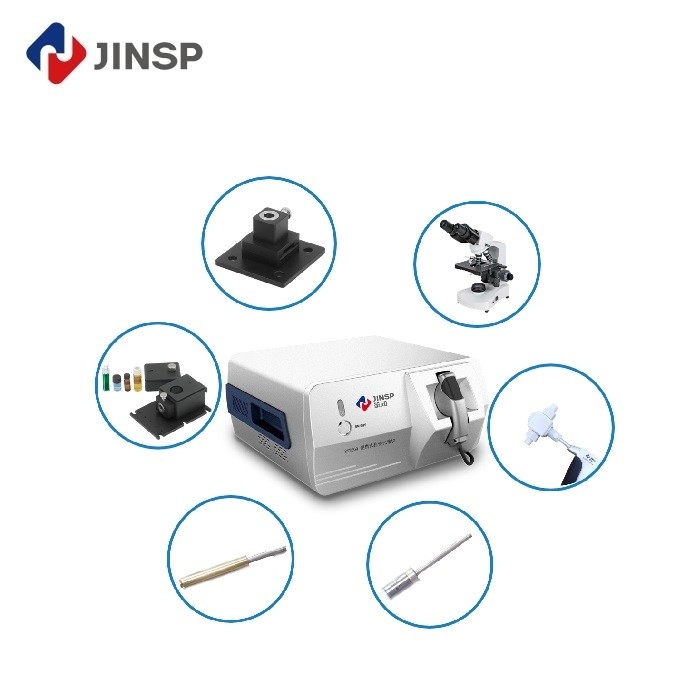

Operation Modes

Immersed Probe Mode: Long probe extends to liquid level for direct monitoring
Flow Cell Mode: Bypass probe connects for online monitoring (ideal for microchannel reactors)
Optical Alignment Mode: Probe directly aligned with reaction vessel side window

About JINSP Company Limited

With 17+ years of experience in spectral detection technology, JINSP specializes in Raman, FT-IR, and LIBS technologies. Our core technologies are internationally leading with 200+ patent applications.

20+ spectroscopic products across pharmaceutical, chemical, and security sectors
Products exported to 30+ countries with 3,000+ units sold
30+ R&D team including 4 PhDs for customized solutions

Frequently Asked Questions

Q: Is the system easy to operate for first-time users?

A: We provide English manuals, instructional videos, and professional technical support meetings.

Q: Do you offer operation training?

A: Training is available at our factory or your location through JINSP engineers or local distributors.

Q: How can I receive the best price quickly?

A: Provide detailed application requirements and working environment details for a prompt quotation.

Q: Is there a minimum order quantity?

A: No MOQ - we accept orders for single units.

Q: What is the product warranty?

A: Standard 1-year warranty with options to extend (additional cost applies).
