Revolutionizing Fruit Checks with Near-Infrared Spectroscopy for Accurate Sugar and Moisture Measurement
Key Specifications
| Attribute |
Value |
| Measurement Range |
900nm~2500nm |
| Wavelength Repeatability |
±0.05 nm |
| Type |
Refrigerated linear array InGaAs |
| Sensing Area |
12.8mm*0.5mm |
| Entrance Slit Width |
5μm,10μm,25μm,50μm (customizable) |
| Incident Light Interface |
SMA905 fiber interface, free space |
Advanced NIR Spectroscopy for Fruit Quality Analysis
A breakthrough in agricultural technology, our NIR spectroscopy enables non-destructive, rapid detection of fruit components. By analyzing near-infrared reflections, it accurately assesses sugars, acids, and moisture content, enhancing quality standardization and supply chain efficiency.
Technical Specifications
| Performance Indicators |

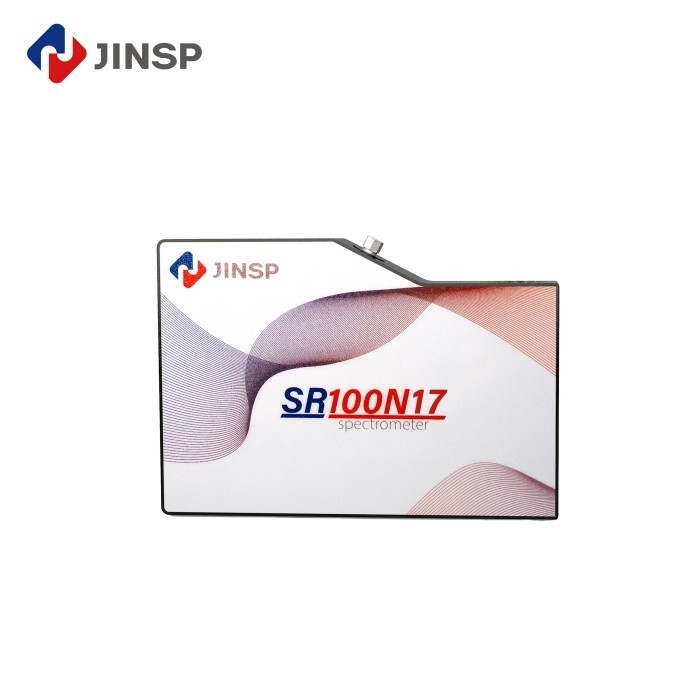

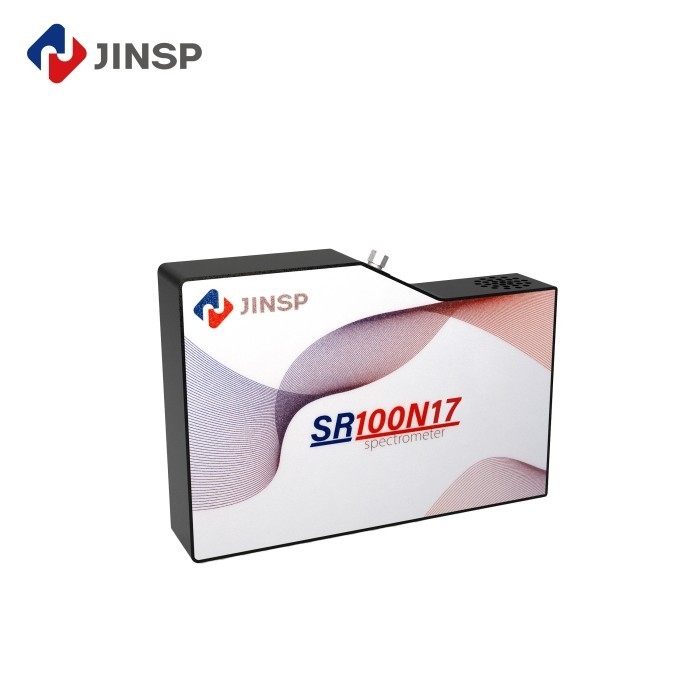

SR100N17 |
SR100N25 |
| Detector |
| Type |
Refrigerated linear array InGaAs |
| Effective Pixel |
512 |
| Pixel Size |
25μm*500μm |
| Sensing Area |
12.8mm*0.5mm |
| Optical Parameters |
| Wavelength Range |
900-1700nm |
900-2500nm |
| Optical Resolution |
3.1nm(@25μm) |
6.3nm(@25μm) |
| Optical Design |
F/4 cross-type |
| Numerical Aperture |
0.14 |
| Focal Length |
100mm |
| Entrance Slit Width |
5μm,10μm,25μm,50μm (customizable) |
| Incident Light Interface |
SMA905 fiber interface, free space |
| Electrical Parameters |
| Integration Time |
1ms-12s |
1ms-200ms |
| Data Output Interface |
USB2.0, UART |
| ADC Bit Depth |
16-bit |
| Power Supply |
DC4.9 to 5.1V(type @5V) |
| Operating Current |
＜3A |
| Environmental Parameters |
| Operating Temperature |
10°C~40°C |
| Storage Temperature |
-20°C~60°C |
| Operating Humidity |
＜90%RH (no condensation) |
| Physical Parameters |
| Dimensions |
178mm*123mm*49mm |
| Weight |
1.2kg |
Measurement Principle
NIR spectroscopy analyzes the 780-2500nm range where molecular vibrations generate spectral patterns. Agricultural samples exhibit wide absorption features from bond vibrations (C-H, O-H), enabling comprehensive chemical profiling and multi-component detection for quality control.
Measurement Methods
- Near-infrared reflection detection: Suitable for detecting surface information of fruit peels, such as color and luster, but not for internal quality detection.
- Near-infrared transmission detection: Theoretically applicable to transparent or semi-transparent samples, but cannot penetrate fruits. Less used in practical applications.
- Near-infrared diffuse reflection detection: A measurement method between reflection and transmission, suitable for opaque, solid and semi-solid samples. The obtained spectral information reflects the characteristics of the internal structure of fruits and is widely used in detecting internal qualities (such as sugar content, acidity).
Applications
- Quality assessment: Predict quality parameters such as firmness, sweetness, and acidity of fruits.
- Classification and identification: Distinguish and identify different fruit types.
- Functional fruit evaluation: Evaluate and screen functional fruits rich in special components.
- Disease monitoring: Quickly diagnose diseases such as citrus Huanglongbing and provide early warnings.
About JINSP Technology
JINSP Company Limited originates from Tsinghua University and has 17 years of experience in developing spectroscopic technology. As a leading supplier of spectroscopic technology, we offer over twenty spectroscopic products across various fields including pharmaceutical, chemical industries, public security, and fiber optic spectrometers.
Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.
Our product portfolio includes:
- UV VIS NIR fiber optic spectrometers
- Desktop/portable, online Raman analyzers for laboratory or industrial liquid & gas analysis
- On-site rapid detectors/identifiers based on Raman technology for drugs, liquids, food safety, explosives & hazardous materials
Frequently Asked Questions
Q: This is my first time using the spectrometer. Is it easy to operate?
A: We provide an English manual and instructional video to guide you through spectrometer operation. Our technicians also offer professional technical operation meetings.
Q: Do you offer operation training?
A: Your technicians can receive training at our factory. JINSP engineers can also provide local support including installation, training, debugging, and maintenance at your location.
Q: What is your website?
A: Visit us at: www.jinsptech.com
Q: What about your quality assurance?
A: We have a dedicated quality inspection team. All goods undergo thorough quality inspection before shipment, and we can provide inspection photos upon request.
