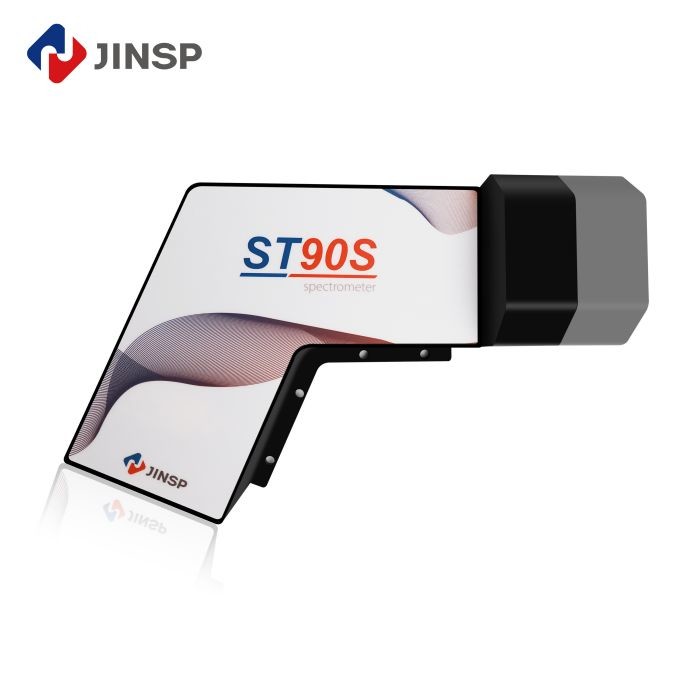

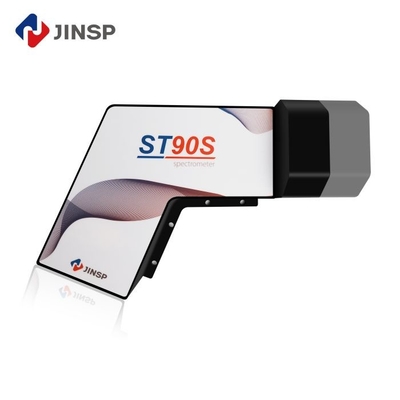

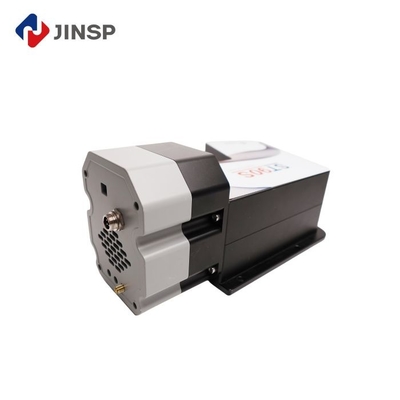

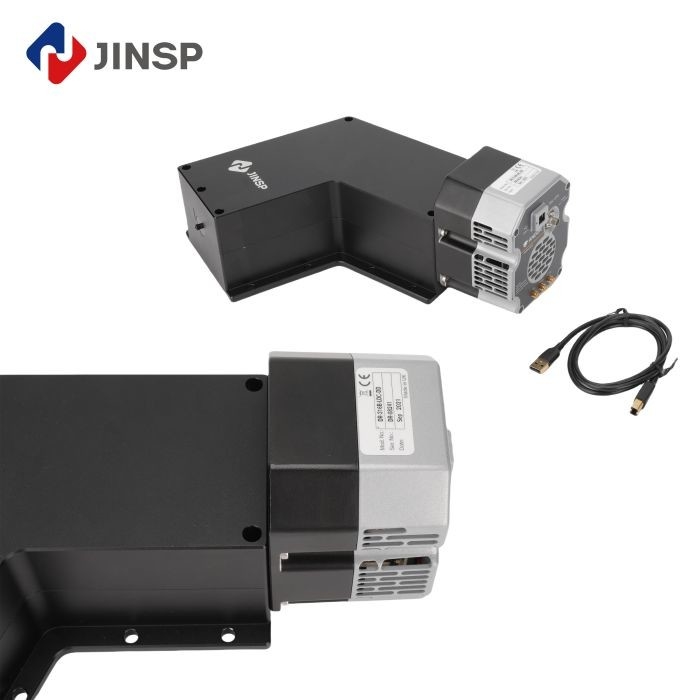

Modular Raman Spectrometer with VPH Holographic Grating and Deep-Cooling CCD for High-Sensitivity Gas Detection

Contact Now

Modular Raman Spectrometer with VPH Holographic Grating and Deep-Cooling CCD for High-Sensitivity Gas Detection

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-70 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/60-70working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST90S
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	540nm~686nm Corresponds To 260~4200cm-1	Grating Type:	VPH Volume Holographic Transmission Grating
Diffraction Efficiency:	>85%	Dimensions:	348.7mm×222.8mm ×126mm
Weight:	<6kg (including Camera)	Fiber Length:	Φ10mm Multi-core Optical Fiber
Integration Time:	1ms-60s	Power Supply:	12V DC
Highlight:	VPH Holographic Grating Modular Raman Spectrometer , Deep-Cooling CCD Modular Raman Spectrometer

Product Description

Modular Raman Spectrometer with VPH Holographic Grating and Deep-Cooling CCD

High-sensitivity gas detection spectrometer featuring VPH holographic grating (90% efficiency) with 5x greater sensitivity than reflective systems. Compact, industry-ready design with deep-cooling CCD for excellent SNR and quantum efficiency.

Key Specifications

Attribute	Value
Wavelength Range	540nm~686nm (260~4200cm⁻¹)
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Dimensions	348.7mm × 222.8mm × 126mm
Weight	<6kg (including camera)
Fiber Length	Φ10mm multi-core optical fiber
Integration Time	1ms-60s
Power Supply	12V DC

Technical Performance

Category	Parameter	Value
Optical Parameters	Wavelength Range	ST90S1: 540nm~686nm (260~4200cm⁻¹) ST90S2: 532nm~670nm (0~3850cm⁻¹)
	Optical Resolution (ST90S1)	0.25nm (8cm⁻¹ at 50μm slit) 0.14nm (5cm⁻¹ at 25μm slit)
	Grating Type	VPH volume holographic transmission grating
	Diffraction Efficiency	>85%
	Fiber Interface	SMA905 or Φ10mm multi-core optical fiber
	Numerical Aperture	0.25
Electrical Parameters	Integration Time	1ms-3600s
	Data Output Interface	USB2.0
	ADC Bit Depth	16-bit
	Power Supply	DC12V (ST90S1~ST90S4) DC5V (ST90S5)
	Operating Current	3A (typical value 2A)

Model Variations

Model	ST90S1	ST90S2	ST90S3	ST90S4
Detector Model	AndoriVac 316	PI PIXIS 100BX	Raptor261FI	Raptor261BI
Chip Type	Deep depletion back illuminated	Back illuminated	Front illuminated	Back illuminated
Quantum Efficiency	80%@600nm	90%@600nm	45%@600nm	80%@600nm
Pixel Configuration	2000×256 (15×15μm)	1340×100 (20×20μm)	2048×256 (15×15μm)	2048×256 (15×15μm)
Cooling Temperature	-70°C	-80°C	-70°C	-70°C

Key Features

5× greater sensitivity than reflective spectrometer systems
Precision optics double standard resolution while maintaining stability
Deep-cooling CCD for excellent signal-to-noise ratio
Compact, industry-ready design
Ideal for 532nm Raman systems with superior gas detection
4200 cm⁻¹ range with 4 cm⁻¹ resolution
Micro-region in situ measurement capability
Non-contact, non-destructive analysis
Fast spectroscopy with high sensitivity for weak signals
Compatible with aqueous samples

Applications

The JINSP ST90S spectrometer is ideal for:

532 Confocal Raman microscopy
Chemical and molecular structure analysis
High-precision gas detection
Research requiring ultra-high resolution spectroscopy
Pharmaceutical and chemical industry applications

Packaging

The High-Throughput Transmission Fiber Spectrometer comes in a sturdy cardboard box to ensure safe delivery.

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With over 200 patent applications and core technologies at international leading levels, JINSP offers more than twenty spectroscopic products used in pharmaceutical, chemical, public security, and customs applications worldwide.

With a team of 30+ R&D engineers including 4 PhDs, JINSP specializes in personalized product customization to meet diverse customer needs with innovative design capabilities.

Frequently Asked Questions

What is the brand name of the product?

JINSP is our brand name.

What is the model number of the product?

ST90S Transmission Imaging Spectrometer.

What is the minimum order quantity?

The minimum order quantity is 1 unit.

What are the payment terms?

T/T and Western Union.

What is the delivery time?

60-70 working days.
