Raman Spectroscopy ST90S Modular Raman Spectrometer with Wavelength Range 540nm-686nm and 348.7mm×222.8mm ×126mm Samples

Contact Now

Raman Spectroscopy ST90S Modular Raman Spectrometer with Wavelength Range 540nm-686nm and 348.7mm×222.8mm ×126mm Samples

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-70 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/60-70working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST90S
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	540nm~686nm Corresponds To 260~4200cm-1	Grating Type:	VPH Volume Holographic Transmission Grating
Diffraction Efficiency:	>85%	Dimensions:	348.7mm×222.8mm ×126mm
Weight:	<6kg (including Camera)	Fiber Length:	Φ10mm Multi-core Optical Fiber
Integration Time:	1ms-60s	Power Supply:	12V DC
Highlight:	ST90S Modular Raman Spectrometer , 540nm-686nm Modular Raman Spectrometer , 348.7mm×222.8mm ×126mm Modular Raman Spectrometer

Product Description

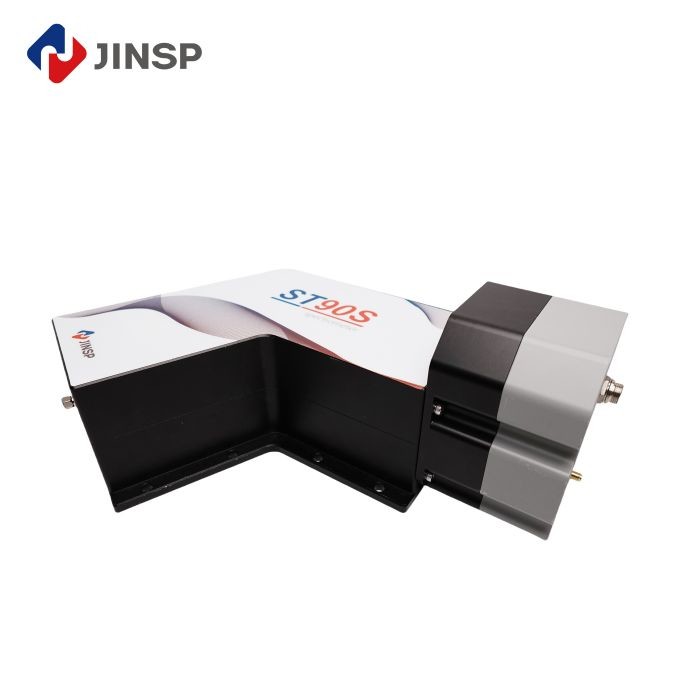

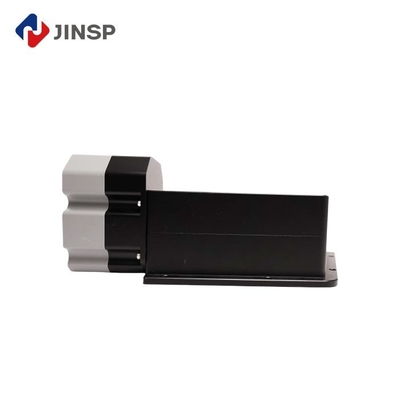

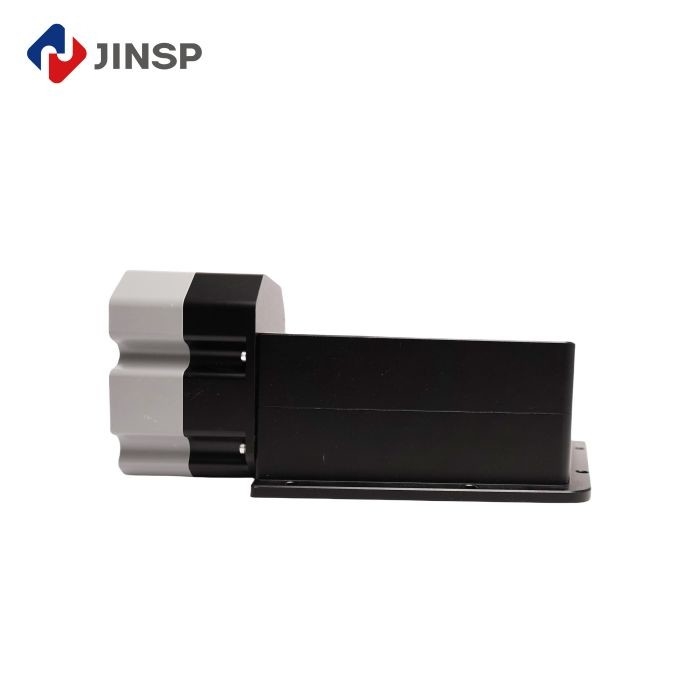

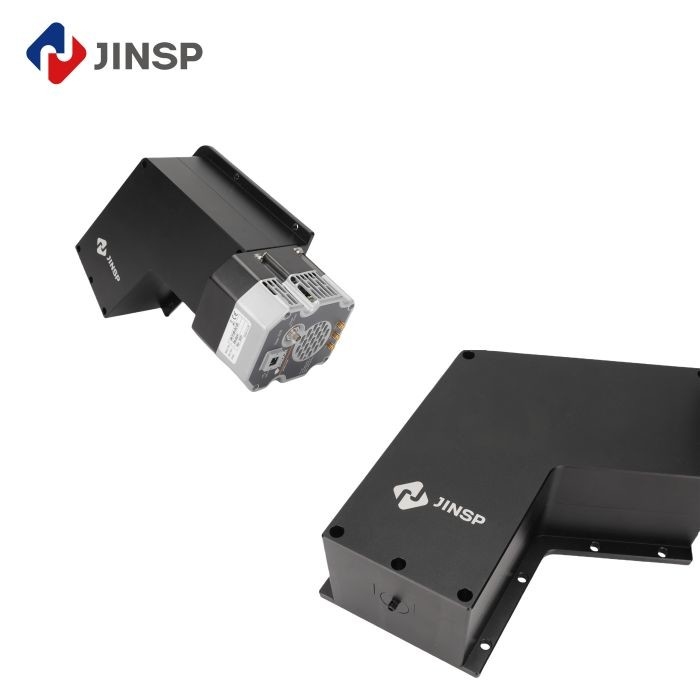

ST90S Modular Raman Spectrometer

High-performance modular spectrometer with 540nm-686nm wavelength range (260-4200cm⁻¹) and compact 348.7mm×222.8mm×126mm design. Features VPH holographic grating with >85% diffraction efficiency and industrial-grade durability.

Key Specifications

Attribute	Value
Wavelength Range	540nm~686nm (260~4200cm⁻¹)
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Dimensions	348.7mm × 222.8mm × 126mm
Weight	<6kg (including camera)
Fiber Length	Φ10mm multi-core optical fiber
Integration Time	1ms-60s
Power Supply	12V DC

Technical Advantages

5× sensitivity compared to reflective models with high-efficiency VPH grating (~90%)
Twice the resolution of typical devices with low-noise, deep-cooled CCD
Compact, rugged design ideal for industrial applications
4200 cm⁻¹ spectral width with 4 cm⁻¹ resolution
Optimized for 532nm Raman applications and gas analysis

Detailed Technical Parameters

Category	Parameter	Value
Optical Parameters	Wavelength Range	ST90S1: 540nm~686nm (260~4200cm⁻¹) ST90S2: 532nm~670nm (0~3850cm⁻¹)
Optical Parameters	Optical Resolution (ST90S1)	0.25nm (8cm⁻¹ at 50μm slit) 0.14nm (5cm⁻¹ at 25μm slit)
Electrical Parameters	Integration Time	1ms-3600s
Environmental	Operating Temperature	-20°C ~60°C
	Storage Temperature	-30°C ~70°C
	Operating Humidity	<90%RH (no condensation)

Application Areas

Scientific research grade Raman spectroscopy
532nm confocal Raman microscope systems
Industrial Raman system integration
Online pharmaceutical and bio-fermentation process detection
Chemical reaction process monitoring
Gas analysis and process control

Packaging & Shipping

The spectrometer ships in protective cardboard packaging to ensure safe delivery.

About JINSP

JINSP Company Limited specializes in spectral detection technologies with 17+ years experience. Our 200+ patents and 3,000+ units sold worldwide demonstrate our leadership in Raman, FT-IR, and LIBS technologies for pharmaceutical, chemical, security, and customs applications.

Frequently Asked Questions

Brand Name:

JINSP

Model Number:

ST90S Transmission Imaging Spectrometer

Minimum Order Quantity:

1 unit

Payment Terms:

T/T and Western Union

Delivery Time:

60-70 working days
