Home ProductsModular Raman SpectrometerFlexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber
Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber
Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber
Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber
Contact Now

Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : International Shipping Package Delivery Time : 60-70 working days
Payment Terms : T/T, Western Union Supply Ability : 100 PCS/60-70working days
Place of Origin: CHINA Brand Name: JINSP
Certification: CE Model Number: ST90S
Document: Product Brochure PDF

Detail Information
Wavelength Range: 540nm~686nm Corresponds To 260~4200cm-1 Grating Type: VPH Volume Holographic Transmission Grating
Diffraction Efficiency: >85% Dimensions: 348.7mm×222.8mm ×126mm
Weight: <6kg (including Camera) Fiber Length: Φ10mm Multi-core Optical Fiber
Integration Time: 1ms-60s Power Supply: 12V DC
Highlight:

Flexible Data Collection Modular Raman Spectrometer

,

1ms Integration Time Modular Raman Spectrometer

,

Multi-Core Modular Raman Spectrometer

Product Description

Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber
Key Specifications
Wavelength Range 540nm~686nm corresponds to 260~4200cm-1
Grating Type VPH volume holographic transmission grating
Diffraction Efficiency >85%
Dimensions 348.7mm×222.8mm ×126mm
Weight <6kg (including camera)
Fiber Length Φ10mm multi-core optical fiber
Integration Time 1ms-60s
Power Supply 12V DC
Product Overview

Engineered for precision, the JINSP spectrometer features a VPH grating with 90% diffraction efficiency. Its optimized light path boosts sensitivity by 500% versus reflective units, while resolution doubles. The deep-cooled CCD ensures high SNR and QE, all in a stable, industrial-grade package.

The ST90S specializes in 532nm-excited Raman spectroscopy, especially for gas detection. Featuring a broad 4200 cm⁻¹ range and 4 cm⁻¹ resolution, it rivals conventional large-format research spectrometers.

Technical Parameters
Performance Indicators Parameters
Detector See model table for details
Optical Parameters Wavelength Range ST90S1: 540nm~686nm corresponds to 260~4200cm-1
ST90S2: 532nm~670nm corresponds to 0~3850cm-1
Optical Resolution (ST90S1) 0.25nm, corresponds to 8cm-1(50μm slit)
0.14nm, corresponds to 5cm-1(25μm slit)
Grating Type VPH volume holographic transmission grating
Diffraction Efficiency >85%
Fiber Interface SMA905 or Φ10mm multi-core optical fiber
Numerical Aperture 0.25
Electrical Parameters Integration Time 1ms-3600s
Data Output Interface USB2.0
ADC Bit Depth 16-bit
Power Supply DC12V (ST90S1~ST90S4)
DC5V (ST90S5)
Operating Current 3A (typical value 2A)
Environmental Parameters Operating Temperature -20°C ~60°C
Storage Temperature -30°C ~70°C
Operating Humidity <90%RH (no condensation)
Dimensions 348.7mm × 222.8mm × 126mm
Weight <6kg (including camera)
Product Models
Product Model ST90S1 ST90S2 ST90S3 ST90S4
Detector Brand/Model AndoriVac 316 PI PIXIS 100BX Raptor261FI Raptor261BI
Chip Type Deep depletion of back illuminated Back illuminated Front illuminated Back illuminated
Quantum Efficiency 80%@600nm 90%@600nm 45%@600nm 80%@600nm
Number of Pixels 2000*256 1340*100 2048*256 2048*256
Pixel Size (μm) 15*15 20*20 15*15 15*15
Image Area (mm) 30*3.8 26.8*2.0 30*3.8 30*3.8
Cooling Temperature (℃) -70 -80 -70 -70
* Customization available for other ranges
Technical Advantages
Highly Stable: No adjustable components, applicable to labs and industries
High Flux: Numerical aperture is 0.25
High Diffraction Efficiency: VPH grating, diffraction efficiency up to 90%
Support Multiple Channels: Compatible with SMA905 optical fiber and Φ10mm multi-core optical fiber input interface
Applications
Scientific research grade Raman spectroscopy detection system
532 nm confocal Raman microscope system
Industrial Raman System Integration
Online Raman detection - pharmaceutical, bio-fermentation, chemical reaction process detection
Gas online detection and process analysis
Chemical industry online, biomedical
Product Images

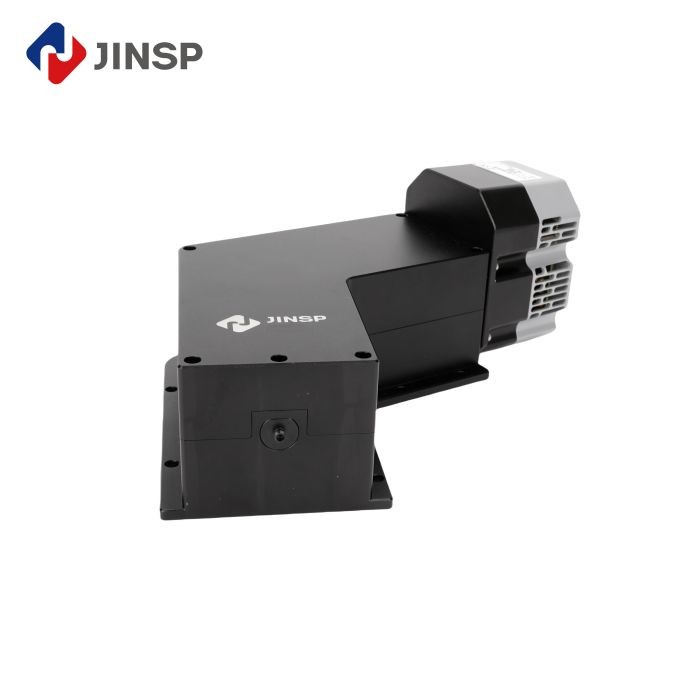

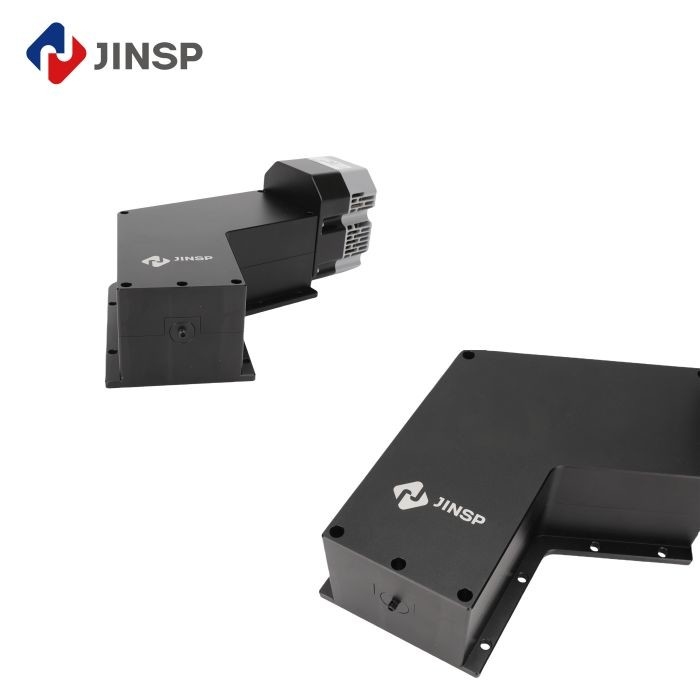

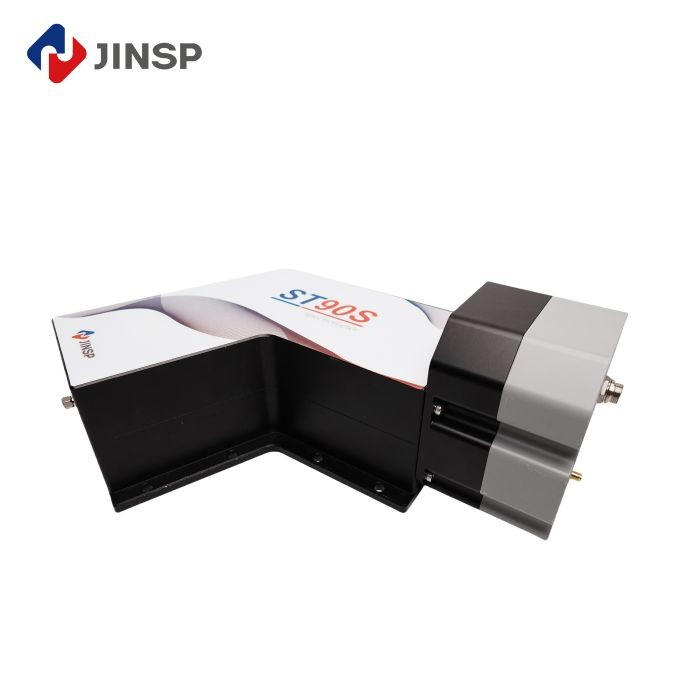

Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber 0 Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber 1 Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber 2 Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber 3 Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber 4
Packaging & Shipping

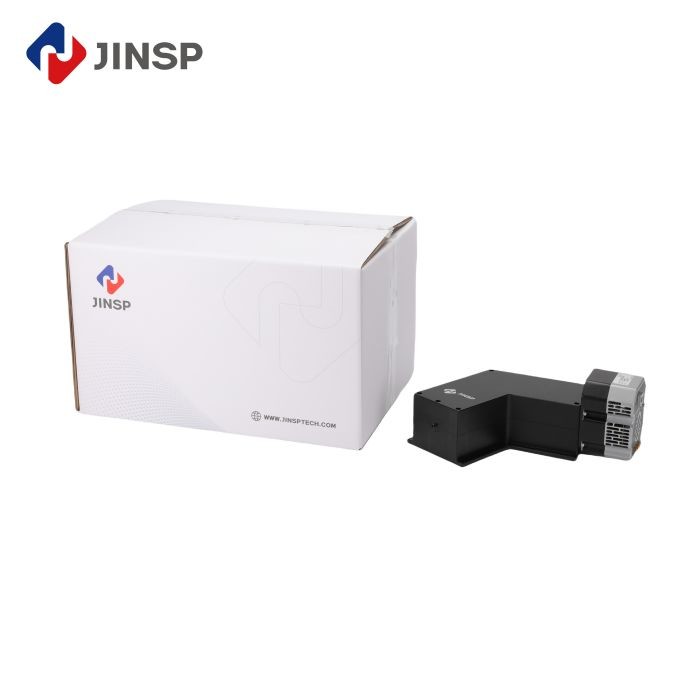

The High-Throughput Transmission Fiber Spectrometer comes in a sturdy cardboard box to ensure safe delivery.

Company Information

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Benefit from 30+ R&D engineers, including 4 Ph.D., JINSP is deeply rooted in the field of personalized product customization, and is committed to meeting the diverse and unique needs of customers with excellent professional technology and innovative design capabilities.

Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber 5 Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber 6 Flexible Data Collection Modular Raman Spectrometer with 1ms-3600s Integration Time and Φ10mm Multi-Core Optical Fiber 7
Frequently Asked Questions
1. What is the brand name of the product?

JINSP is our brand name.

2. What is the model number of the product?

ST90S Transmission Imaging Spectrometer.

3. What is the minimum order quantity for the product?

The minimum order quantity is 1 PC.

4. What are the payment terms for the product?

The payment terms are T/T and Western Union.

5. What is the delivery time for the product?

The delivery time is 60-70 working days.
