ST90S Raman Spectrometer with Imported Reflection-Type Instruments 532nm Wavelength and Fiber Length Φ10mm

Contact Now

ST90S Raman Spectrometer with Imported Reflection-Type Instruments 532nm Wavelength and Fiber Length Φ10mm

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	60-70 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100 PCS/60-70working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	ST90S
Document:	Product Brochure PDF

Detail Information
Wavelength Range:	540nm~686nm Corresponds To 260~4200cm-1	Grating Type:	VPH Volume Holographic Transmission Grating
Diffraction Efficiency:	>85%	Dimensions:	348.7mm×222.8mm ×126mm
Weight:	<6kg (including Camera)	Fiber Length:	Φ10mm Multi-core Optical Fiber
Integration Time:	1ms-60s	Power Supply:	12V DC
Highlight:	Fiber Length Raman Spectrometer , Imported Reflection-Type Raman Spectrometer , Φ10mm Raman Spectrometer

Product Description

ST90S Raman Spectrometer with Imported Reflection-Type Instruments 532nm Wavelength and Fiber Length Φ10mm

Key Specifications

Attribute	Value
Wavelength Range	540nm~686nm corresponds to 260~4200cm-1
Grating Type	VPH volume holographic transmission grating
Diffraction Efficiency	>85%
Dimensions	348.7mm×222.8mm ×126mm
Weight	<6kg (including camera)
Fiber Length	Φ10mm multi-core optical fiber
Integration Time	1ms-60s
Power Supply	12V DC

Product Overview

The transmission-type JINSP spectrometer leverages VPH technology (90% efficiency) for unmatched sensitivity (5x reflective) and dual resolution. Its research-grade CCD excels in quantum efficiency and noise reduction, housed in a durable, integration-friendly frame.

A perfect match for 532nm Raman systems, the ST90S offers outstanding gas-phase detection. With 4200 cm⁻¹ coverage and 4 cm⁻¹ resolution, it competes with larger scientific spectrometers.

Technical Parameters

Category	Performance Indicators	Parameters
Optical Parameters	Wavelength Range	ST90S1: 540nm~686nm corresponds to 260~4200cm-1 ST90S2: 532nm~670nm corresponds to 0~3850cm-1
	Optical Resolution (ST90S1)	0.25nm, corresponds to 8cm-1 (50μm slit) 0.14nm, corresponds to 5cm-1 (25μm slit)
	Grating Type	VPH volume holographic transmission grating
	Diffraction Efficiency	>85%
	Fiber Interface	SMA905 or Φ10mm multi-core optical fiber
	Numerical Aperture	0.25
Electrical Parameters	Integration Time	1ms-3600s
	Data Output Interface	USB2.0
	ADC Bit Depth	16-bit
	Power Supply	DC12V (ST90S1~ST90S4) DC5V (ST90S5)
	Operating Current	3A (typical value 2A)
	Operating Temperature	-20°C ~60°C
	Storage Temperature	-30°C ~70°C
Physical Parameters	Dimensions	348.7mm × 222.8mm × 126mm
	Weight	<6kg (including camera)

Model Specifications

Product Model	ST90S1	ST90S2	ST90S3	ST90S4
Detector Brand/Model	AndoriVac 316	PI PIXIS 100BX	Raptor261FI	Raptor261BI
Chip Type	Deep depletion of back illuminated	Back illuminated	Front illuminated	Back illuminated
Quantum Efficiency	80%@600nm	90%@600nm	45%@600nm	80%@600nm
Number of Pixels	2000*256	1340*100	2048*256	2048*256
Pixel Size (μm)	15*15	20*20	15*15	15*15
Image Area (mm)	30*3.8	26.8*2.0	30*3.8	30*3.8
Cooling Temperature (℃)	-70	-80	-70	-70

* Customization available for other ranges

Key Features

Highly Stable

No adjustable components, applicable to labs and industries

High Flux

High flux, numerical aperture is 0.25

High Diffraction Efficiency

VPH grating, diffraction efficiency up to 90%

Support Multiple Channels

Compatible with SMA905 optical fiber and Φ10mm multi-core optical fiber input interface

Applications

The JINSP ST90S spectrometer is perfect for a variety of applications. It has a wavelength range of 540nm~686nm (260~4200cm-1), weighs less than 6kg (including camera), with a numerical aperture of 0.25 and integration time ranging from 1ms-3600s.

One of the most common applications is in 532 Confocal Raman microscopy, where it enables precise study of molecular chemical and structural properties. The ultra-high resolution allows detection of even the smallest signals with great precision.

Overall, the ST90S is a versatile and reliable spectrometer with ultimate sensitivity and high resolution, making it valuable for researchers needing detailed molecular analysis.

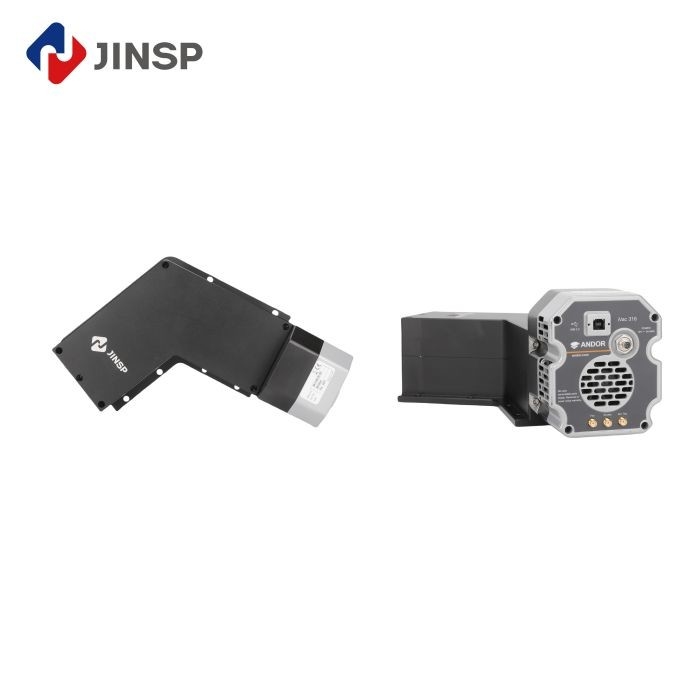

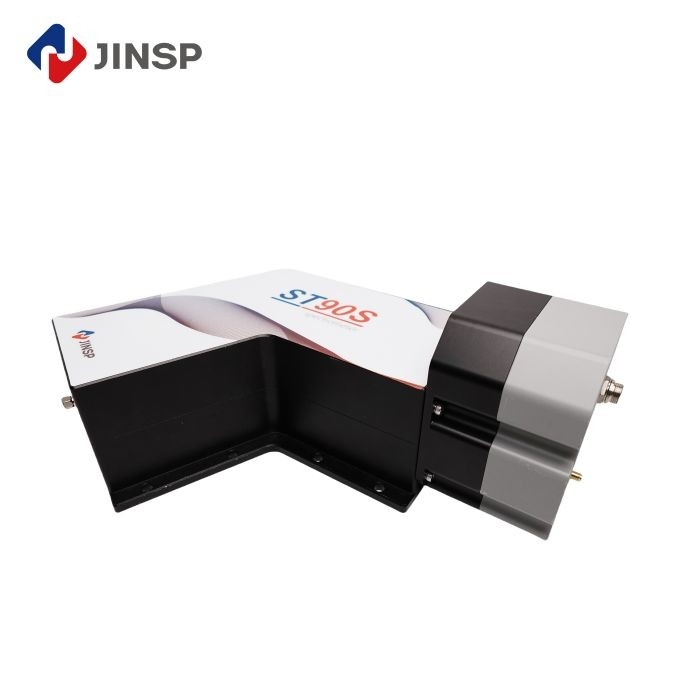

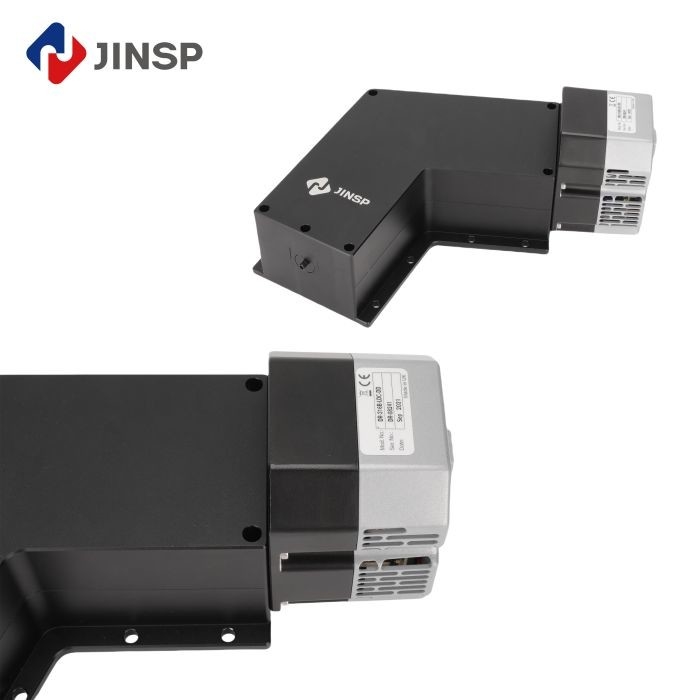

Product Images

Company Profile

JINSP Company Limited ("JINSP") is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With extensive technology accumulation, our core technologies have reached internationally leading levels, with over 200 patent applications.

Frequently Asked Questions

What is the brand name of the product?

JINSP is our brand name.

What is the model number of the product?

ST90S Transmission Imaging Spectrometer.

What is the minimum order quantity?

The minimum order quantity is 1 PC.

What are the payment terms?

The payment terms are T/T and Western Union.

What is the delivery time?

The delivery time is 60-70 working days.
