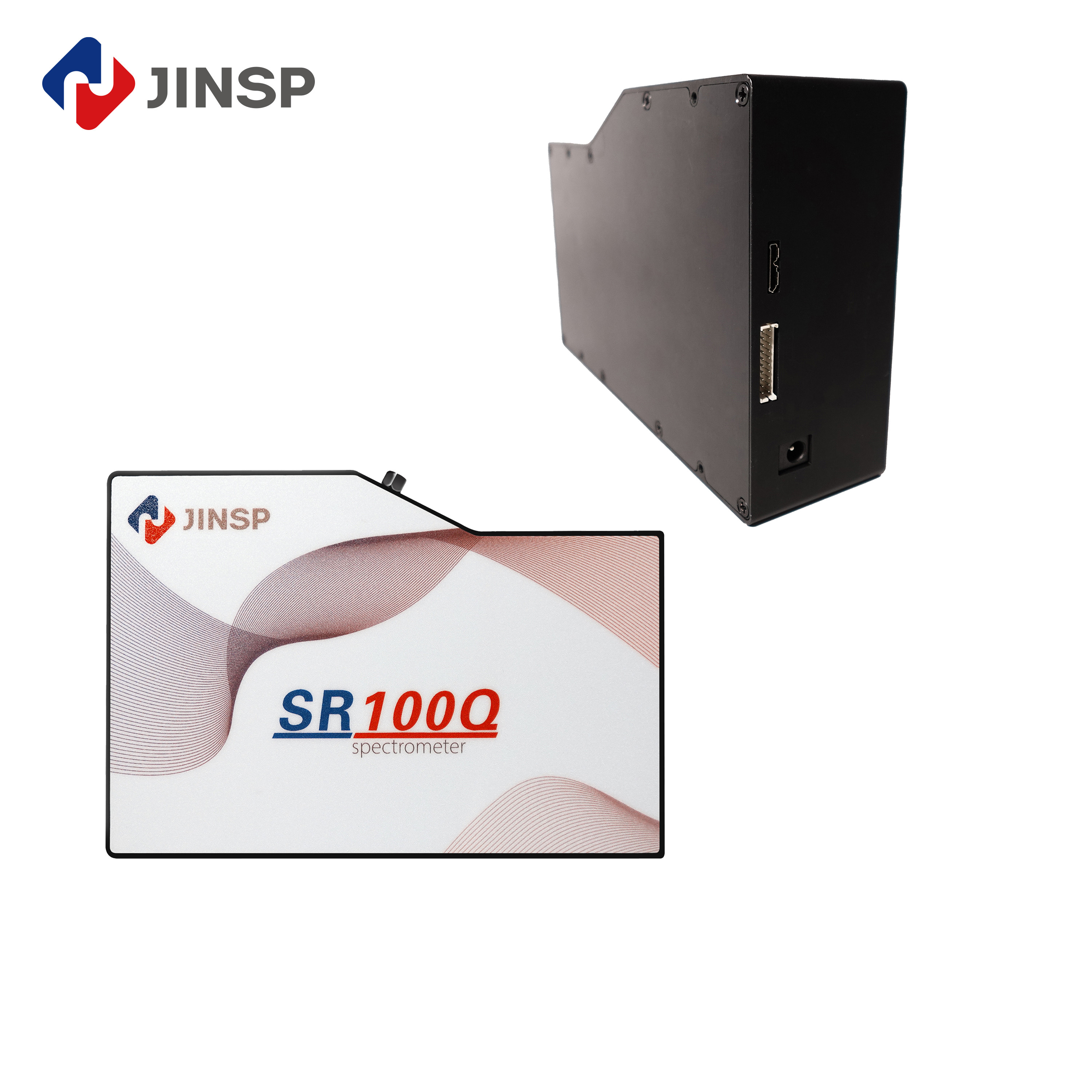

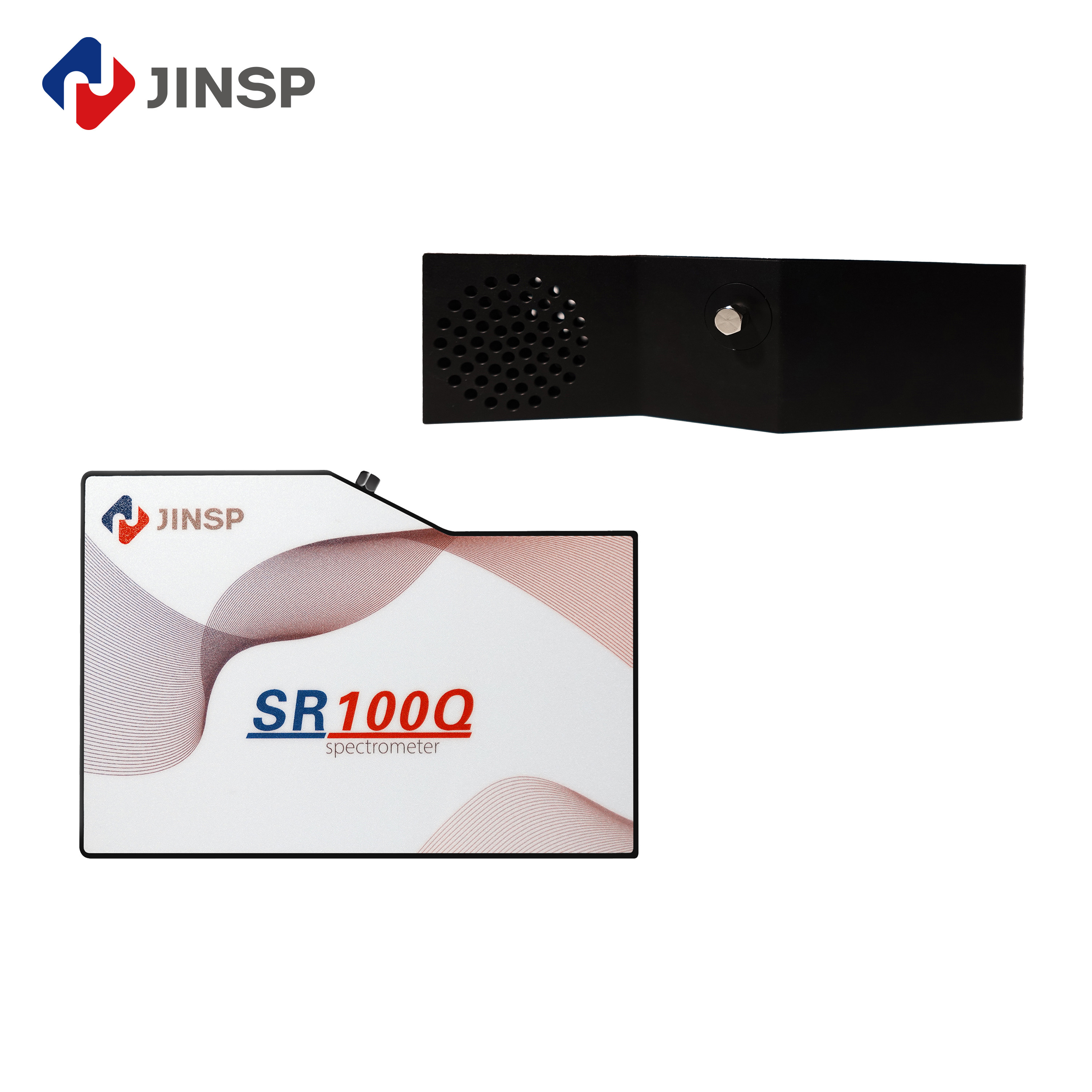

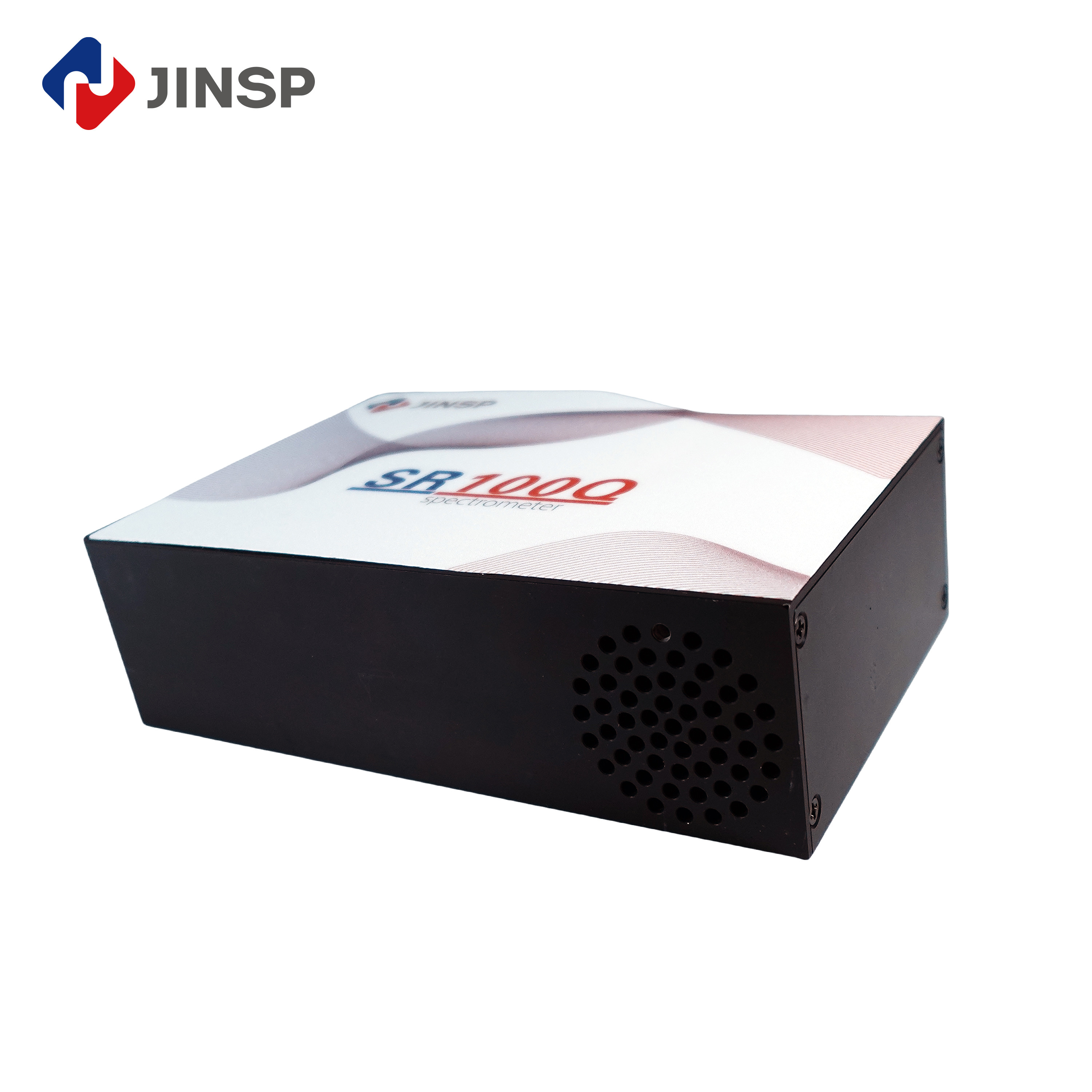

Ultra High Sensitivity Fiber Optic Spectrometer SR100Q
Back-Thinned scientific-grade CCD chip Modular
Product Specifications
| Attribute |
Value |
| Spectral Range |
200nm - 1100nm |
| Resolution |
1.2~7.7nm (can be customized) |
| Chip type |
Back-illuminated TE-cooled Hamamatsu S7031 |
| Effective pixels |
1024*122 |
| Quantum Efficiency |
QE92%peak@650nm, 83%@232nm |
| SNR |
1000:1 |
Product Description
The JINSP SR100Q spectrometer is integrated with the Hamamatsu S7031, a scientific-grade TE-cooled area array CCD chip. With a pixel size of up to 24*24μm and excellent quantum efficiency of up to 92%, it ensures high response in the ultraviolet band and effectively improves the sensitivity and SNR of weak signals.
Furthermore, it can realize excellent spectrum signals, and stable and reliable performance based on the advanced high-resolution light path and low-noise, high-speed FPGA signal processing chip. The TE cooling-based CCD greatly reduces dark noise and is well suited for weak light detection in scientific research applications.
Detailed Specifications
| Chip Type |
Back-illuminated TE-cooled Hamamatsu S7031 |
| Effective Pixel |
1024*122 |
| Pixel Size |
24*24 μm |
| Sensing Area |
24.576*2.928mm |
| Quantum Efficiency |
QE92%peak@650nm,83%@232nm |
| Spectral Range |
185~1100nm (can be customized) |
| Resolution |
1.2~7.7nm (can be customized) |
| SNR |
1000:1 |
| Dimensions |
185mm*126mm*53mm |
| Weight |
1.7kg |
Technical Characteristics
- High quantum efficiency, 92%peak@650nm, 83%@232nm
- High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1
- Noise-free clear processing of weak signal in long exposure, strong adaption to environment
- Low-noise and high-speed circuit: USB3.0
Typical Applications
- Detect absorption, transmittance and reflection Spectrum
- Light source and laser wavelength characterization
- OEM product module: Fluorescence spectrum, Raman spectrum, etc.
JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.
In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.
This strategic move allows JINSP to maintain stringent control over its production processes, ensuring that every product bearing the JINSP brand name meets the highest quality standards. The presence of this manufacturing base not only enhances the company's ability to deliver superior products but also underscores its commitment to excellence in manufacturing.
