Cooled Detector Fiber Optic Spectrometer with SMA905 Fiber Interface 200-1100nm Pixel Size 28.672*0.896mm

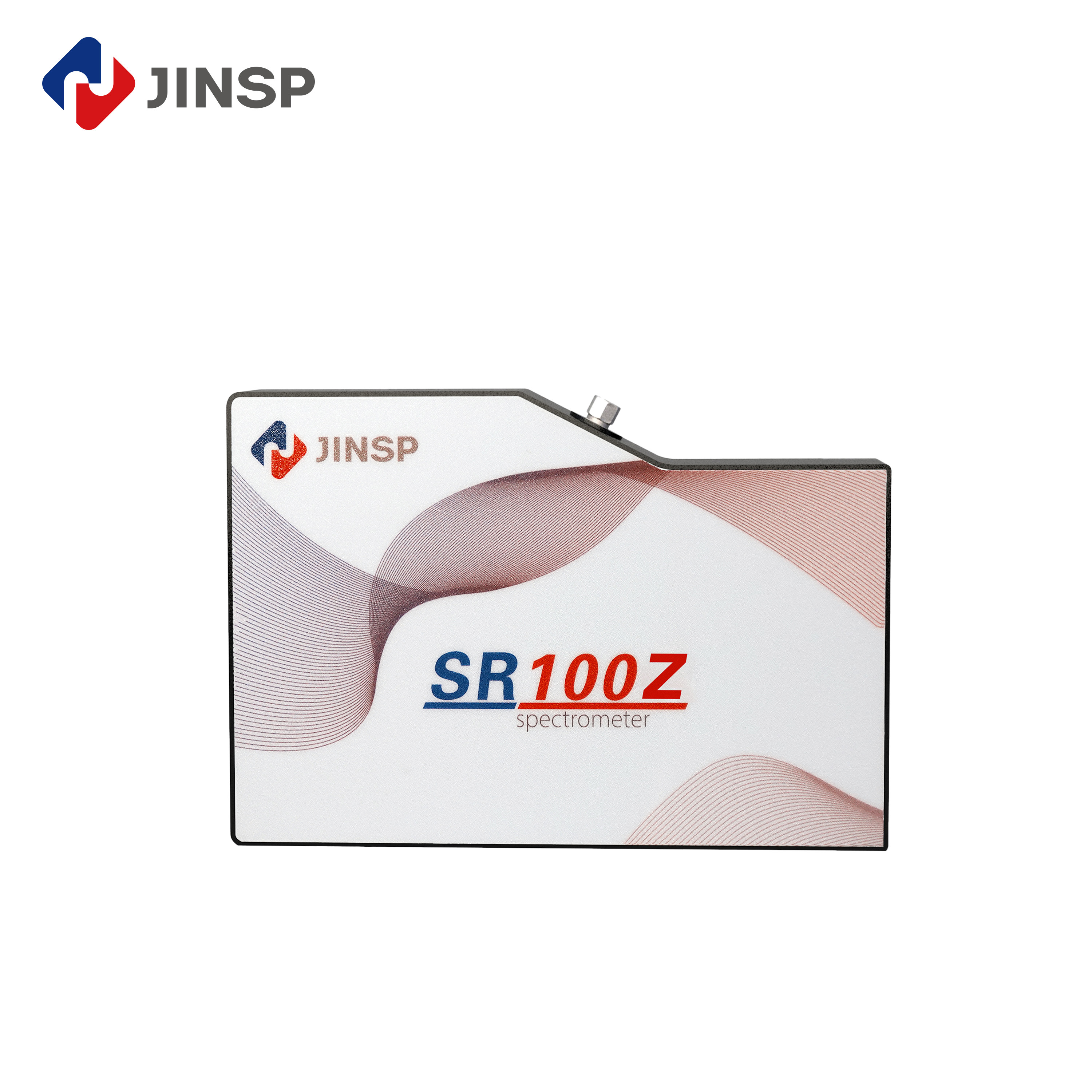

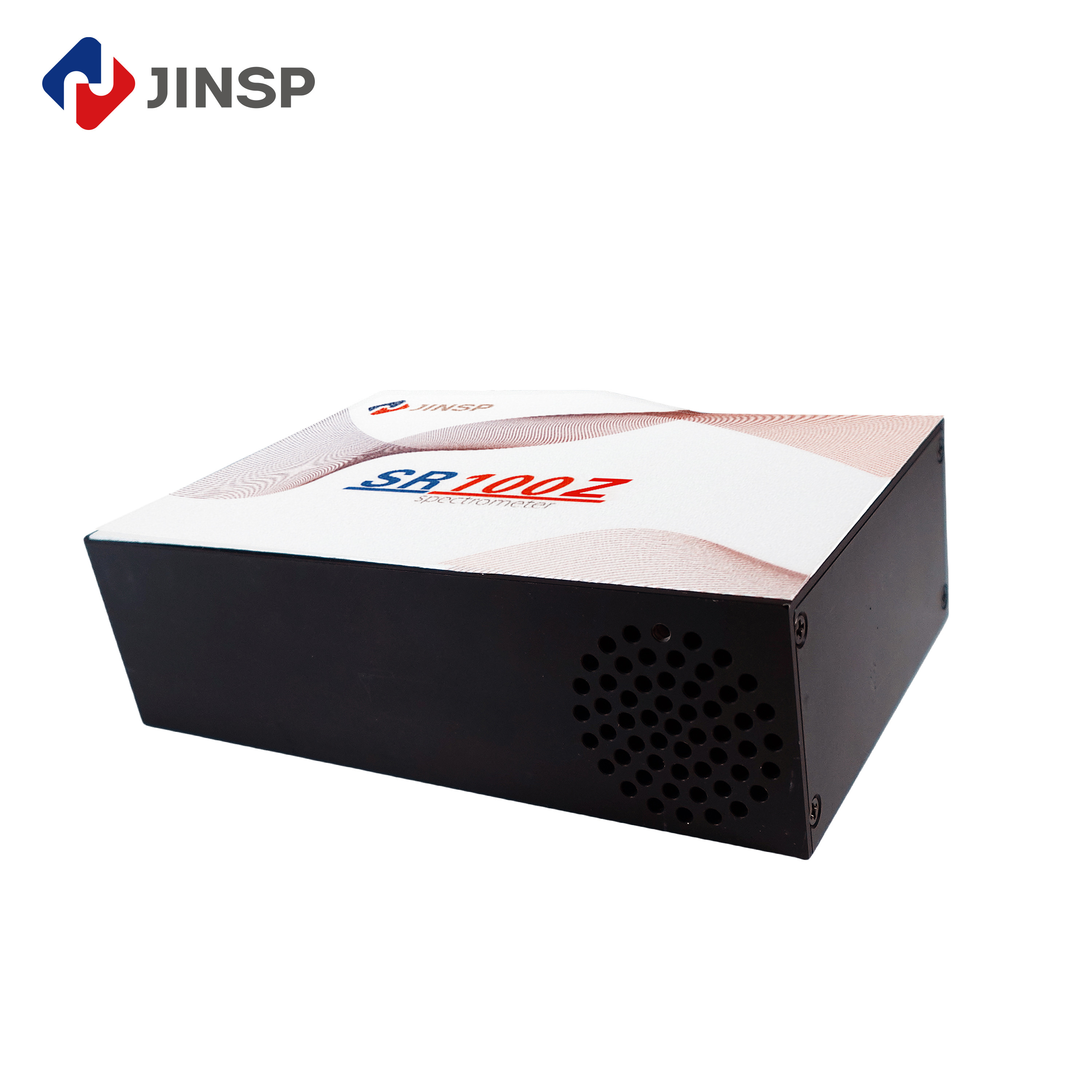

The JINSP SR100Z spectrometer is equipped with a Hamamatsu S11850 area array back-illuminated CCD chip. The thermoelectric cooler attached to the CCD keeps chip temperature constant (approximately 5℃), improves spectrum SNR, and enhances durability. With a 2048*64 pixel number and a 14*14μm pixel size, it receives more optical signals and exhibits quantum efficiency 2 times that of a linear array sensor in the 200~1100 nm spectral range; the quantum efficiency in the ultraviolet band is as high as 70%.

For excellent spectrum signals, stable, and reliable performance SR100Z is integrated with a high-resolution imaging path and an advanced FPGA low-noise and high-speed signal processing circuit. With its enhanced sensitive area, it is well-suited for a wide range of spectral applications, including fluorescence, transmission/reflection, and Raman spectra.

• High sensitivity: 78% peak quantum efficiency, UV band optimization
• High resolution: Realize resolution <1.0nm@25um (200~875nm)
• High flexibility: 200nm~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485

• Detect absorption, transmittance and reflection Spectrum
• OEM product module: Fluorescence spectrum, Raman spectrum, etc.

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.

JINSP Company received ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide required certifications, such as certification by the Ministry of Public Security or National Institute of Metrology, Environmental Level Certification, IP Level Certification, CE Certification, Transport Identification Report, EU ECAC certification, German ICT Security Testing, etc.
