Ultra High Sensitivity Fiber Optic Spectrometer SR100Q Back-Thinned scientific-grade CCD chip Modular

Contact Now

Ultra High Sensitivity Fiber Optic Spectrometer SR100Q Back-Thinned scientific-grade CCD chip Modular

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	T/T, Western Union	Supply Ability :	5PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100Q
Document:	Product Brochure PDF

Detail Information
Spectrual Range:	200nm - 1100nm	Resolution:	1.2~7.7nm(can Be Customized)
Chip Type:	Back-illuminated TE-cooled Hamamatsu S7031	Effective Pixels:	1024*122
Qutuam Efficiency:	QE92%peak@650nm, 83%@232nm	SNR:	1000:1
Highlight:	Ultra High Sensitivity Fiber Optic Spectrometer , scientific-grade Fiber Optic Spectrometer , CCD chip Fiber Optic Spectrometer

Product Description

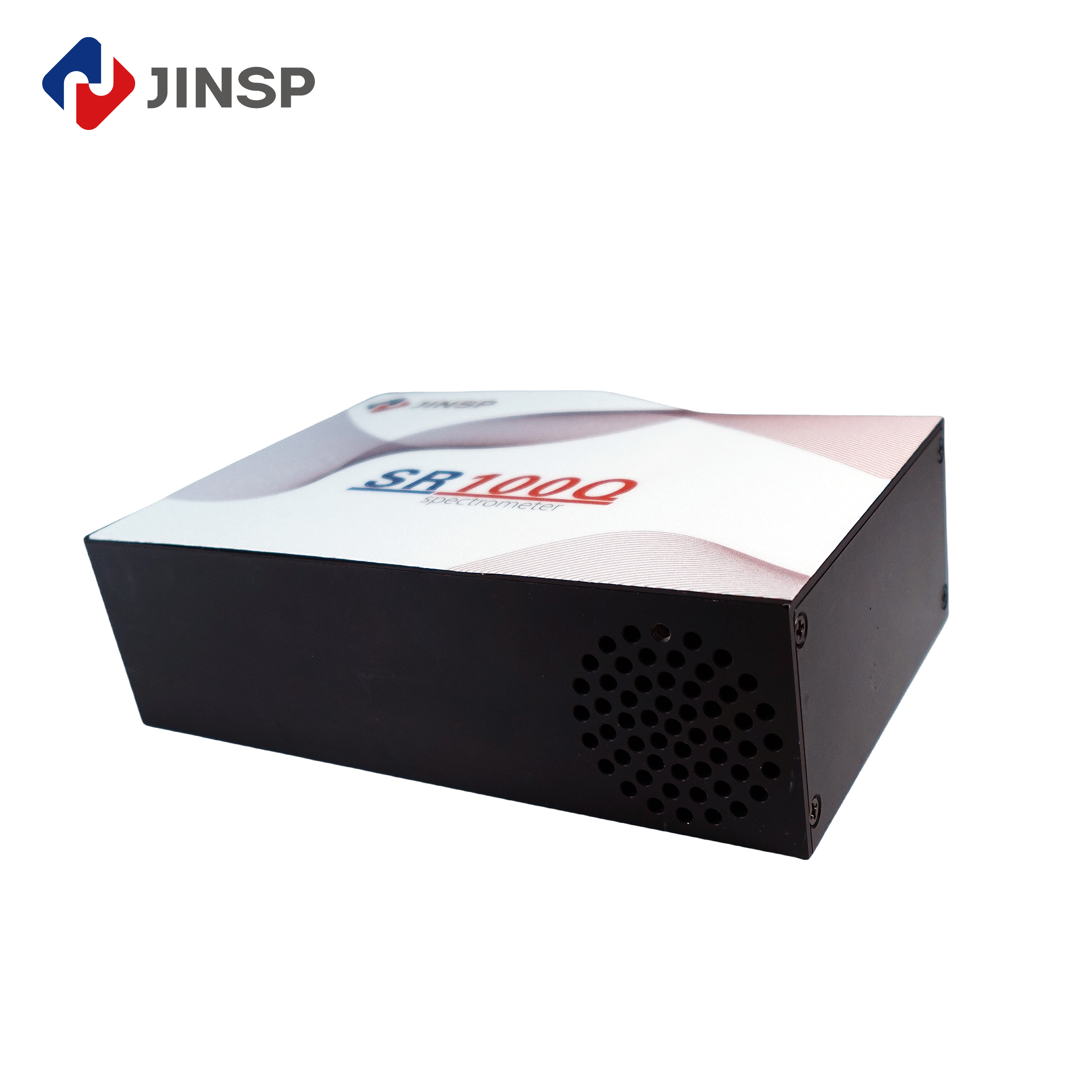

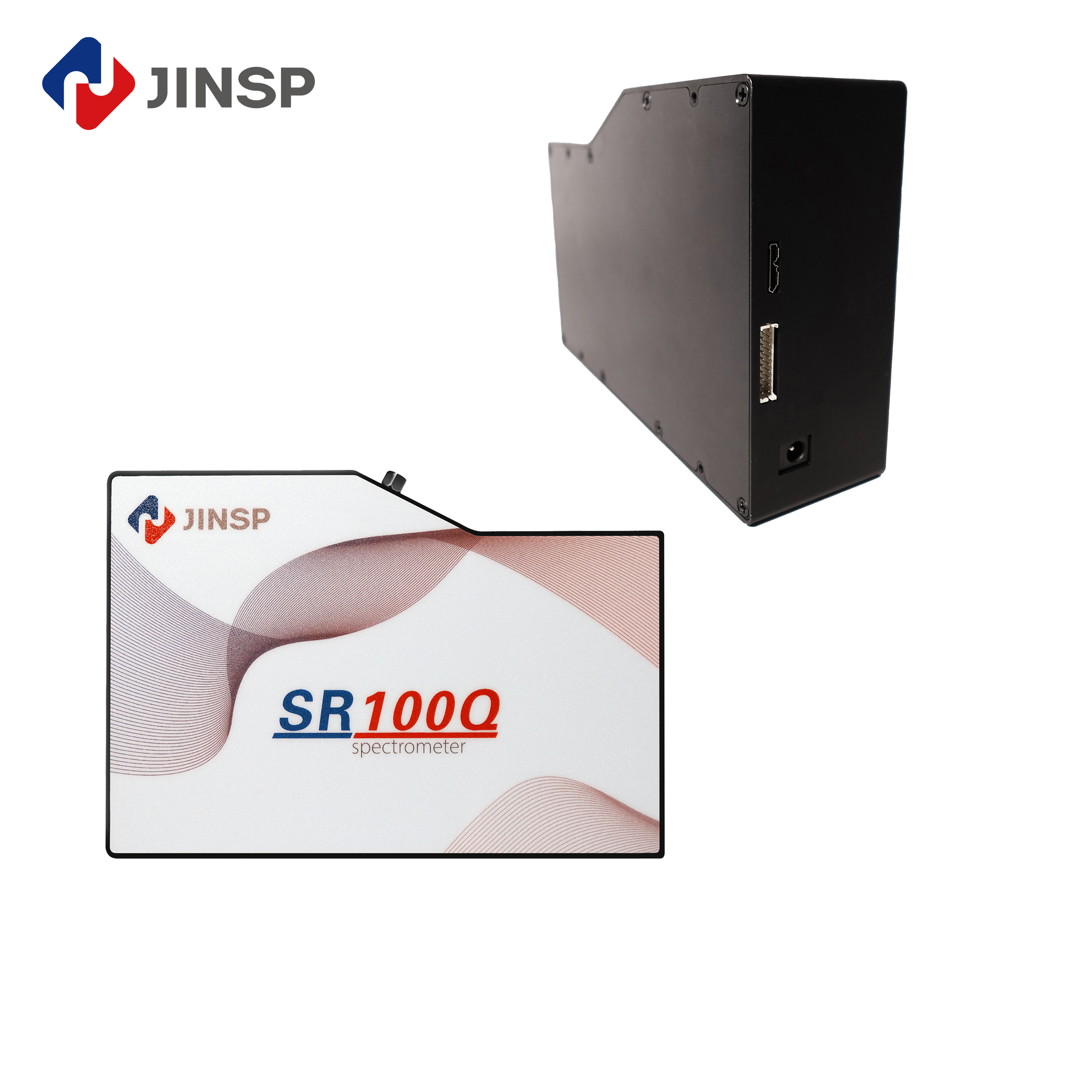

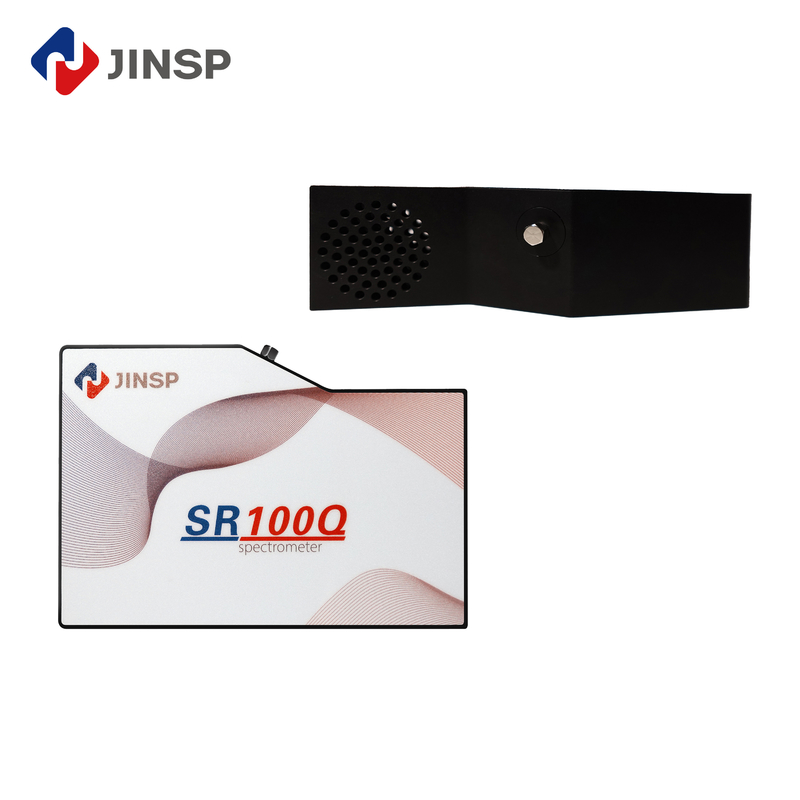

Ultra High Sensitivity back-thinned CCD Modular Fiber Optic Spectrometer SR100Q

The JINSP SR100Q spectrometer is integrated with the Hamamatsu S7031, a scientific-grade TE-cooled area array CCD chip. With a pixel size of up to 24*24μm and excellent quantum efficiency of up to 92%, it ensures high response in the ultraviolet band and effectively improves the sensitivity and SNR of weak signals. Furthermore, it can realize excellent spectrum signals, and stable and reliable performance based on the advanced high-resolution light path and low-noise, high-speed FPGA signal processing chip.The TE cooling-based CCD greatly reduces dark noise and is well suited for weak lightdetection in scientific research applications.

Specifications:

Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
Effective Pixel	*1024122**
Pixel Size	*2424μm**
Sensing Area	*24.5762.928mm**
Qutuam Efficiency	QE92%peak@650nm,83%@232nm
Spectrual Range	185~1100nm(can be customized)
Resolution	1.2~7.7nm(can be customized)
SNR	1000:1
Dimensions	*185mm126mm53mm*
Weight	1.7kg

Technical Characteristics

► High quantum efficiency, 92%peak@650nm, 83%@232nm

► High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1

► Noise-free clear processing of weak signal in long exposure, strong adaption to environment

► Low-noise and high-speed circuit: USB3.0

Typical Applications:

» Detect absorption, transmittance and reflection Spectrum

» Light source and laser wavelength characterization

» OEM product module: Fluorescence spectrum, Raman spectrum, etc.

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company’s core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.

This strategic move allows JINSP to maintain stringent control over its production processes, ensuring that every product bearing the JINSP brand name meets the highest quality standards. The presence of this manufacturing base not only enhances the company's ability to deliver superior products but also underscores its commitment to excellence in manufacturing.

By having this dedicated facility, JINSP can closely monitor and manage every step of the production chain, from raw material selection to final quality checks, thereby guaranteeing that customers receive products of the utmost quality. This vertical integration approach further strengthens JINSP's market position and enables it to respond swiftly to market demands while maintaining consistent product quality.

FAQ

Q1:This is the first time I use,is it easy to operate?

A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.Also our technicians will offer professional tecnical opearation meetings.

Q2:Can your offer a operation traning?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support
( installation , training, debugging, maintenance ).

Q3:What's your website?
A3:You can visit:www.jinsptech.com

Q4:What about your quality assurance?

A4:We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
