200nm-1100nm Fiber Optic Spectrometer The Perfect Tool for Scientific and Industrial Applications Integration Time 4ms-900s

Contact Now

200nm-1100nm Fiber Optic Spectrometer The Perfect Tool for Scientific and Industrial Applications Integration Time 4ms-900s

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	30-400 working days
Payment Terms :	T/T, Western Union	Supply Ability :	100PCS/30-40 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001 CE	Model Number:	SR100B
Document:	Product Brochure PDF

Detail Information
Spectrual Range:	200nm - 1100nm	Effective Pixels:	2048*64
Pixel Size:	28.672*0.896mm	Integration Time:	4ms~900s
Dimensions:	180mm120mm50mm	Weight:	1.2kg
Highlight:	Scientific Fiber Optic Spectrometer , Industrial Fiber Optic Spectrometer , 200nm-1100nm Fiber Optic Spectrometer

Product Description

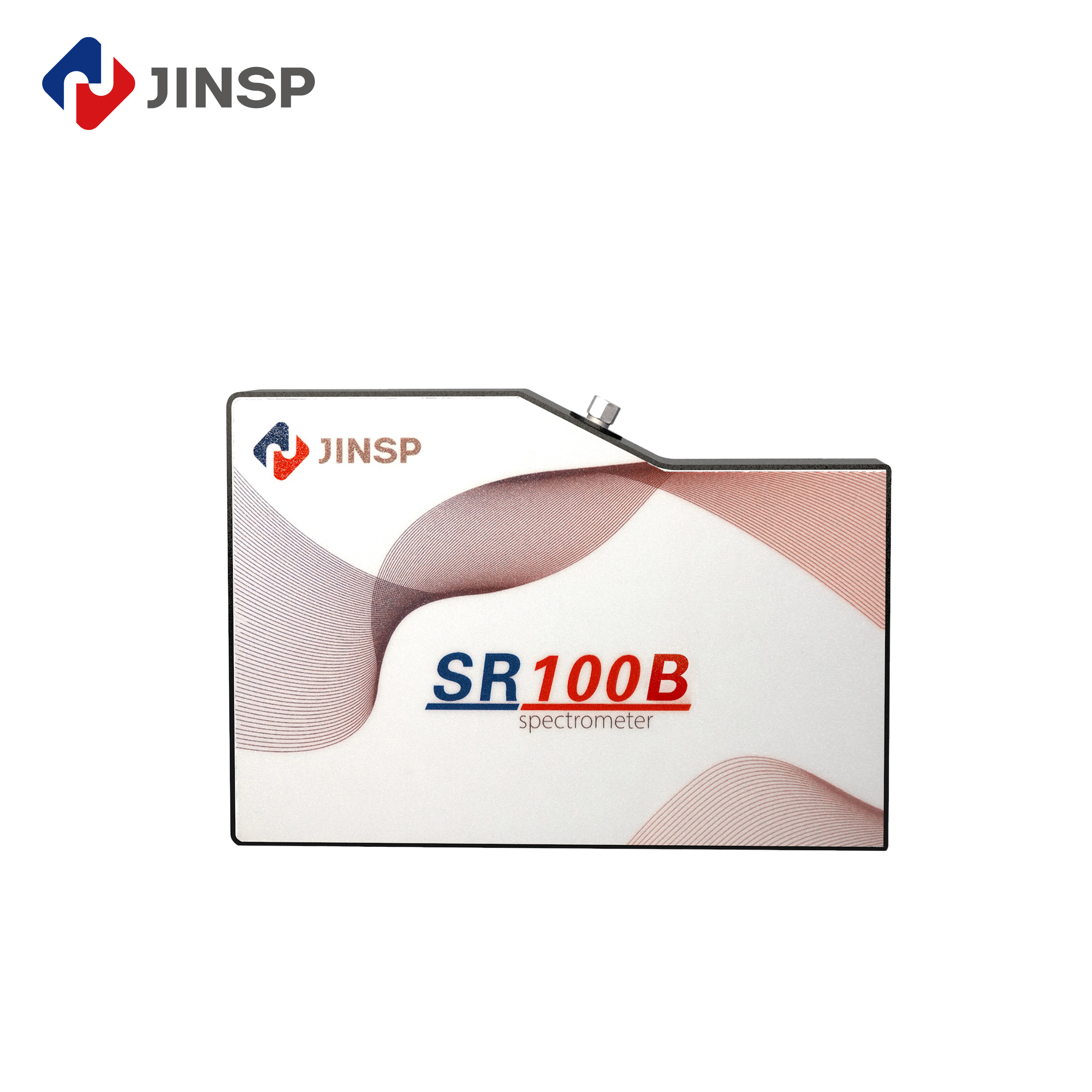

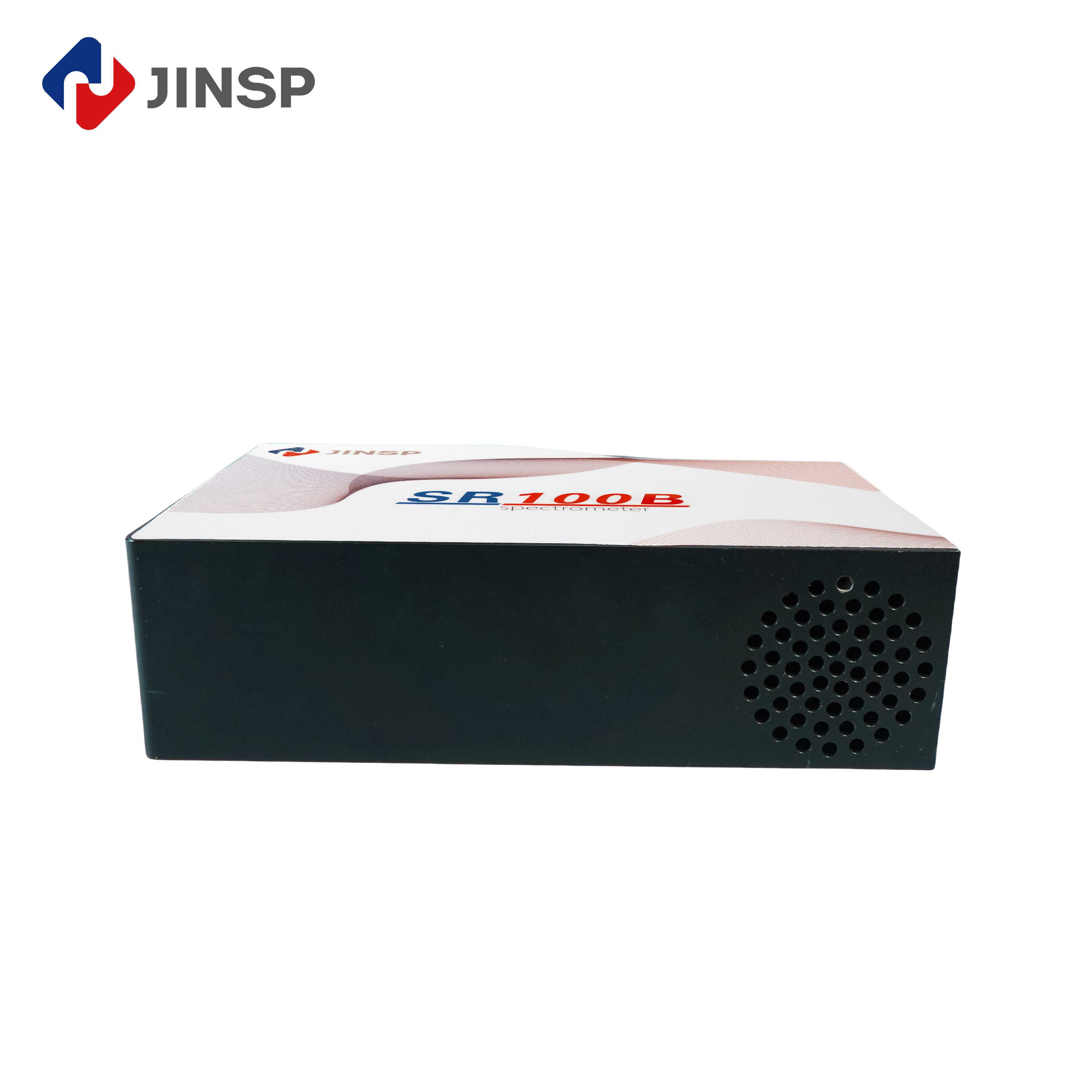

200nm-1100nm Fiber Optic Spectrometer

The Perfect Tool for Scientific and Industrial Applications

Product Overview

The SR100B spectrometer is a high-performance device designed for industrial, laboratory, and research environments. Featuring the Hamamatsu S10420 CCD chip, it offers exceptional spectral analysis capabilities with stable and consistent readings.

Key Specifications

Attribute	Value
Spectral Range	200nm - 1100nm
Effective pixels	2048*64
Pixel Size	28.672*0.896mm
Integration Time	4ms~900s
Dimensions	180mm120mm50mm
Weight	1.2kg

Technical Features

Backlit array CCD UV enhanced High Sensitivity
2048x64 pixel sensor array with 14x14μm pixel size
Customizable gratings and slit widths for tailored resolution
High-resolution optical path with FPGA signal processing
Wide spectral range (200-1100nm) with exceptional quantum efficiency

Detailed Parameters

Detector Specifications

Detector	Back-illuminated cooling Hamamatsu S10420
Effective Pixel	2048*64
Pixel Size	14*14μm
Sensing Area	28.672*0.896mm

Optical Parameters

Optical Design	F/4 cross type
Numerical Aperture	0.13
Focal Length	100mm
Entrance Slit Width	10μm,25μm,50μm,100μm,200μm (customizable)
Fiber Interface	SMA905, free space

Electrical Parameters

Integration Time	4ms~900s
Data Output Interface	USB3.0, RS232, RS485, 20pin connector
ADC Bit Depth	16-bit
Power Supply	5V
Operating Current	<3.5A

Physical Parameters

Operating Temperature	10℃~40℃
Storage Temperature	-20℃~60℃
Operating Humidity	<90%RH (no condensation)

Product Models

Model	Spectral Range(nm)	Resolution(nm)	Slit(μm)
SR100B-G21	200~1100	2.2 (50μm) 1.5 (25μm) 1.0 (10μm)	50,25,10
SR100B-G23	200~875	1.6 (50μm) 1.0 (25μm) 0.7 (10μm)	50,25,10
SR100B-G24	350~1025	1.6 (50μm) 1.0 (25μm) 0.7 (10μm)	50,25,10
SR100B-G28	200~345	0.35 (50μm) 0.2 (25μm) 0.14 (10μm)	50,25,10

Technical Characteristics

High sensitivity with back-illuminated detector and optimized ultraviolet band
High resolution (<1.0nm@10μm in 200~1100nm range)
High flexibility (180~1100nm) with multiple interface compatibility (USB3.0, RS232, RS485)
High reliability with ultra-high SNR and excellent thermal performance

Typical Applications

Absorption, transmittance and reflection spectrum detection
Light source and laser wavelength characterization
OEM product modules: Fluorescence spectrum, Raman spectrum, etc.

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. With over 200 patent applications, our core technologies are internationally leading.

Headquartered in Beijing with a manufacturing facility in Jiangsu, China, we hold ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications, along with various industry-specific certifications.

Frequently Asked Questions

Q1: This is my first time using the spectrometer. Is it easy to operate?

A1: We provide an English manual and guide video, along with professional technical operation meetings with our technicians.

Q2: Do you offer operation training?

A2: Your technicians can receive training at our factory, or our engineers can provide local support including installation, training, debugging, and maintenance.

Q3: What's your website?

A3: Visit us at: www.jinsptech.com

Q4: What about your quality assurance?

A4: All goods undergo quality inspection before shipment, and we can provide inspection photos upon request.
