Handheld Laser Induced Breakdown Spectroscopy LIBS Analyser Laser For Copper based metal elements analysis

Contact Now

Handheld Laser Induced Breakdown Spectroscopy LIBS Analyser Laser For Copper based metal elements analysis

Minimum Order Quantity :	1PC	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	30 working days
Payment Terms :	T/T	Supply Ability :	100 PCS PER MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LB1000S
Document:	Product Brochure PDF

Detail Information
Spectral Range Performance:	180nm ~ 460nm	Laser Wavelength:	1535nm
Laser Safety:	Class1	Continuous Working Time:	8h
Weight:	Approximate Weight With Battery: 1.9kg	WIFI:	2.4GHz 802.11n/b/a
Memory:	16Gb	Working Temperature:	-10℃ ~ +40℃
Highlight:	LIBS analyser Laser for QA , LIBS analyser Laser for QC , handheld laser induced breakdown spectroscopy

Product Description

Handheld Laser Induced Breakdown Spectroscopy LIBS Analyser Laser For Copper based metal elements analysis

Product Specifications

Spectral range performance	180nm ~ 460nm
Laser wavelength	1535nm
Laser safety	Class1
Continuous working time	8h
Weight	Approximate weight with battery: 1.9kg
WIFI	2.4GHz 802.11n/b/a
Memory	16Gb
Working temperature	-10℃ ~ +40℃

Product Overview

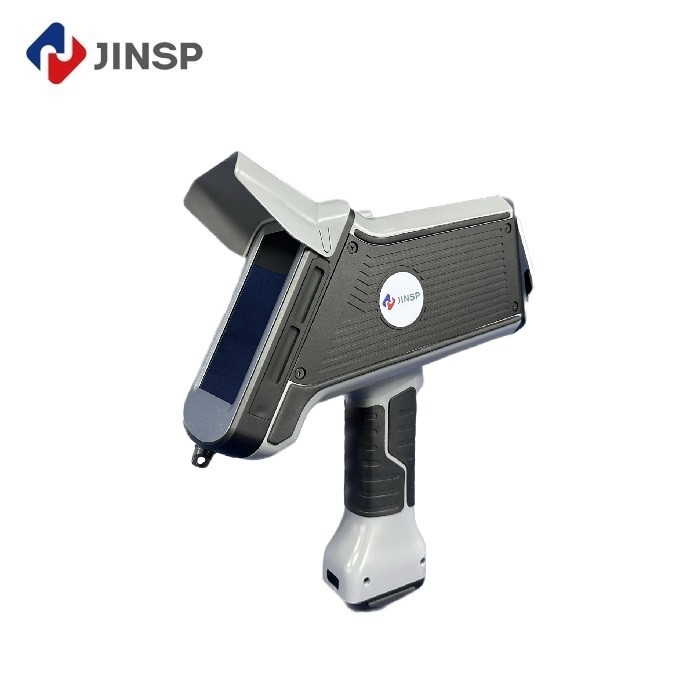

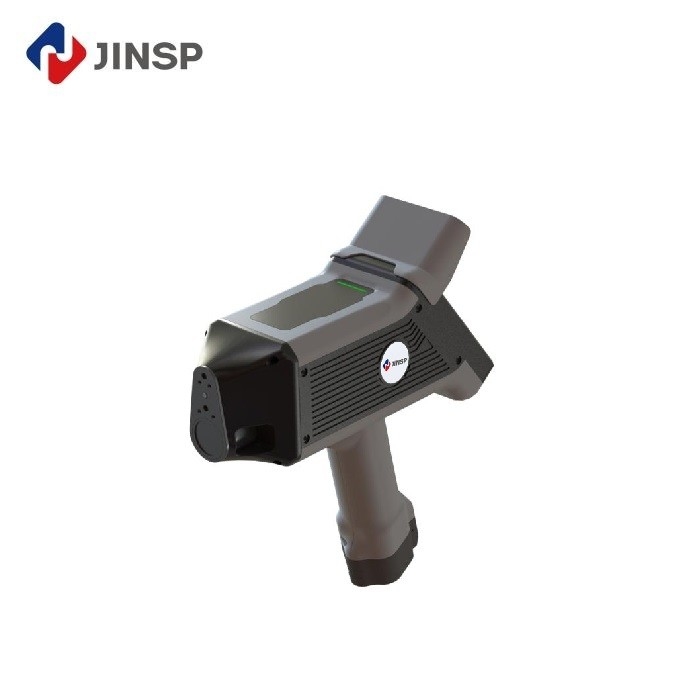

The JINSP LB1000S Handheld LIBS Analyzer provides rapid, accurate, and comprehensive metal element analysis. Utilizing eye-safe lasers, it delivers precise element content measurements in just 5 seconds, eliminating the need for complex sample preparation.

Simply prepare a 5mm diameter testing surface by grinding, and the analyzer provides immediate on-site results with unmatched efficiency and simplicity.

Key Features

Class 1 laser safety (1535nm wavelength)
5-second analysis time
No sample preparation required
5.0-inch capacitive touch screen
8-hour continuous operation
Lightweight design (1.9kg with battery)

Technical Specifications

Detection Alloy Matrix	Aluminium based elements: Al, Si, Fe, Cu, Zn, Mg, Mn, Ni, Cr, Ti, Pb, Sn Iron based elements: Fe, Cr, Ni, Mn, Si, Ti, Cr, Mo, V, Co Copper based elements: Cu, Zn, Mn, Al, Ni, Pb, Sn, Fe
Spectral range	180nm ~ 460nm
Laser wavelength	1535 nm
Display screen	5.0-inch capacitive touch screen
Working environment	Temperature: -5 to 40℃. Humidity: ≤95%RH, no condensation
Sample types	Bulk solids, cylinders, sheets, wires (≥1mm diameter), thin slices, large blocks, lines, particles
Communication mode	4G, Bluetooth, WIFI

Element Detection Range

Aluminium Based

Main Element	LOD (ppm)	LOD %(Min)	LOD %(Max)
Fe	＜2000	0	1

Copper Based

Main Element	LOD (ppm)	LOD %(Min)	LOD %(Max)
Al	＜800	0	8

Iron Based

Main Element	LOD (ppm)	LOD %(Min)	LOD %(Max)
V	1000	0	2

Technical Advantages

Safety: Class 1 eye-safe lasers eliminate radiation hazards with built-in safety mechanisms
Efficiency: 5-second analysis for various metal shapes and forms
Intelligence: Automatic metal matrix identification with Beidou positioning and real-time data upload
Accuracy: Full-element detection including light elements (Al, Mg, Si)
Compatibility: Supports aluminum, copper, and iron-based matrices with customization options

Applications

Scrap metal recycling and grade identification
Incoming material inspection and quality control
Mineral exploration and ore grade analysis
Process control during metal smelting
Material reliability identification (PMI)

Product Images

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology, specializing in Raman, FT-IR, and LIBS technologies. With over 200 patents and a team of 30+ R&D engineers including 4 PhDs, JINSP products are used in over 30 countries with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

Q1: Is the analyzer easy to operate for first-time users?

A1: We provide comprehensive English manuals and instructional videos, along with professional technical support from our engineers.

Q2: Do you offer operation training?

A2: Training is available at our facility or we can provide on-site support including installation, training, and maintenance.

Q3: How can I receive the best price quickly?

A3: Please provide detailed specifications with your inquiry for an accurate and prompt quotation.

Q4: What if the analyzer has problems?

A4: The product includes a one-year warranty with free repairs. Our technicians provide remote diagnostics and support.

Q5: What about quality assurance?

A5: All products undergo rigorous quality inspection before shipment, with documentation available upon request.
