Handheld LIBS Element Analyzer for iron based metal elements quick analysis

Contact Now

Handheld LIBS Element Analyzer for iron based metal elements quick analysis

Minimum Order Quantity :	1PC	Price :	Negotiable
Packaging Details :	1PC/BOX	Delivery Time :	30 working days
Payment Terms :	T/T	Supply Ability :	20 PCS PER MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LB1000S
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1535nm	Laser Safety:	Class1
Laser Pulse Frequency:	1000Hz	Continuous Working Time:	8h
WIFI:	2.4GHz 802.11n/b/a	Memory:	16Gb
Working Temperature:	-10℃ ~ +40℃	Weight:	Approximate Weight With Battery: 1.9kg
Highlight:	Handheld LIBS Element Analyzer , Accurate Handheld LIBS Analyzer , 1535nm Handheld LIBS Analyzer

Product Description

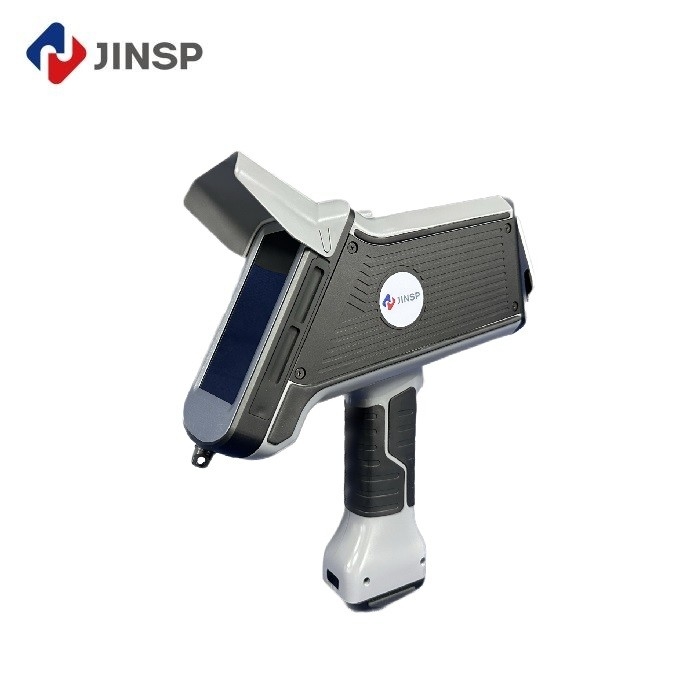

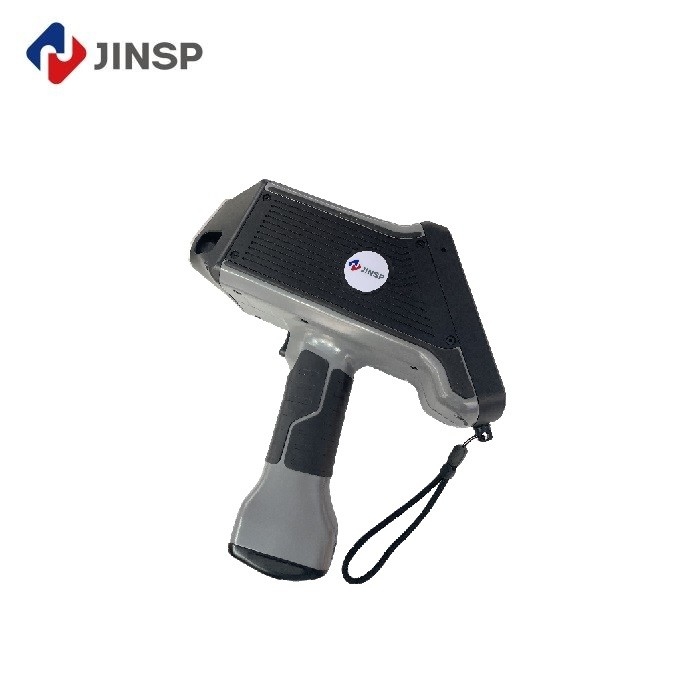

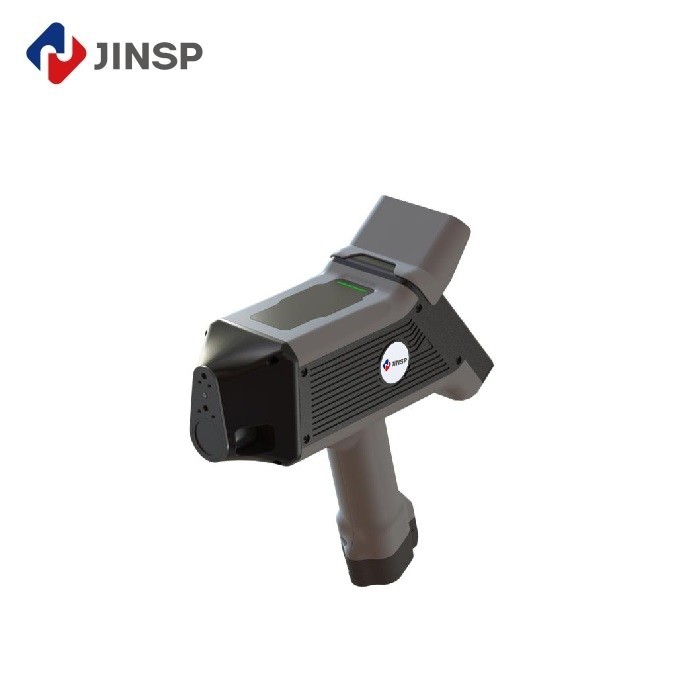

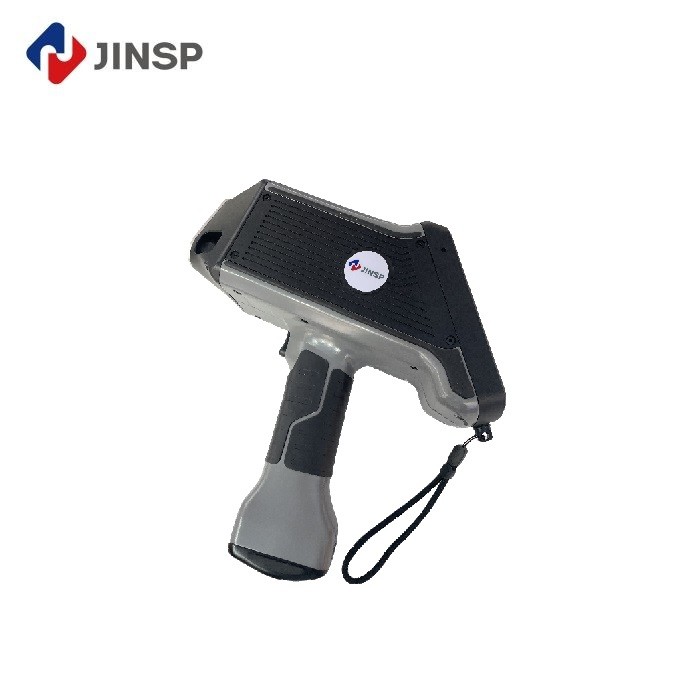

Handheld LIBS Element Analyzer for Iron Based Metal Elements Quick Analysis

The JINSP LB1000S is a 1535nm Class 1 Eye-safe Laser Handheld LIBS Element Analyzer that delivers quick, accurate, and comprehensive metal analysis in just 5 seconds. This innovative device eliminates the need for cumbersome pretreatment, providing immediate results for various metal matrices.

Key Advantages:

Class 1 laser safety - the lowest risk classification
5-second analysis time for immediate results
No sample preparation required - simply expose a 5mm testing plane
Lightweight design at just 1.9kg with battery
8-hour continuous operation capability

Technical Specifications

Attribute	Value
Laser wavelength	1535nm
Laser safety	Class1
Laser pulse frequency	1000Hz
Continuous working time	8h
WIFI	2.4GHz 802.11n/b/a
Memory	16Gb
Working temperature	-10℃ ~ +40℃
Weight	Approximate weight with battery: 1.9kg

Detection Capabilities

Detection Alloy Matrix	Elements
Aluminium based elements	Al, Si, Fe, Cu, Zn, Mg, Mn, Ni, Cr, Ti, Pb, Sn
Iron based elements	Fe, Cr, Ni, Mn, Si, Ti, Cr, Mo, V, Co
Copper based elements	Cu, Zn, Mn, Al, Ni, Pb, Sn, Fe

Element Detection Range

Comprehensive detection ranges for aluminium, copper, and iron based matrices with precise limits of detection (LOD) in both ppm and percentage values.

Product Characteristics

Safety: 1535nm CLASS 1 eye-safe lasers eliminate radiation hazards with built-in safety features
Efficiency: 5-second analysis for various metal shapes including sheets, blocks, wires, and particles
Intelligence: Automatic metal matrix identification with Beidou positioning and real-time data upload via 4G/5G/WIFI
Accuracy: Full-element detection including light elements (Al, Mg, Si) with industry-leading precision
Compatibility: Supports aluminum, copper, and iron-based matrices with customizable options

Typical Applications

Recycled metal recovery and utilization
Iron based metal element analysis
Quality control in metal production
Material verification in manufacturing

Company Profile

JINSP Company Limited has received numerous awards including the National Science and Technology Commission's Scientific Achievement Certificate, China Patent Excellence Award, and Geneva International Invention Award. The company has participated in drafting several national and international standards, including IEC 63085 and GB/T standards for spectroscopy equipment.

Frequently Asked Questions

Q1: Is the analyzer easy to operate for first-time users?

A1: We provide an English manual and guide video, along with professional technical support from our engineers.

Q2: Do you offer operation training?

A2: Training is available at our facility or we can provide on-site support including installation, training, and maintenance.

Q3: How can I get the best price quickly?

A3: Provide detailed requirements in your inquiry for a prompt, customized quotation.

Q4: What if I encounter problems with the analyzer?

A4: The product comes with a one-year warranty. Our technicians will diagnose and repair any issues remotely or on-site.

Q5: What quality assurance do you provide?

A5: All products undergo rigorous quality inspection before shipment, with documentation available upon request.
