Human Eye Safe Portable Handheld LIBS Analyzer for Detection of Aluminum Based Metal

Contact Now

Human Eye Safe Portable Handheld LIBS Analyzer for Detection of Aluminum Based Metal

Minimum Order Quantity :	1PC	Price :	Negotiable
Packaging Details :	International Shipping Pakcage	Delivery Time :	30 working days
Payment Terms :	T/T	Supply Ability :	100 PCS PER MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LB1000S
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1535nm	Laser Safety:	Class1
Spectral Range:	180nm ~ 460nm	Touch Screen:	5" Color Touch Screen
Weight:	Around 1.9kg	Working Temperature:	-10℃ ~ +40℃
Highlight:	Intelligent Recognition LIBS Metal Analyzer , Intelligent Recognition libs analyser , LIBS Metal Analyzer 1535nm

Product Description

Human Eye Safe Portable Handheld LIBS Analyzer for Detection of Aluminum Based Metal

Key Specifications

Laser wavelength	1535nm
Laser safety	Class1
Spectral range	180nm ~ 460nm
Touch screen	5" Color touch screen
Weight	Around 1.9kg
Working temperature	-10℃ ~ +40℃

Product Overview

The JINSP LB1000S Handheld LIBS Analyzer delivers rapid, accurate analysis of aluminum-based metals in just 5 seconds using eye-safe 1535nm Class 1 lasers. This portable analyzer eliminates complex sample preparation - simply prepare a 5mm diameter testing surface for immediate on-site results.

Combines safety, efficiency, intelligence, accuracy, and portability for streamlined metal inspection workflows.

Technical Specifications

Detection Alloy Matrix	Aluminum based, Iron based, Copper based elements
Spectral range	180nm ~ 460nm
Laser wavelength	1535 nm (eye-safe)
Laser safety	Class1 (lowest risk)
Display screen	5.0-inch capacitive touch screen
Memory	16Gb
Working environment	Temperature: -5 to 40℃, Humidity: ≤95%RH (no condensation)
Sample types	Bulk solids, cylinders, sheets, wires (≥1mm diameter), thin slices, particles
Communication	4G, Bluetooth, WIFI
Operating time	8 hours

Element Detection Ranges

Aluminum Based Elements

Main Element	LOD (ppm)	LOD %(Min)	LOD %(Max)
Fe	＜2000	0	1
Si	500	0	8
Zr	2000	0	8
Pb	2000	0	1
Cu	＜500	0	10
Zn	＜1000	0	2
Mn	1000	0	0.1
Ni	＜500	0	0.1
Ti	＜500	0	0.1
Mg	＜500	0	18
Al		Balance	Balance

Copper Based Elements

Main Element	LOD (ppm)	LOD %(Min)	LOD %(Max)
Al	＜800	0	8
Si	1500	0	0.5
Pb	500	0	5
Zn	＜800	0	40
Cu		Balance	Balance

Iron Based Elements

Main Element	LOD (ppm)	LOD %(Min)	LOD %(Max)
V	1000	0	2
Al	＜1000	0	1
Si	＜5000	0	3
Fe		Balance	Balance

Technical Features

Safety: 1535nm CLASS 1 eye-safe lasers eliminate radiation hazards with built-in safety mechanisms
Efficiency: Delivers results in 5 seconds for various metal forms (sheets, blocks, wires, particles)
Intelligence: Automatic metal matrix identification with Beidou positioning and real-time data upload
Accuracy: Full-element detection including light elements (Al, Mg, Si) for precise analysis
Compatibility: Supports aluminum, copper, and iron-based matrices with customizable options

Applications

Recycled metal recovery
Mineral exploration
Quality control in metal production

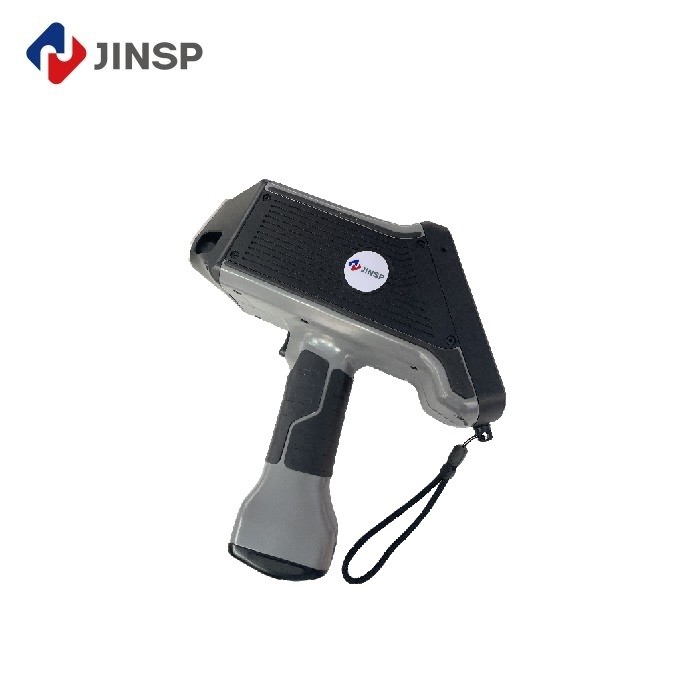

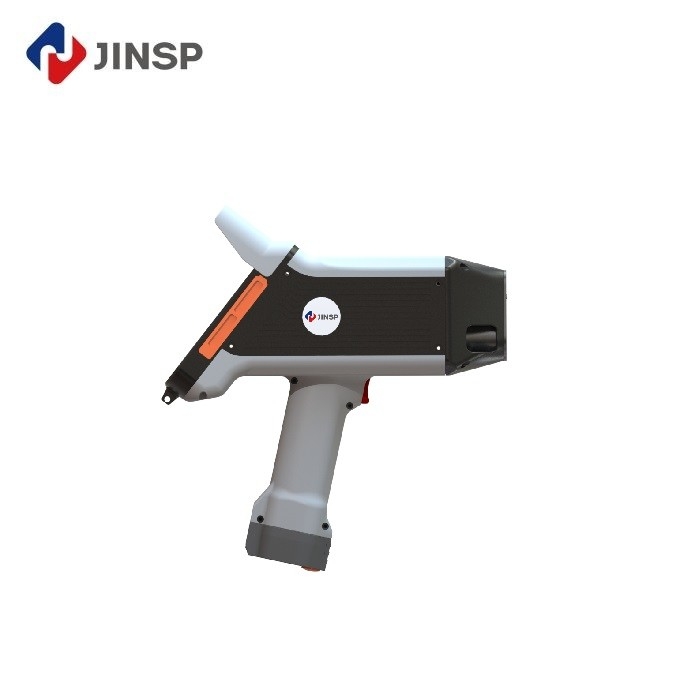

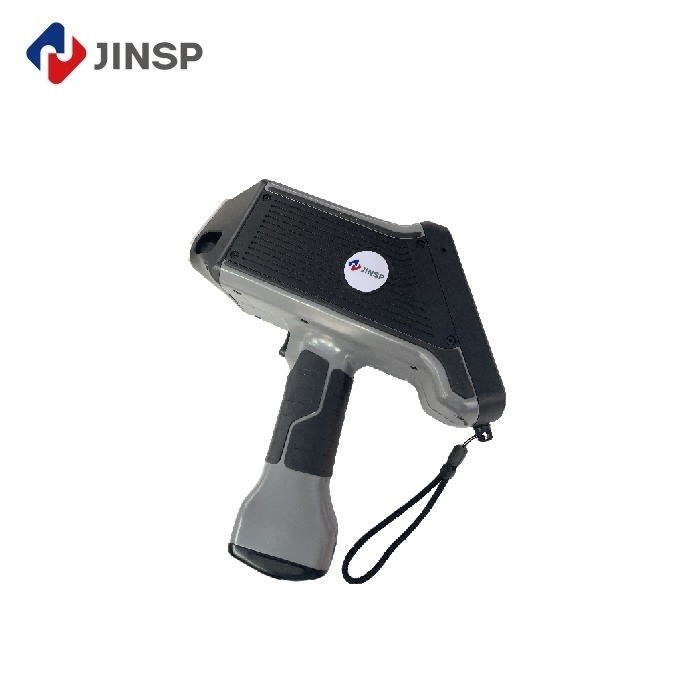

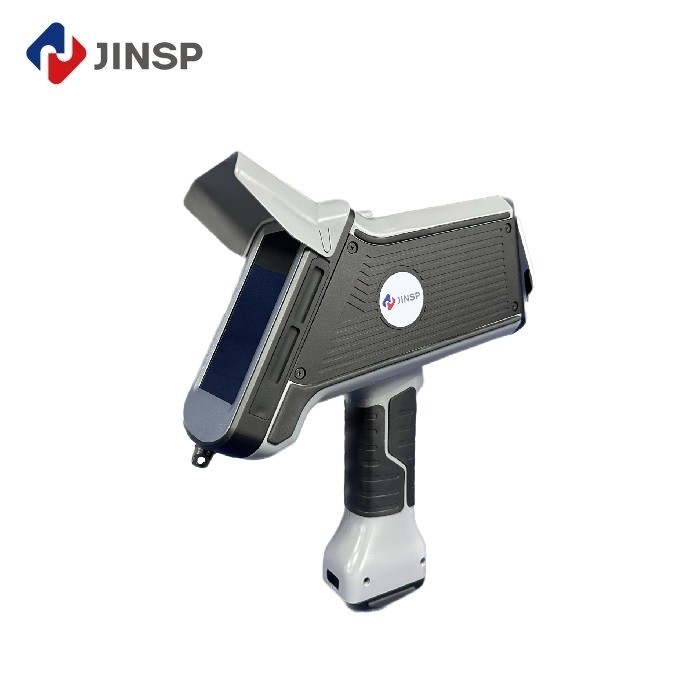

Product Images

Company Profile

JINSP Company Limited is a professional supplier with 17+ years of experience in spectral detection technologies (Raman, FT-IR, LIBS). With 200+ patents and international-leading core technologies, JINSP offers 20+ spectroscopic products exported to 30+ countries (3,000+ units sold).

Our 30+ R&D team (including 4 Ph.D.) specializes in customized solutions, committed to delivering innovative, customer-centric products that exceed expectations.

Support & Services

Our technical support ensures optimal analyzer performance with:

Installation and setup assistance
Training and education
Maintenance and repair
Calibration and certification
Software updates

Frequently Asked Questions

Q: What is the brand and model of this analyzer?

A: JINSP LB1000S

Q: Where is it manufactured?

A: China

Q: What is the minimum order quantity?

A: 1 unit

Q: What are the payment terms?

A: T/T bank transfer

Q: How is it packaged?

A: 1 piece per box
