Highly Accurate Handheld LIBS Analyzer for Alloys With Intelligent Matrix Recognition

Contact Now

Highly Accurate Handheld LIBS Analyzer for Alloys With Intelligent Matrix Recognition

Minimum Order Quantity :	1PC	Price :	Negotiable
Packaging Details :	International Shipping Pakcage	Delivery Time :	30-45 working days
Payment Terms :	T/T	Supply Ability :	100 PCS PER MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LB1000S
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1535nm	Laser Safety:	Class1
Spectral Range:	180nm ~ 460nm	WIFI (specification):	2.4GHz 802.11n/b/a
Continuous Working Time:	8h	Memory:	16GB
Highlight:	Highly Accurate Handheld Elemental Analyzer , Highly Accurate portable element analyzer , Intelligent Handheld Elemental Analyzer

Product Description

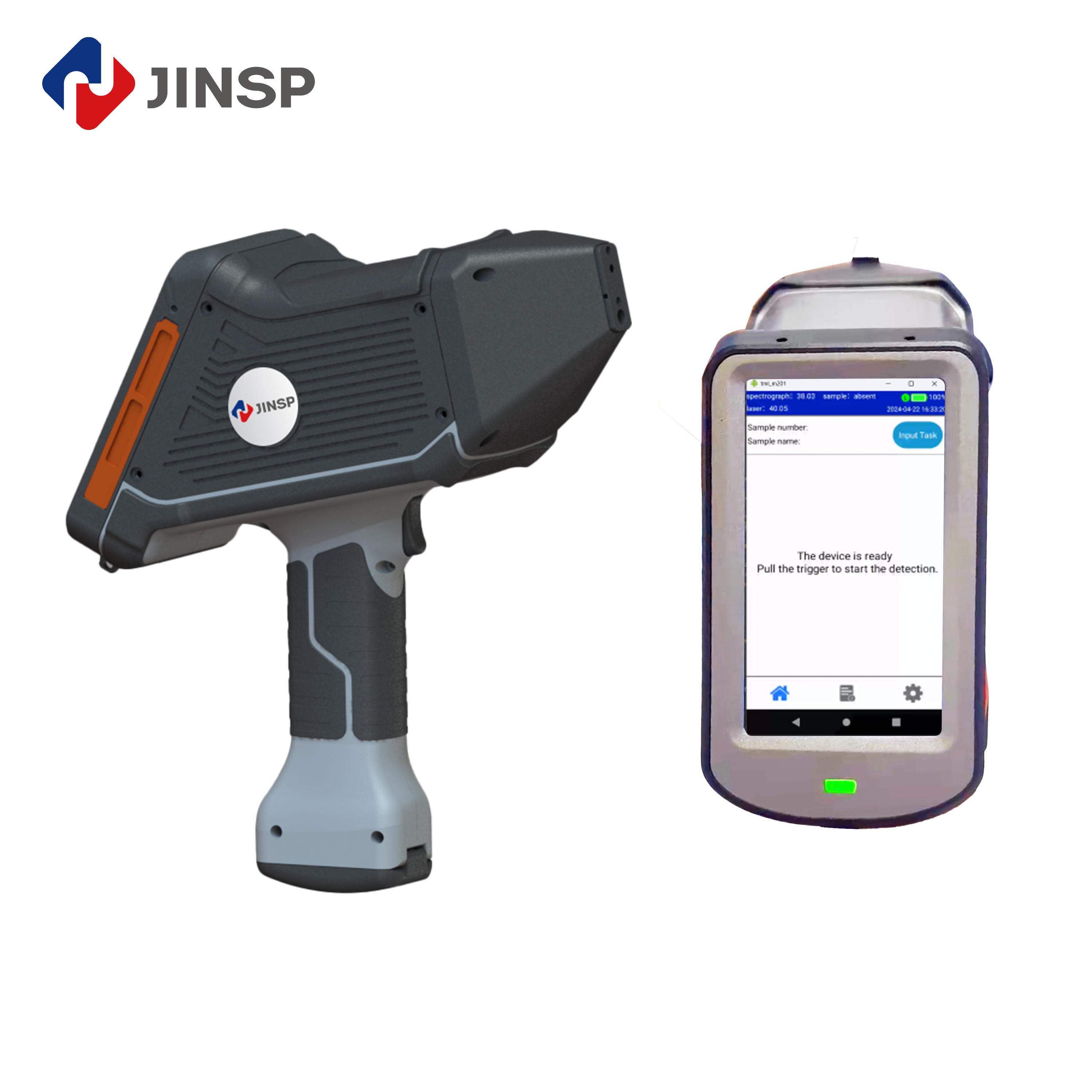

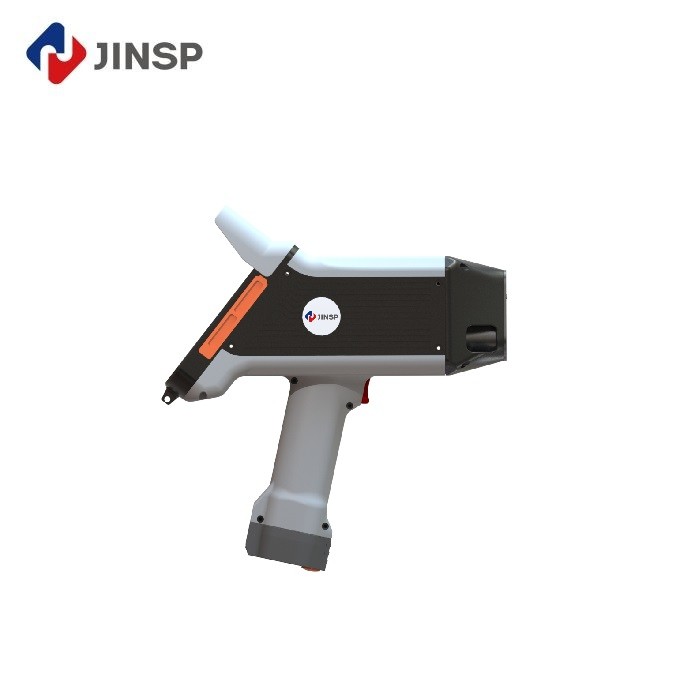

Highly Accurate Handheld LIBS Analyzer for Alloys With Intelligent Matrix Recognition

Key Features

5-second analysis with eye-safe 1535nm Class 1 laser
No sample pretreatment required - just expose 5mm testing plane
Intelligent matrix recognition for aluminum, copper, and iron-based alloys
Full-element detection including light elements (Al, Mg, Si)
8-hour continuous operation with 16GB memory
4G, Bluetooth, and WiFi connectivity with Beidou positioning

Technical Specifications

Attribute	Value
Laser Wavelength	1535nm
Laser Safety	Class 1
Spectral Range	180nm ~ 460nm
WiFi Specification	2.4GHz 802.11n/b/a
Continuous Working Time	8 hours
Memory	16GB
Display	5.0-inch capacitive touch screen
Working Environment	-5 to 40℃, ≤95%RH (no condensation)

Element Detection Capabilities

Aluminum Based Alloys

Element	LOD (ppm)	LOD % (Max)
Fe	<2000	1
Si	500	8
Mg	<500	18
Cu	<500	10
Zn	<1000	2

Copper Based Alloys

Element	LOD (ppm)	LOD % (Max)
Zn	<800	40
Ni	2000	28
Mn	<500	13
Pb	500	5
Al	<800	8

Iron Based Alloys

Element	LOD (ppm)	LOD % (Max)
Cr	5000	22
Ni	5000	40
Mn	<1000	22
Mo	1000	6
V	1000	2

Applications

Recycled metal recovery and utilization
Aluminum alloy analysis
Stainless steel verification
Copper alloy testing
Quality control in manufacturing

About JINSP

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology, including Raman, FT-IR, and LIBS technologies. With 200+ patents and 30+ R&D engineers (including 4 PhDs), JINSP products are used nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

Frequently Asked Questions

What is the brand and model of this analyzer?

Brand: JINSP, Model: LB1000S

Where is it manufactured?

Manufactured in China

What is the minimum order quantity?

1 unit

What are the payment terms?

T/T (Bank Transfer)
