Handheld LIBS for detection of alloys low content aluminum Si and the elements before Mg

Contact Now

Handheld LIBS for detection of alloys low content aluminum Si and the elements before Mg

Minimum Order Quantity :	1PC	Price :	Negotiable
Packaging Details :	International Shipping Package	Delivery Time :	30 - 45 working days
Payment Terms :	T/T	Supply Ability :	100 PCS PER MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LB1000S
Document:	Product Brochure PDF

Detail Information
Spectral Range:	180nm ~ 460nm	Laser Wavelength:	1535nm
Laser Safety:	Class1, The Lowest Risk Among All The Laser Classes	Brand Library:	400+, Can Be Added Or Edited
Communication Mode:	4G,Bluetooth,WIFI	Working Temperature:	-10℃ ~ +40℃
Memory:	16GB	Continuous Working Time:	8 Hours
Highlight:	Lightweight Handheld Elemental Analyzer , Handheld Elemental Analyzer ISO9001 Certified , CE Certified portable element analyzer

Product Description

Handheld LIBS Analyzer for Detection of Alloys with Low Content Aluminum, Si and Elements Before Mg

Key Specifications

Spectral range	180nm ~ 460nm
Laser wavelength	1535nm
Laser safety	Class1 (lowest risk)
Brand library	400+ (expandable)
Communication	4G, Bluetooth, WIFI
Operating temperature	-10℃ ~ +40℃
Memory	16GB
Battery life	8 hours continuous

Product Overview

The 1535nm CLASS 1 eye-safe laser technology makes this LIBS Elemental Analyzer completely safe for metal detection applications, eliminating risks associated with X-ray ionizing radiation.

Weighing just 1.9kg, this portable analyzer provides laboratory-grade results in field conditions with detection results available within 5 seconds. Its compact design and 8-hour battery life make it ideal for on-site inspections across various industries.

Detection Capabilities

Aluminum based elements: Al, Si, Fe, Cu, Zn, Mg, Mn, Ni, Cr, Ti, Pb, Sn
Iron based elements: Fe, Cr, Ni, Mn, Si, Ti, Mo, V, Co
Copper based elements: Cu, Zn, Mn, Al, Ni, Pb, Sn, Fe

Sample Compatibility

Analyzes bulk solids, cylinders, sheets, wires (≥1mm diameter), thin slices, large blocks, lines, and particles.

Detection Limits

Aluminum Based Alloys

Element	LOD (ppm)	LOD % (Min)	LOD % (Max)
Fe	<2000	0	1

Copper Based Alloys

Element	LOD (ppm)	LOD % (Min)	LOD % (Max)
Al	<800	0	8

Iron Based Alloys

Element	LOD (ppm)	LOD % (Min)	LOD % (Max)
V	1000	0	2

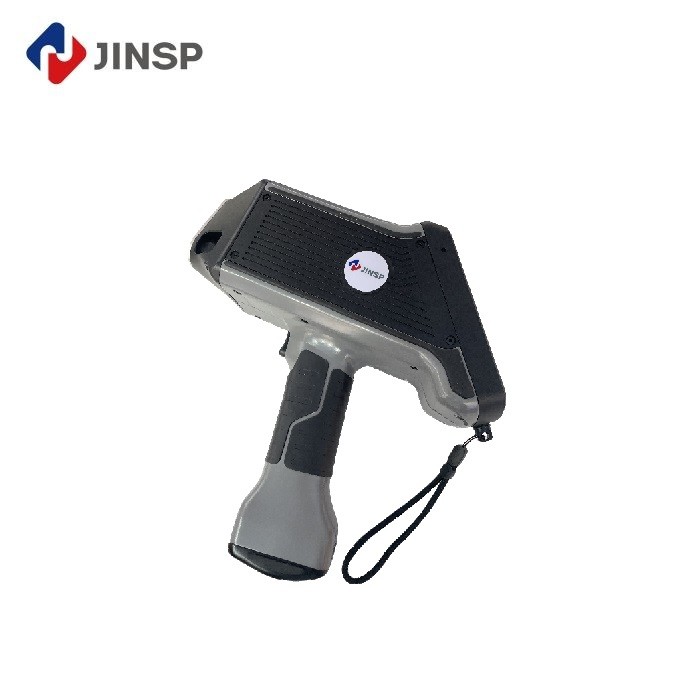

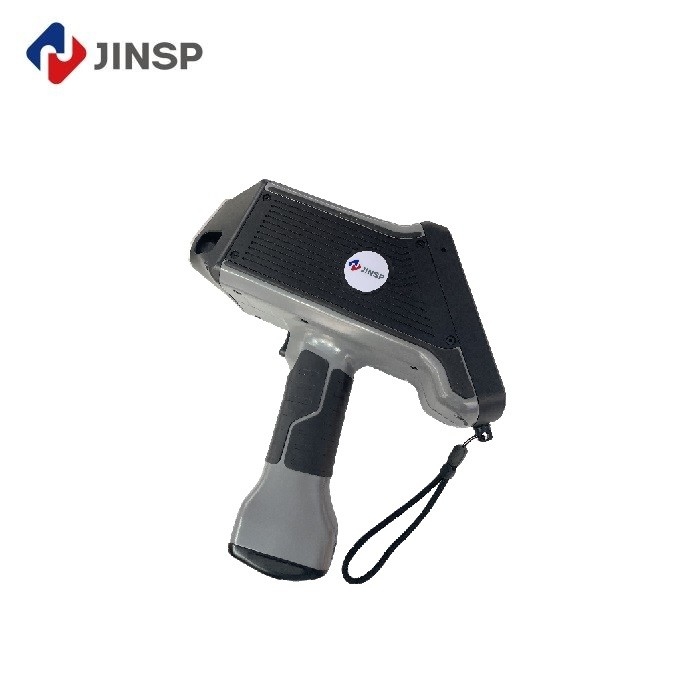

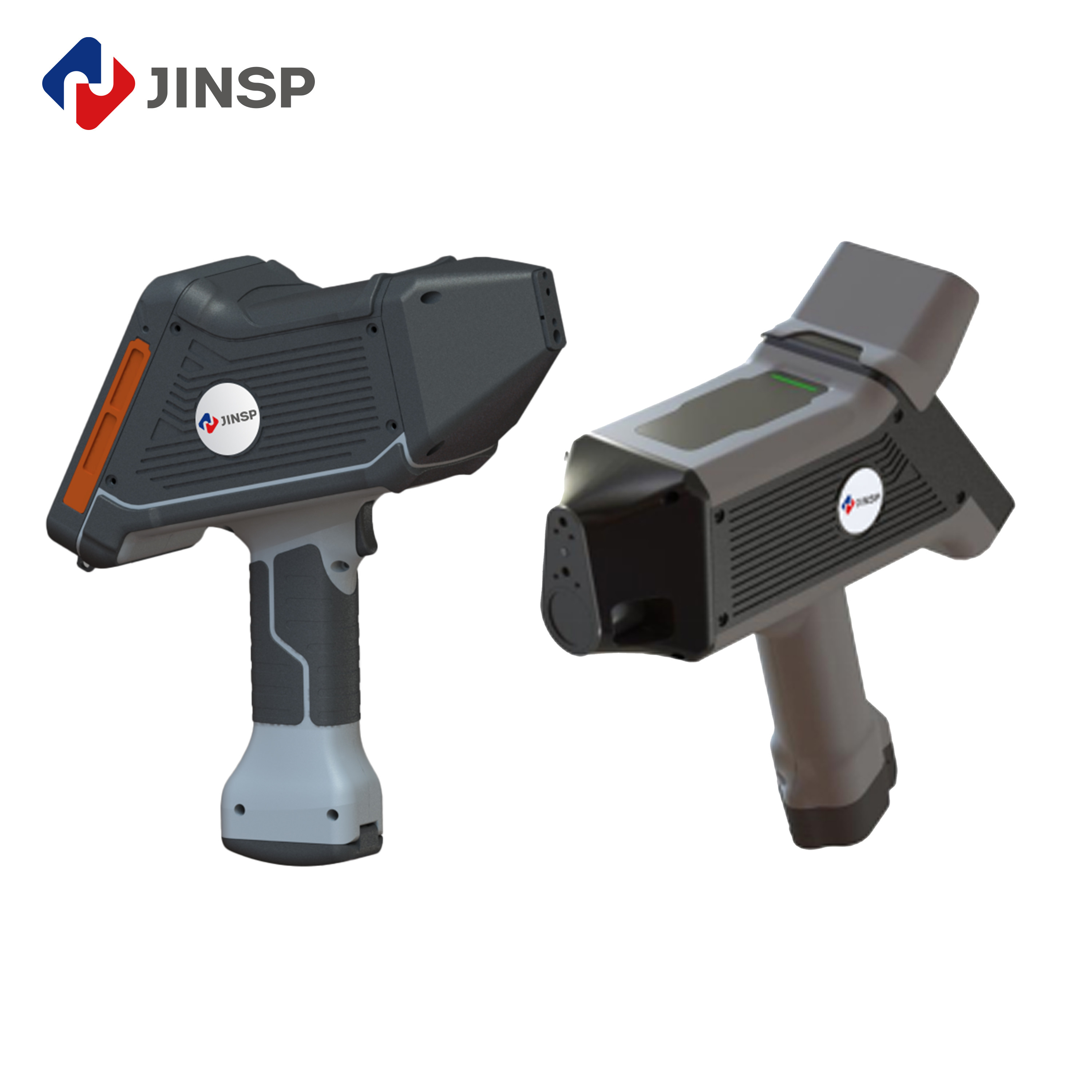

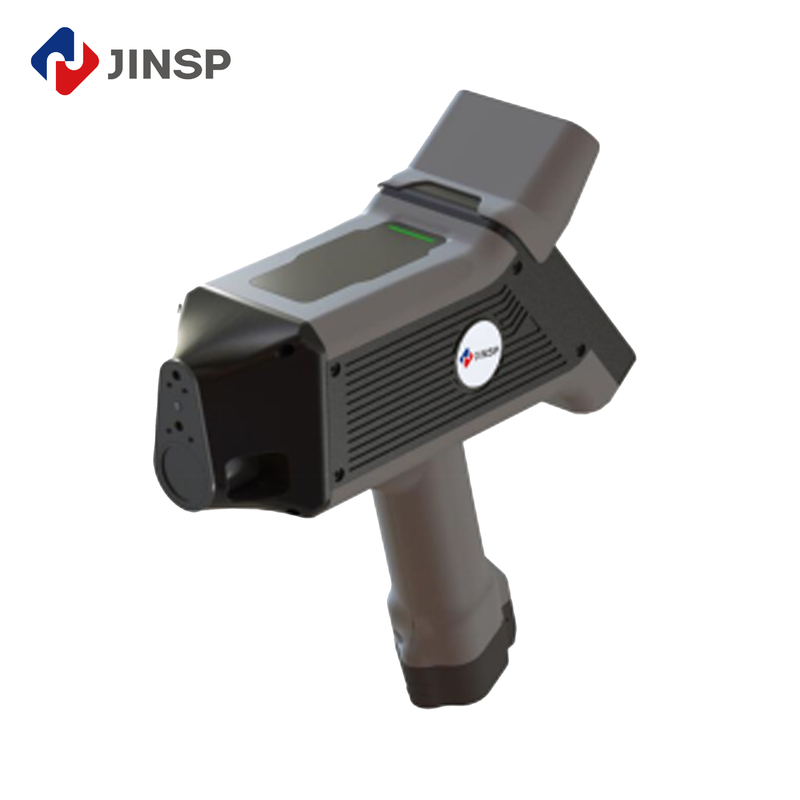

Product Images

Support & Services

Installation and setup support
Calibration and maintenance services
Operator training programs
Repair and replacement services
Software and firmware updates

Manufacturer Information

JINSP Company Limited specializes in spectral detection technology with 17+ years of experience in Raman, FT-IR, and LIBS technologies. With over 200 patents and 30+ R&D engineers (including 4 Ph.D.), JINSP products are used in pharmaceutical, chemical, security, and customs applications across 30+ countries.

Frequently Asked Questions

What is the model number?

Model Number: LB1000S

Where is it manufactured?

Place of Origin: China

What is the minimum order quantity?

Minimum Order Quantity: 1 unit

What are the payment terms?

Payment Terms: T/T (Telegraphic Transfer)

What is the production capacity?

Supply Ability: 100 units per month
