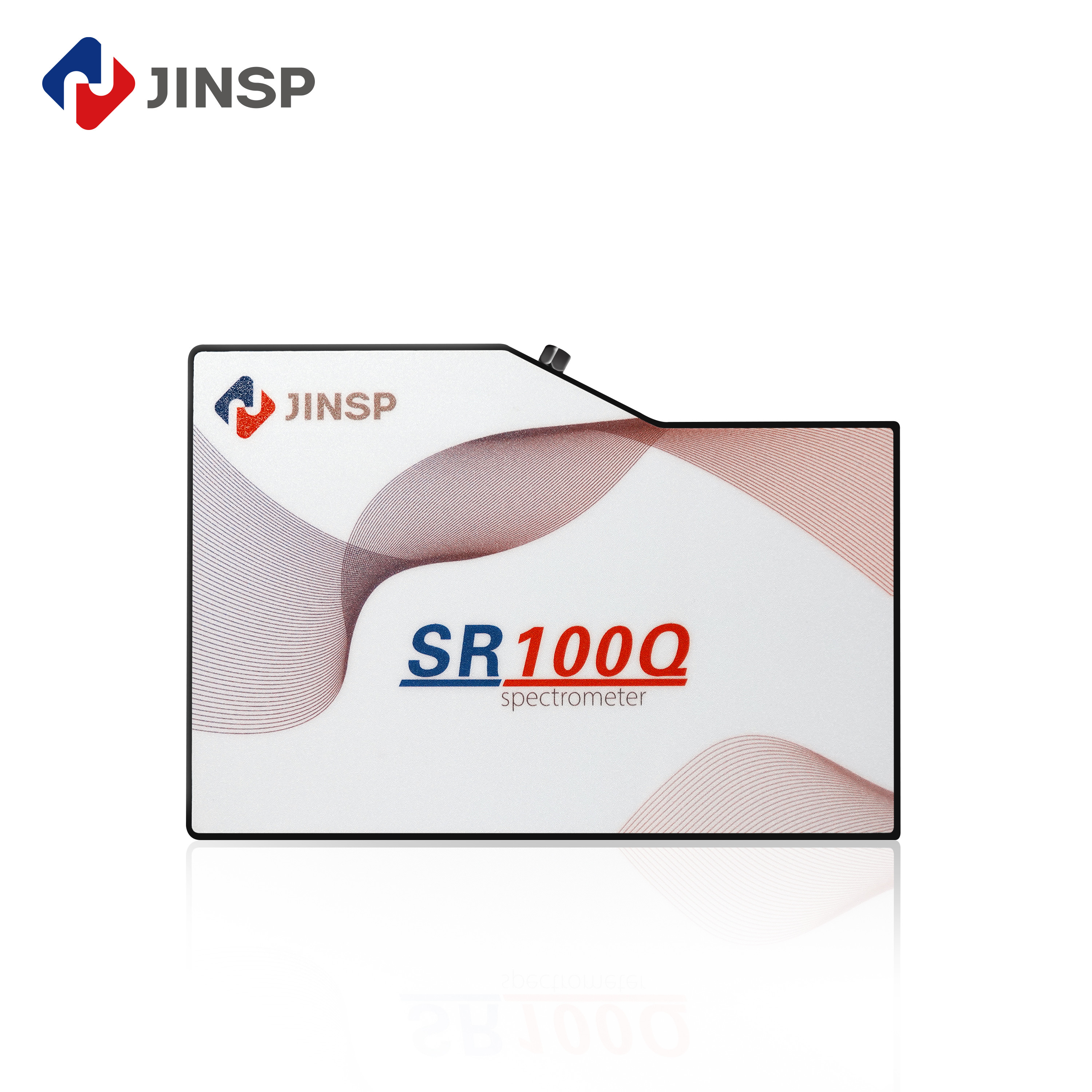

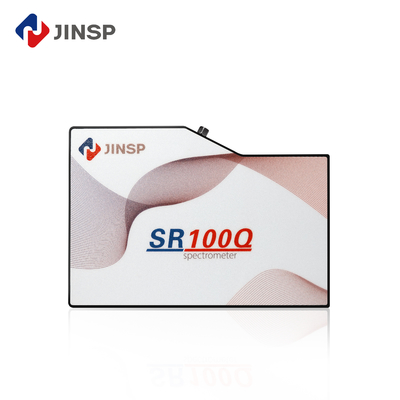

The JINSP SR100Q spectrometer is integrated with the Hamamatsu S7031, a scientific-grade TE-cooled area array CCD chip. With a pixel size of up to 24*24μm and excellent quantum efficiency of up to 92%, it ensures high response in the ultraviolet band and effectively improves the sensitivity and SNR of weak signals. Furthermore, it can realize excellent
spectrum signals, and stable and reliable performance based on the advanced high-resolution light path and low-noise, high-speed FPGA signal processing chip.
The TE cooling-based CCD greatly reduces dark noise and is well suited for weak light detection in scientific research applications. SR100Q offers multiple spectrum ranges to cover the applications of ultraviolet, visible light, and the near-infrared band, such as fluorescence, absorption, and the Raman spectrum.
Features:
- High quantum efficiency, 92%peak@650nm, 83%@232nm
- High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1
- Noise-free clear processing of weak signal in long exposure, strong adaption to environment
- Low-noise and high-speed circuit: USB3.0
- Detect absorption, transmittance and reflection SpectrumLight source and laser wavelength characterization
- OEM product module: Fluorescence spectrum, Raman spectrum, etc.
Technical Parameters:
| Product Attribute |
Value |
| Spectrometer Type |
SR100Q CCD Fiber Optic Spectrometer |
| Chip type |
Area array back-illuminated refrigeration, Hamamatsu S7031 |
| Focal length |
≤100mm |
| Dimensions |
180mm*120mm*50mm |
| Data output interface |
USB3.0, RS232, RS485, 20pin connector |
| Entrance slit width |
10μm ,25μm ,50μm ,100μm ,200μm |
| Weight |
1200g |
Applications:
• Absorption, transmittance and reflectance detection
• Light source and laser wavelength detection
• OEM product module:
Fluorescence spectrum analysis
Raman spectroscopy - petrochemical monitoring, food additive testing
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is JINSP.
Q2: What is the model number of this product?
A2: The model number of this product is SR100Q CCD Fiber Optic Spectrometer.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Is the price of this product negotiable?
A4: Yes, the price of this product is negotiable.
Q5: What are the payment terms for this product?
A5: The payment terms for this product are T/T and Western Union.
