Iron based alloy elements detetion with JINSP Handheld LIBS Analyzer

Contact Now

Iron based alloy elements detetion with JINSP Handheld LIBS Analyzer

Minimum Order Quantity :	1PC	Price :	Negotiable
Packaging Details :	International Shipping Pakcage	Delivery Time :	30-45 working days
Payment Terms :	T/T	Supply Ability :	100 PCS PER MONTH

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	LB1000S
Document:	Product Brochure PDF

Detail Information
Laser Wavelength:	1535nm	Spectral Range:	180nm ~ 460nm
WIFI:	2.4GHz 802.11n/b/a	Working Temperature:	-10℃ ~ +40℃
Memery:	16GB	Weight:	Around 1.9kg
Highlight:	16Gb Memory Portable LIBS Analyzer , Portable LIBS Analyzer Dustproof , Dustproof handheld libs analyzer

Product Description

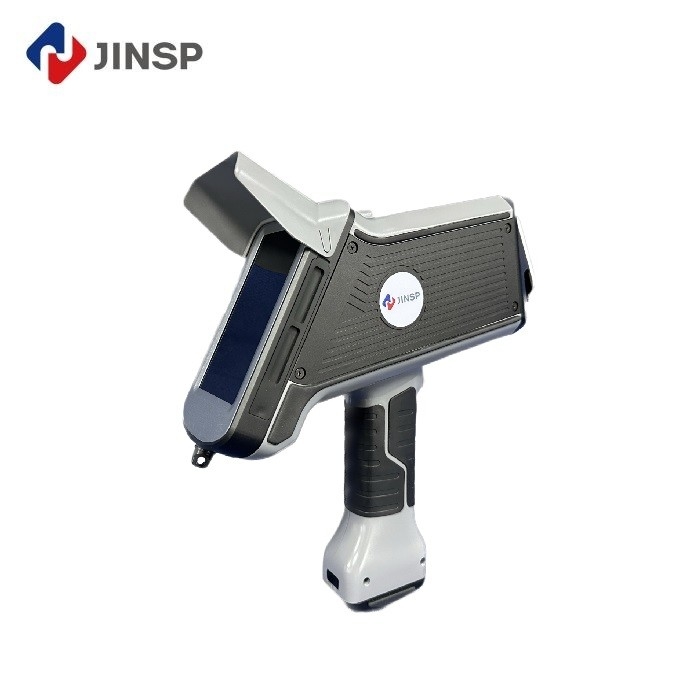

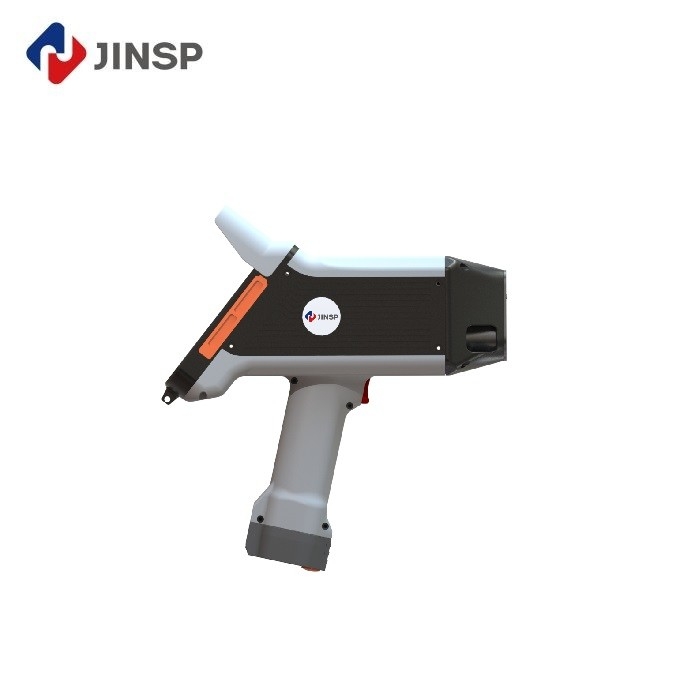

JINSP Handheld LIBS Analyzer for Iron Based Alloy Element Detection

Key Features

1535nm Class 1 laser safety (eye-safe operation)
Ultra-fast 5-second detection time
Lightweight design (1.9kg with battery)
Intelligent metal matrix recognition
Full-element detection including light elements (Al, Mg, Si)
4G, Bluetooth, and WiFi connectivity

Technical Specifications

Laser Wavelength

1535nm

Spectral Range

180nm ~ 460nm

Working Temperature

-10℃ ~ +40℃

Memory

Weight

1.9kg

Display

5.0-inch capacitive touch screen

Detection Capabilities

Matrix Type	Detectable Elements
Aluminium based	Al, Si, Fe, Cu, Zn, Mg, Mn, Ni, Cr, Ti, Pb, Sn
Iron based	Fe, Cr, Ni, Mn, Si, Ti, Cr, Mo, V, Co
Copper based	Cu, Zn, Mn, Al, Ni, Pb, Sn, Fe

Technical Highlights

Safety Features

Class 1 eye-safe laser (1535nm) eliminates X-ray ionizing radiation risks. External safety mechanisms prevent laser misfiring.

Efficient Operation

Analyzes various metal forms (sheets, blocks, wires, particles) with 5-second results for immediate workflow integration.

Smart Technology

Automatic metal matrix identification reduces human error. Integrated Beidou positioning and real-time data upload via 4G/5G/WiFi.

Applications

Recycled metal recovery and utilization
Mineral exploration
Quality control in automotive, aerospace, and manufacturing
Material verification and analysis

About JINSP

JINSP Company Limited is a professional supplier with 17+ years of experience in spectral detection technologies (Raman, FT-IR, LIBS). Our core technologies are internationally leading with 200+ patent applications.

Certifications

ISO9001:2015, ISO14001:2015, ISO45001:2018, CE, ECAC, and various national/international certifications.

Awards

Geneva International Invention Award, China Patent Excellence Award, Beijing New Technology Certificate, and participation in drafting international standards including IEC 63085.

Frequently Asked Questions

Q: What is the brand and model of this analyzer?

A: JINSP LB1000S Handheld LIBS Elemental Analyzer.

Q: Where is it manufactured?

A: China.

Q: What are the ordering details?

A: Minimum order quantity is 1 unit with T/T payment terms.
