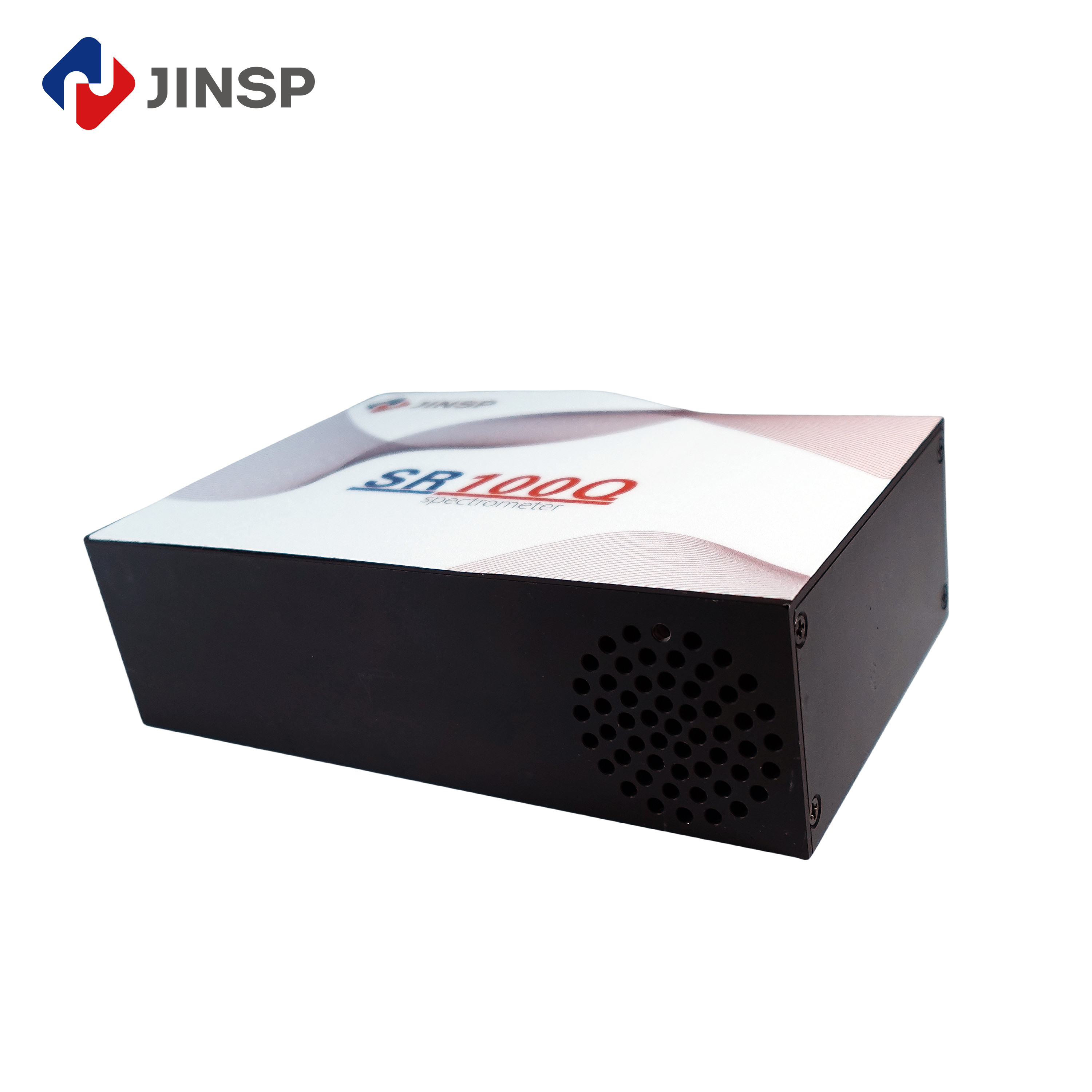

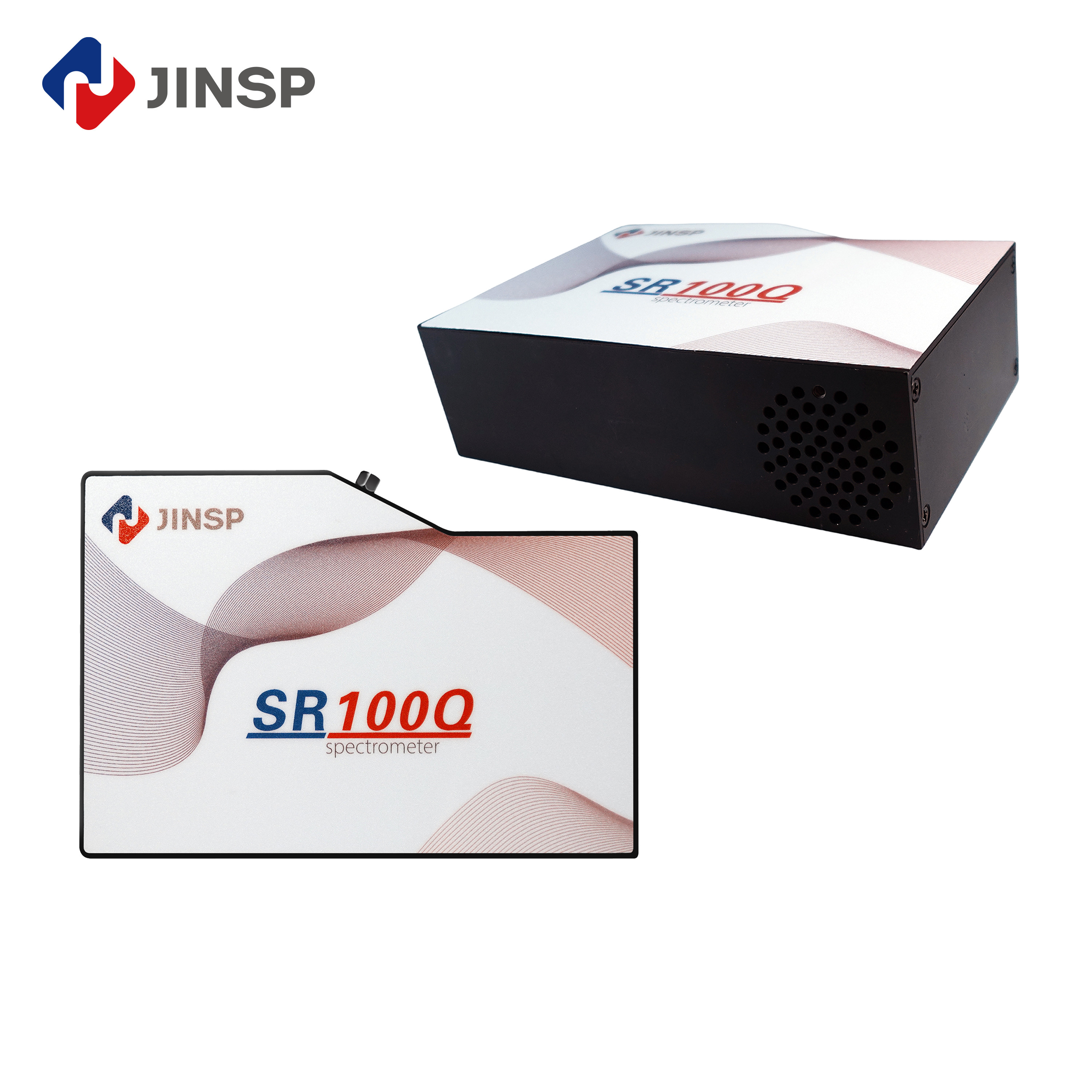

Research Grade SR100Q CCD Fiber Optic Spectrometer Ultra High Sensitivity

Contact Now

Research Grade SR100Q CCD Fiber Optic Spectrometer Ultra High Sensitivity

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	50-70 working days
Payment Terms :	T/T, Western Union	Supply Ability :	50PCS/50-70 working days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE ISO9001	Model Number:	SR100Q
Document:	Product Brochure PDF

Detail Information
Detector:	Back-illuminated TE-cooled Hamamatsu S7031	Effective Pixel:	1024*122
Pixel Size:	24*24μm	Sensing Area:	24.576*2.928mm
Qutuam Efficiency:	QE92%peak@650nm,83%@232nm	Spectrual Range:	185~1100nm(can Be Customized)
Resolution:	1.2~7.7nm(can Be Customized)	SNR:	1000:1
Highlight:	Fiber Optic Spectrometer Ultra High Sensitivity , Research grade Fiber Optic Spectrometer , Research grade fiber optic spectrum analyzer

Product Description

Research Grade SR100Q CCD Fiber Optic Spectrometer Ultra High Sensitivity

Key Specifications

Attribute	Value
Detector	Back-illuminated TE-cooled Hamamatsu S7031
Effective Pixel	1024*122
Pixel Size	24*24μm
Sensing Area	24.576*2.928mm
Quantum Efficiency	QE92%peak@650nm, 83%@232nm
Spectral Range	185~1100nm (can be customized)
Resolution	1.2~7.7nm (can be customized)
SNR	1000:1

Product Overview

The JINSP SR100Q spectrometer integrates the Hamamatsu S7031 scientific-grade TE-cooled area array CCD chip for exceptional performance. With 24*24μm pixel size and quantum efficiency up to 92%, this spectrometer delivers high response in ultraviolet bands, significantly enhancing sensitivity and signal-to-noise ratio (SNR) for weak signals.

Advanced Features

Peak quantum efficiency of 92% at 650nm and 83% at 232nm for high wavelength sensitivity
High SNR ratio (1000:1) with ultra-low dark noise for clear detection of faint signals
Low-noise, high-speed circuit design with USB 3.0 connectivity for rapid data transfer
Capable of detecting absorption, transmittance, and reflection spectra
Adaptable OEM product module for various spectroscopy applications

Technical Parameters

Product Attribute	Value
Spectrometer Type	SR100Q CCD Fiber Optic Spectrometer
Chip type	Area array back-illuminated refrigeration, Hamamatsu S7031
Focal length	≤100mm
Dimensions	180mm120mm50mm

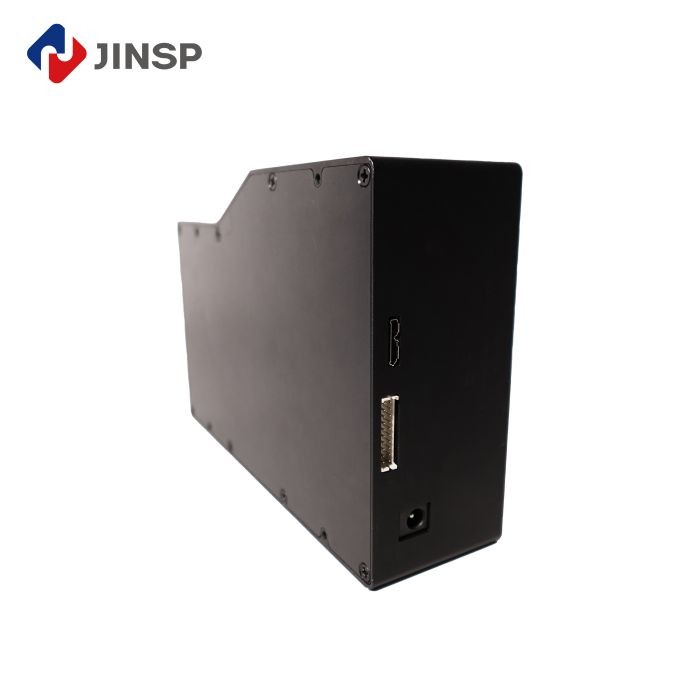

Data output interface	USB3.0, RS232, RS485, 20pin connector
Entrance slit width	10μm, 25μm, 50μm, 100μm, 200μm
Weight	1200g

Applications

Absorption, transmittance and reflectance detection
Light source and laser wavelength detection
OEM product module for fluorescence spectrum analysis
Raman spectroscopy applications including petrochemical monitoring and food additive testing

Frequently Asked Questions

Q1: What is the brand name of this product?

A1: The brand name of this product is JINSP.

Q2: What is the model number of this product?

A2: The model number is SR100Q CCD Fiber Optic Spectrometer.

Q3: Where is this product made?

A3: This product is made in China.

Q4: Is the price of this product negotiable?

A4: Yes, the price is negotiable.

Q5: What are the payment terms for this product?

A5: Payment terms are T/T (Telegraphic Transfer).
