Accurate CCD Optical Fiber Spectrometer For Spectroscopy Success

Contact Now

Accurate CCD Optical Fiber Spectrometer For Spectroscopy Success

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	50-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	50PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR100Q CCD Fiber Optic Spectrometer
Document:	Product Brochure PDF

Detail Information
Detector:	CCD	Key Features:	High Signal-to-noise Ratio
Humidity:	0~90%RH	Dynamic Range:	1000:1
Spectral Range:	200-1100 Nm	Integration Time:	1 Ms - 10 S
Operating Temperature:	10-40°C	Fiber Connector:	FC/PC
Highlight:	Optical Fiber Spectrometer For Spectroscopy , Accurate Optical Fiber Spectrometer , Accurate advanced ccd imaging spectrometer

Product Description

Accurate CCD Optical Fiber Spectrometer For Spectroscopy Success

Key Specifications

Detector	CCD
Key Features	High Signal-to-noise Ratio
Humidity	0~90%RH
Dynamic Range	1000:1
Spectral Range	200-1100 nm
Integration Time	1 ms - 10 s
Operating Temperature	10-40°C
Fiber Connector	FC/PC

Product Overview

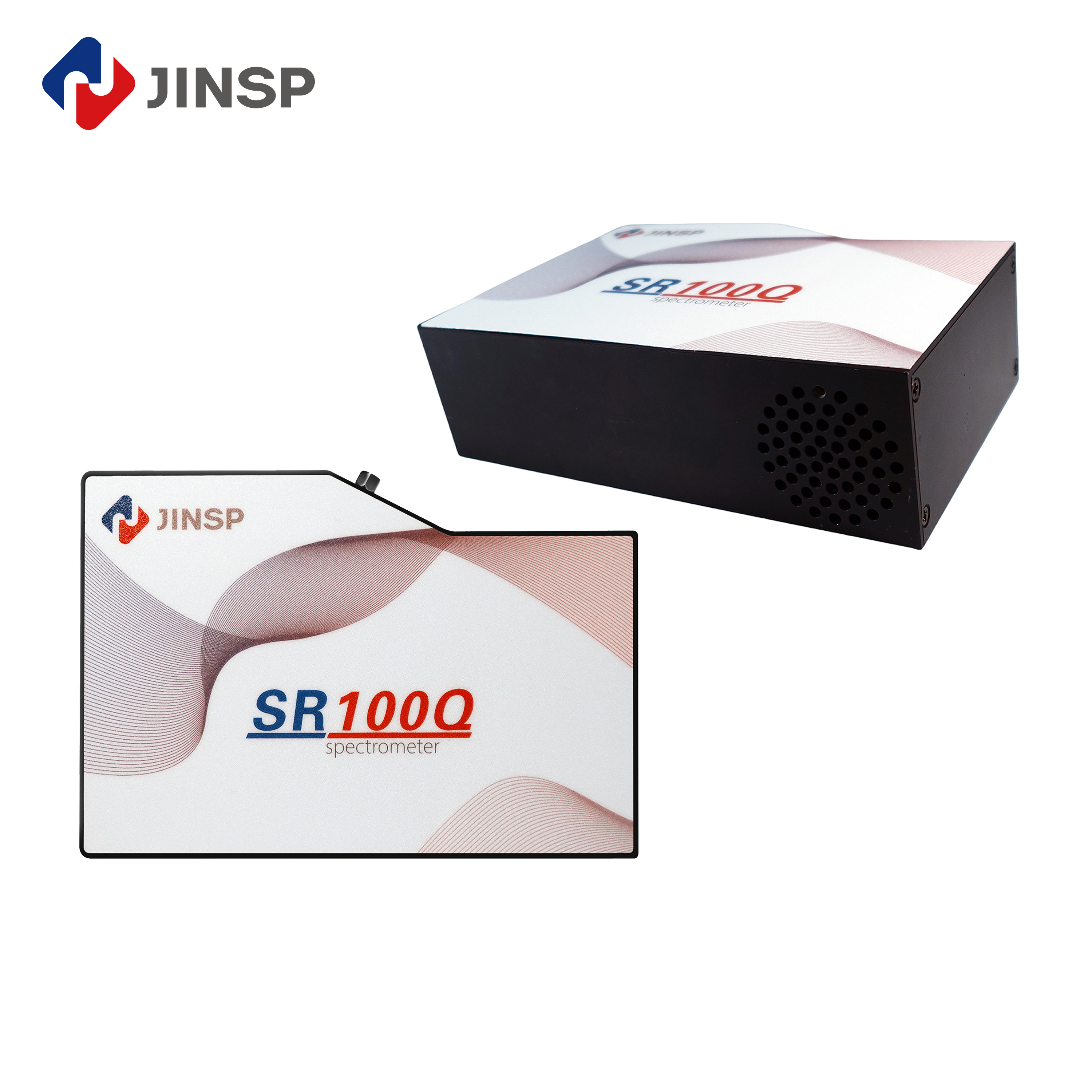

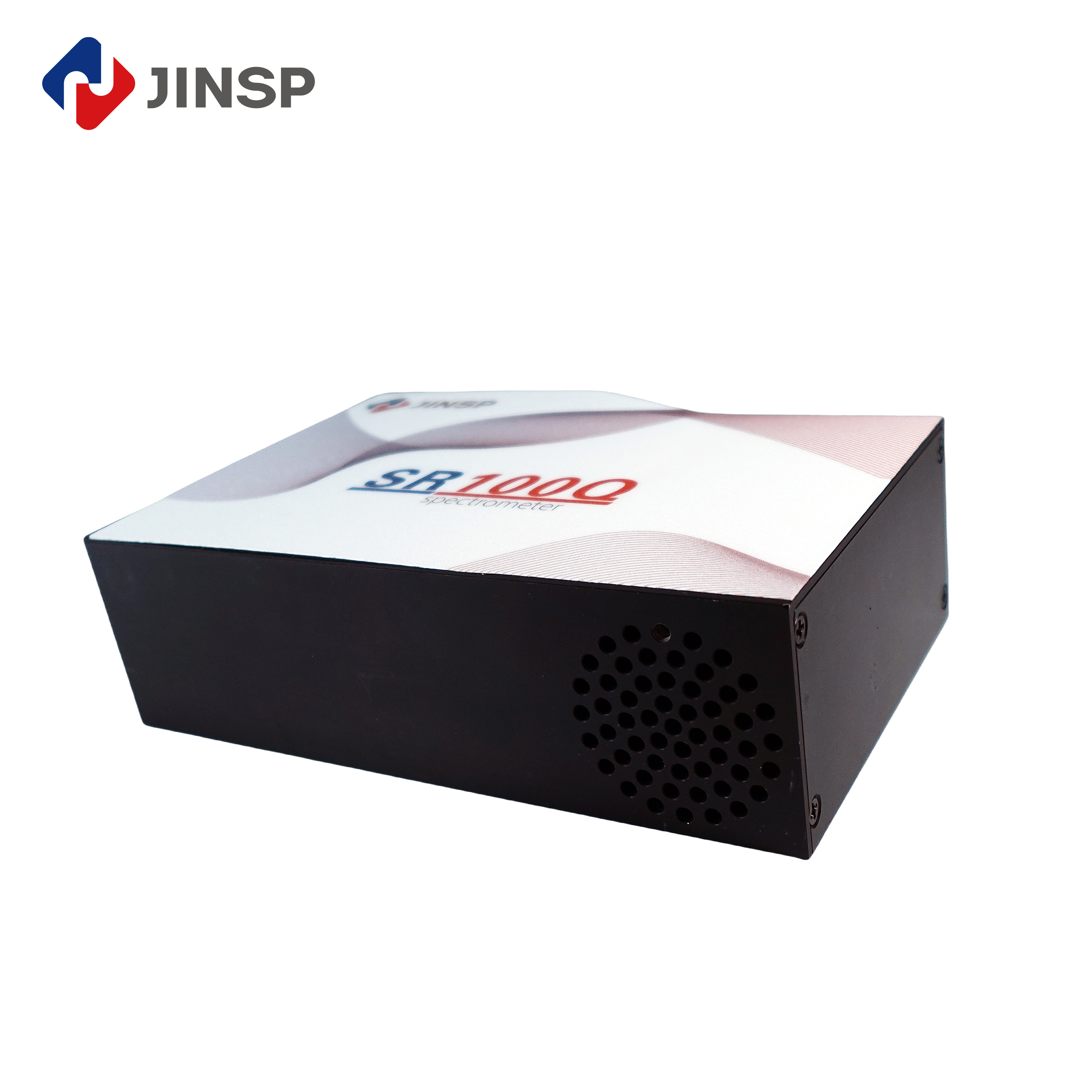

The SR100Q CCD Fiber Optic Spectrometer is designed for user-friendly operation and efficient data collection. Its compact, lightweight design (1200g) ensures portability between locations while maintaining high performance.

High quantum efficiency: 92% peak@650nm, 83%@232nm
Wide wavelength range: 200nm ~ 1100nm
Ultra-low dark noise with SNR up to 1000:1
Low operating current: <3.5A for energy efficiency

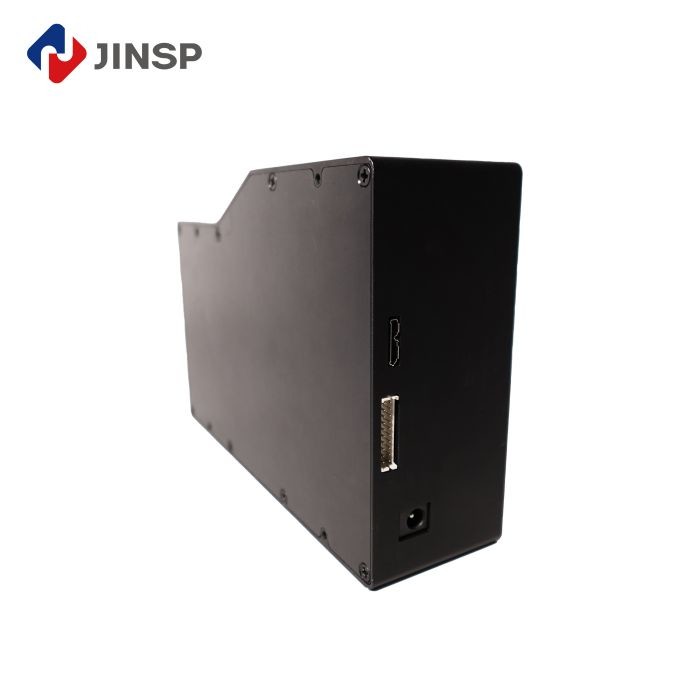

Multiple data interfaces: USB3.0, RS232, RS485, 20pin connector

Technical Specifications

Product Name	Research-grade SR100Q CCD Fiber Optic Spectrometer
Brand Name	JINSP
Focal Length	≤100mm
Certification	CE certified

Applications

Biology: Fluorescence spectroscopy, DNA analysis, protein analysis with high sensitivity for low-concentration samples.

Environmental Science: Measurement of pollutants including heavy metals, pesticides, and volatile organic compounds.

Chemistry: Chemical compound concentration determination with wide wavelength detection capabilities.

Support & Services

Comprehensive technical support including:

Operation and maintenance assistance
Calibration and repair services
Software updates and training resources

Ordering Information

Minimum Order Quantity: 1 unit
Price: Negotiable
Payment Terms: T/T, Western Union
Delivery Time: 50-70 working days
Supply Capacity: 50 units per 70-90 days
Custom packaging available

Frequently Asked Questions

Q1: What is the brand name of this spectrometer?

A1: The brand name is JINSP.

Q2: What is the model number of this product?

A2: The model number is SR100Q.

Q3: What certifications does this product have?

A3: This product has CE certification.

Q4: What is the minimum order quantity for this product?

A4: The minimum order quantity is 1.

Q5: What are the payment terms for purchasing this product?

A5: The payment terms are T/T and Western Union. The price is negotiable and the delivery time is 50-70 working days.
