CCD Array Spectrometer Fiber Spectrometer With High Quantum Efficiency 92%Peak 650nm

Contact Now

CCD Array Spectrometer Fiber Spectrometer With High Quantum Efficiency 92%Peak 650nm

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	50-70working days
Payment Terms :	T/T, Western Union	Supply Ability :	50PCS/70-90 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	CE	Model Number:	SR100Q
Document:	Product Brochure PDF

Detail Information
High Quantum Efficiency:	92%peak@650nm, 83%@232nm	Dimensions:	180 Mm× 120 Mm× 50 Mm
Focal Length:	≤100mm	Operating Current:	<3.5A
Highlight:	CCD Array Spectrometer High Quantum Efficiency , 650nm Fiber Spectrometer , CCD Array Spectrometer 650nm

Product Description

CCD Array Spectrometer Fiber Spectrometer With High Quantum Efficiency 92%Peak 650nm

Key Specifications

High quantum efficiency	92%peak@650nm, 83%@232nm
Dimensions	180 Mm× 120 Mm× 50 Mm
Focal Length	≤100mm
Operating Current	<3.5A

Product Overview

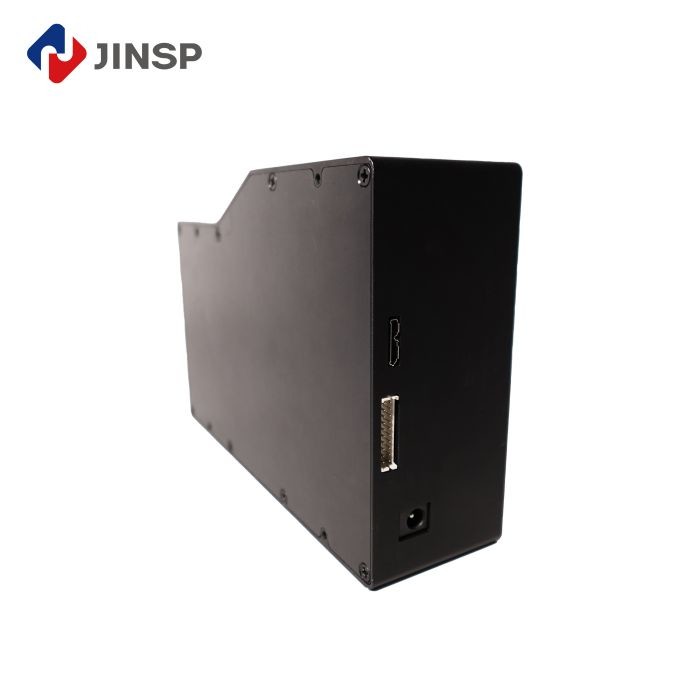

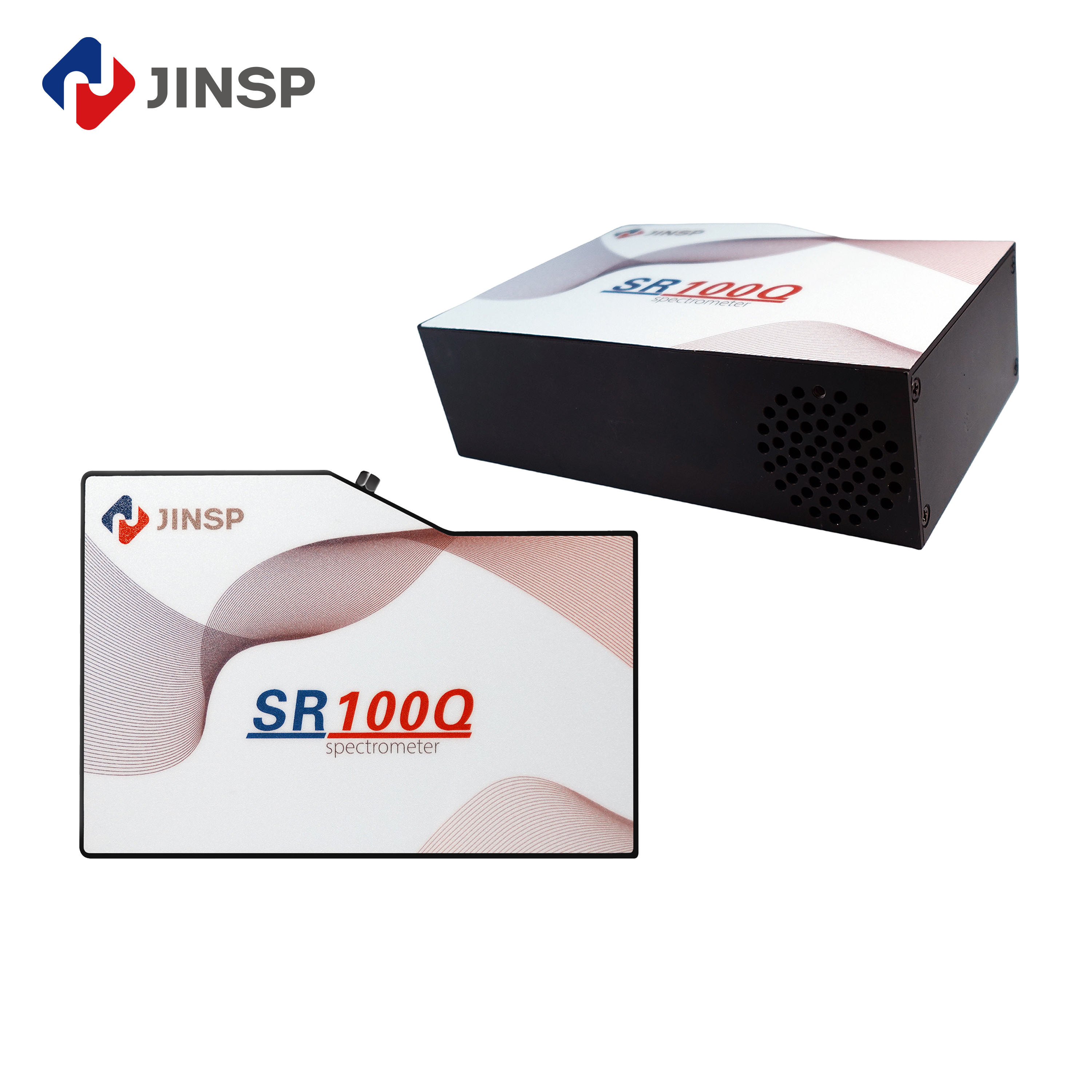

The JINSP SR100Q CCD Fiber Optic Spectrometer is a high-performance research-grade instrument designed for precise spectral measurements across a wide wavelength range from 200nm to 1100nm. This back-illuminated refrigeration spectrometer features exceptional quantum efficiency and sensitivity for demanding scientific and industrial applications.

Technical Features

High quantum efficiency: 92% peak at 650nm, 83% at 232nm
Area array back-illuminated refrigeration chip (Hamamatsu S7031)
Signal-to-noise ratio up to 1000:1 with ultra-low dark noise
Compact dimensions: 180 × 120 × 50 mm (L×W×H)
Lightweight design: 1200g for easy portability
Operating humidity range: 0-90% RH

Applications

This versatile spectrometer is ideal for:

Absorption, transmittance, and reflectance measurements
Light source and laser wavelength analysis
Fluorescence spectrum analysis
Raman spectroscopy for petrochemical and food industry
Biological and environmental sample characterization
Materials research and quality control

Complete Package Includes

CCD Fiber Spectrometer device
Power adapter
USB connection cable
Comprehensive instruction manual

Support & Services

Our comprehensive support package includes:

Technical assistance for installation and calibration
Troubleshooting support
Regular software updates
Training and educational resources

Frequently Asked Questions

What is the brand and model of this spectrometer?

This is the JINSP SR100Q CCD Fiber Optic Spectrometer.

Does this product have any certifications?

Yes, the spectrometer is CE certified.

Where is this product manufactured?

The spectrometer is manufactured in China.

Note: For detailed pricing, minimum order quantities, shipping information, and custom packaging requirements, please contact our sales team for a personalized quote.
