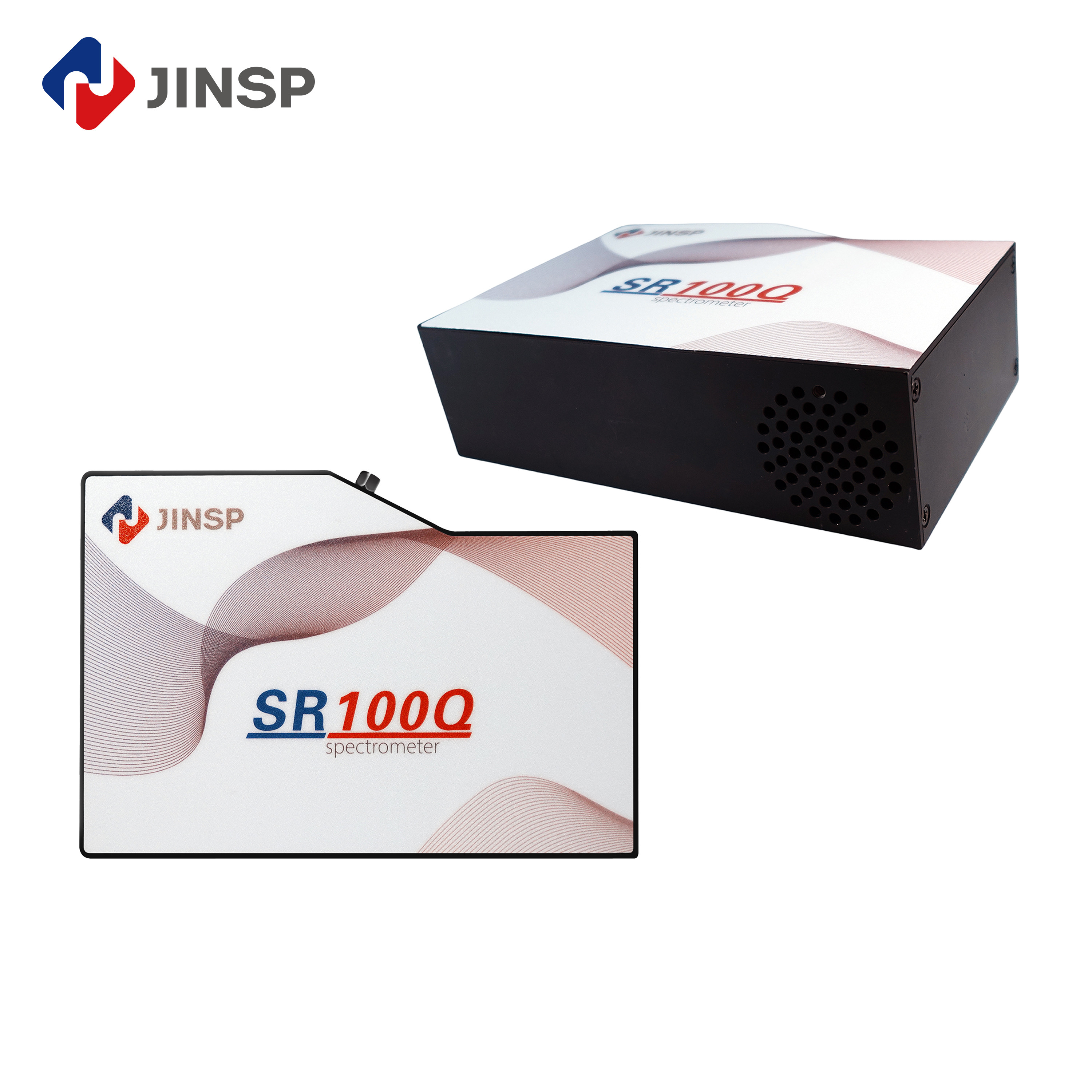

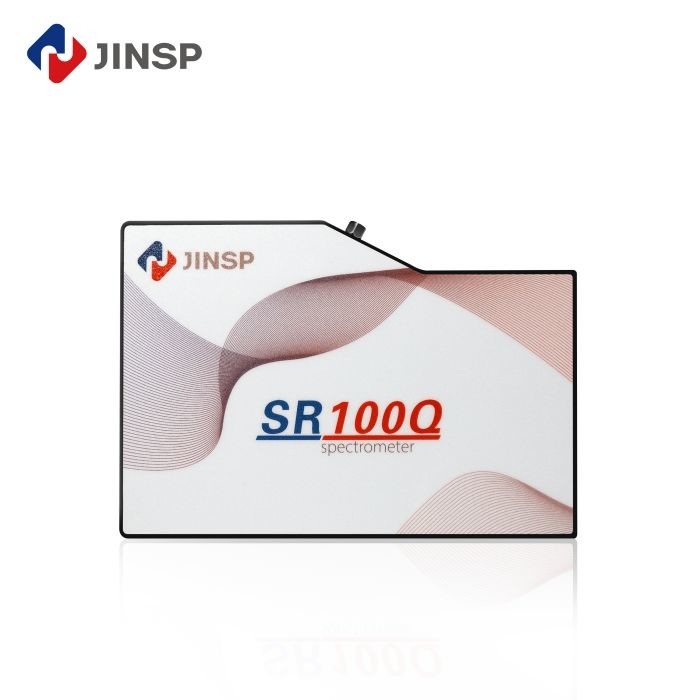

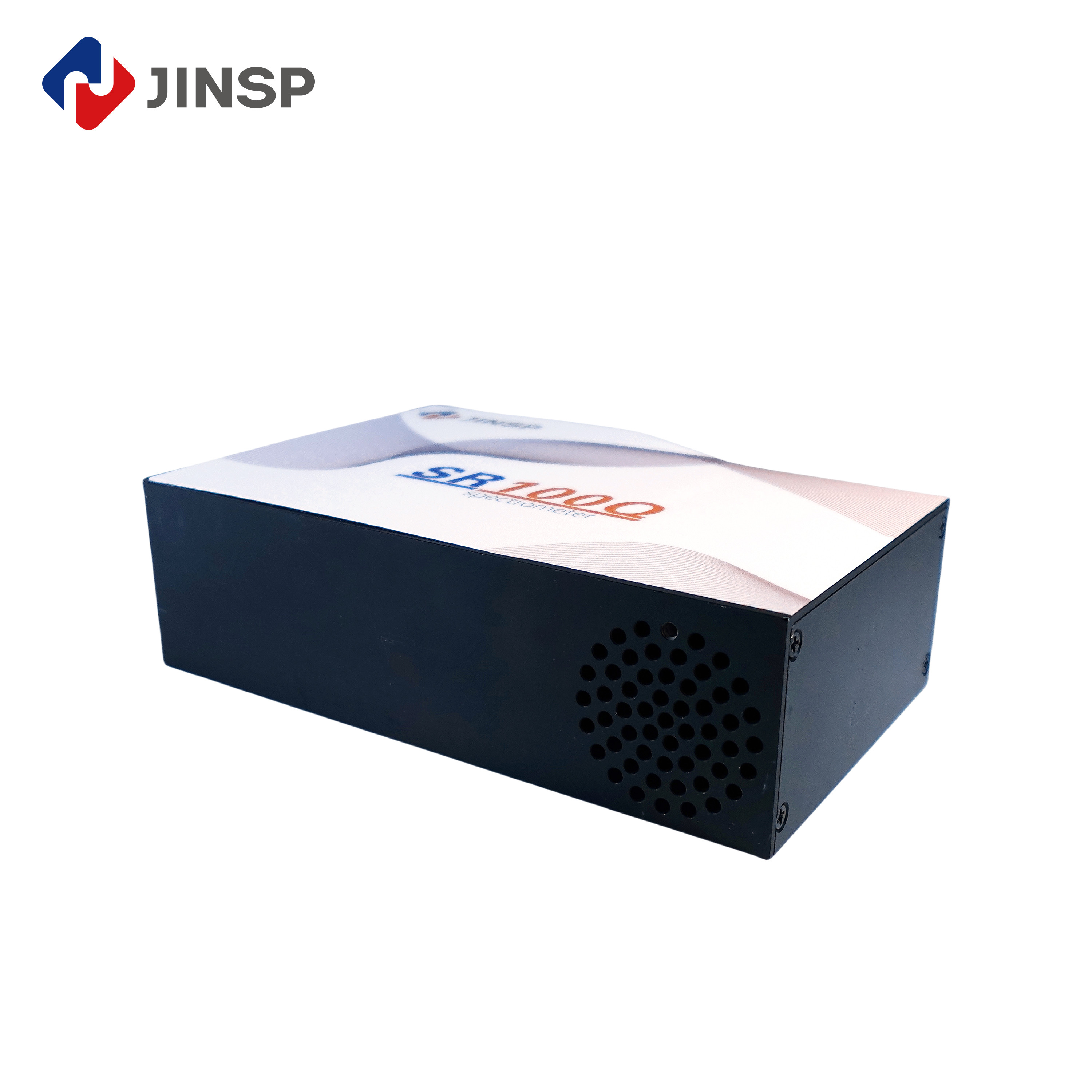

Back-Thinned CCD Cooled Fiber Optic Spectrometer Module SR100Q For Scientific Research Applications

Contact Now

Back-Thinned CCD Cooled Fiber Optic Spectrometer Module SR100Q For Scientific Research Applications

Minimum Order Quantity :	1	Price :	Negotiable
Packaging Details :	Customized Packaging	Delivery Time :	90-120 working days
Payment Terms :	T/T, Western Union	Supply Ability :	5PCS/90-120 days

Place of Origin:	CHINA	Brand Name:	JINSP
Certification:	ISO9001	Model Number:	SR100Q
Document:	Product Brochure PDF

Detail Information
Spectrual Range:	200nm - 1100nm	Resolution:	1.2nm - 7.7nm
Qutuam Efficiency:	QE92%peak@650nm, 83%@232nm	SNR:	1000:1
Highlight:	Back-Thinned Fiber Optic Spectrometer , CCD Cooled Fiber Optic Spectrometer , Fiber Optic Spectrometer Module

Product Description

Back-Thinned CCD Cooled Fiber Optic Spectrometer Module SR100Q For Scientific Research Applications

Key Specifications

Spectral Range	200nm - 1100nm
Resolution	1.2nm - 7.7nm
Quantum Efficiency	QE92% peak @650nm, 83%@232nm
SNR	1000:1

Ultra High Sensitivity Back-Thinned CCD Modular Fiber Optic Spectrometer SR100Q

The JINSP SR100Q spectrometer integrates the Hamamatsu S7031 scientific-grade TE-cooled area array CCD chip. With 24×24μm pixel size and quantum efficiency up to 92%, it delivers exceptional UV band response, significantly improving sensitivity and SNR for weak signals. The advanced high-resolution optical path combined with low-noise, high-speed FPGA signal processing ensures excellent spectral signals and stable, reliable performance. TE cooling technology dramatically reduces dark noise, making it ideal for weak light detection in scientific research applications.

Detailed Specifications

Chip Type	Back-illuminated TE-cooled Hamamatsu S7031
Effective Pixel	1024×122
Pixel Size	24×24 μm
Sensing Area	24.576×2.928mm
Quantum Efficiency	QE92% peak @650nm, 83%@232nm
Spectral Range	185~1100nm (customizable)
Resolution	1.2~7.7nm (customizable)
SNR	1000:1
Dimensions	185mm×126mm×53mm
Weight	1.7kg

Technical Characteristics

High quantum efficiency: 92% peak @650nm, 83%@232nm
High SNR: Ultra-low dark noise under long integration time (1000:1 SNR)
Noise-free processing of weak signals in long exposure with strong environmental adaptation
Low-noise, high-speed circuit with USB3.0 interface

Typical Applications

Absorption, transmittance and reflection spectrum detection
Light source and laser wavelength characterization
OEM module for fluorescence spectrum, Raman spectrum applications

About JINSP Company Limited

JINSP is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. Our core technologies have reached international leading levels, supported by over 200 patent applications. JINSP has received numerous awards including the Geneva International Invention Award and China Patent Excellence Award, and has participated in drafting several national and international standards including IEC 63085 and GB/T standards for Raman spectroscopy applications.

Frequently Asked Questions

Q: This is my first time using the spectrometer. Is it easy to operate?

A: We provide an English manual and instructional video, along with professional technical support from our engineers.

Q: Do you offer operation training?

A: We provide both on-site training at our facility and can arrange for JINSP engineers to visit your location for installation, training, and maintenance support.

Q: What is your website?

A: Visit us at www.jinsptech.com

Q: What about your quality assurance?

A: All products undergo rigorous quality inspection before shipment, with documentation and photos available upon request.
