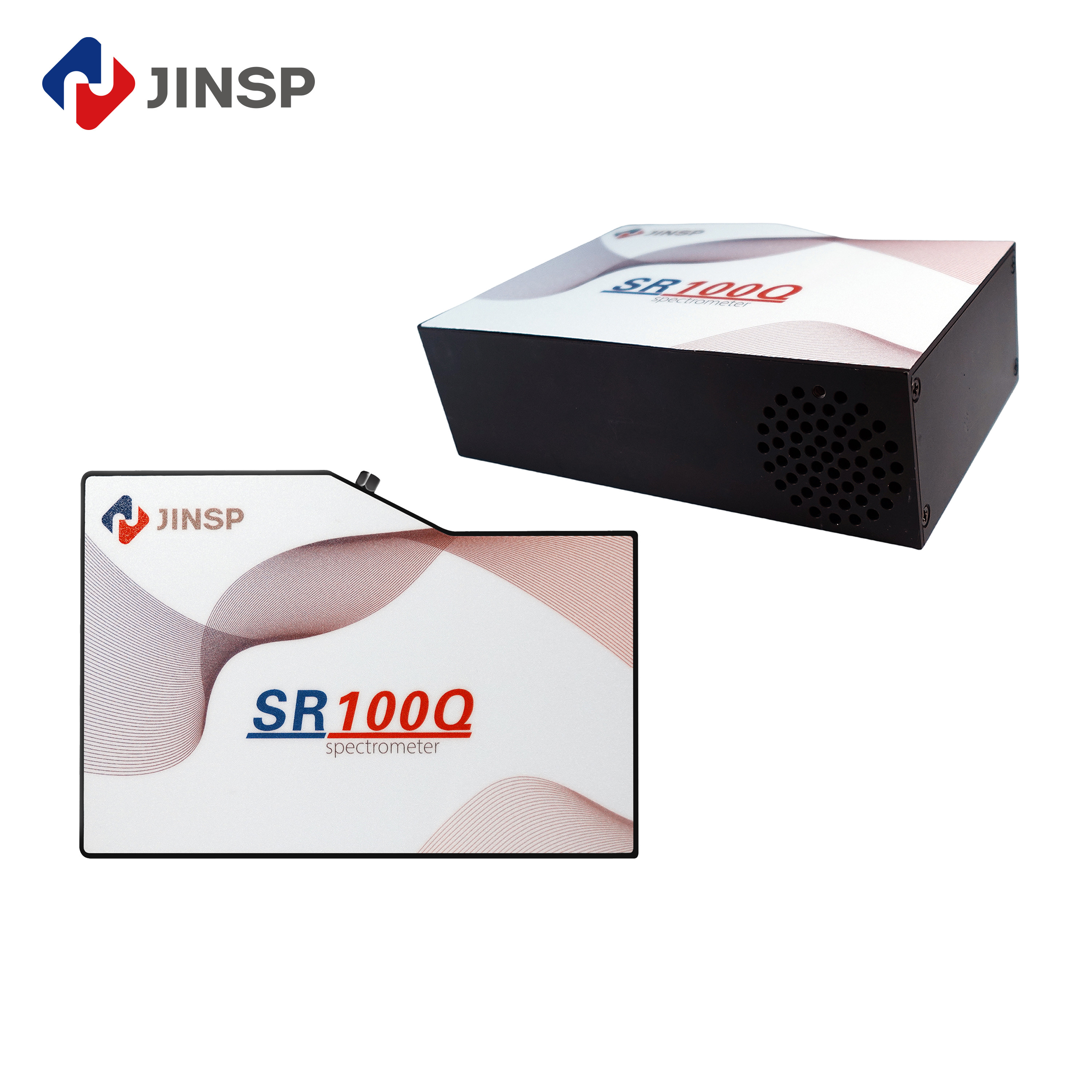

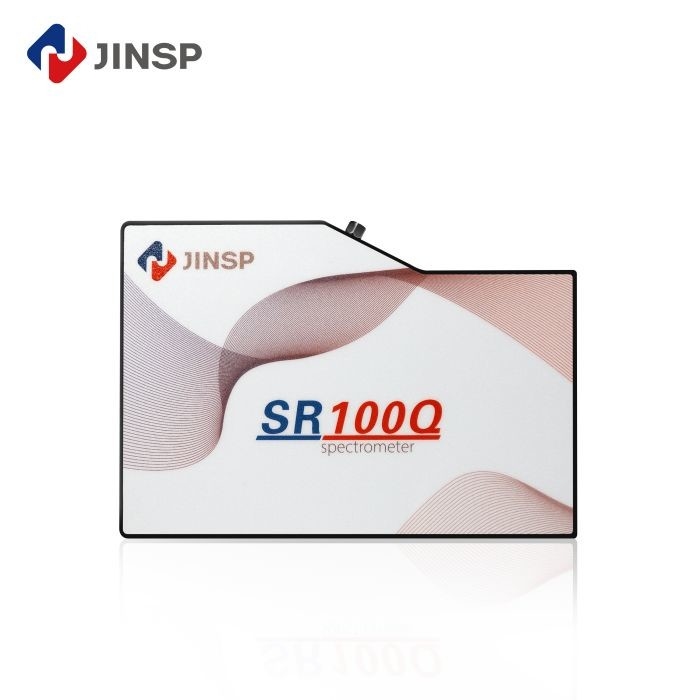

SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Customized Packaging Delivery Time : 90-120 working days
Payment Terms : T/T, Western Union Supply Ability : 5PCS/90-120 days
Place of Origin: CHINA Brand Name: JINSP
Certification: ISO9001 Model Number: SR100Q
Document: Product Brochure PDF

Detail Information

Spectrual Range: 200nm - 1100nm Resolution: 1.2~7.7nm(can Be Customized)
Chip Type: Back-illuminated TE-cooled Hamamatsu S7031 Effective Pixels: 1024*122
Qutuam Efficiency: QE92%peak@650nm, 83%@232nm SNR: 1000:1
Highlight:

Back Thinned Modular Fiber Optic Spectrometer

,

Detect absorption Fiber Optic Spectrometer

,

Detect transmittance Fiber Optic Spectrometer

Product Description

SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum
Product Specifications
Attribute Value
Spectrual Range 200nm - 1100nm
Resolution 1.2~7.7nm (can be customized)
Chip type Back-illuminated TE-cooled Hamamatsu S7031
Effective pixels 1024*122
Quantum Efficiency QE92%peak@650nm, 83%@232nm
SNR 1000:1
Ultra High Sensitivity Back-thinned CCD Modular Fiber Optic Spectrometer SR100Q

SR100Q series of products is JINSP's response to customers who require higher performance demanding spectroscopy applications such as fluorescence, luminescence, and Raman. The SR100Q product range includes several high-sensitivity, low-noise spectrometers. Several of these instruments feature back-thinned detector technology, some of which feature our high-performance, thermoelectrically cooled detectors. The back-thinned CCD detectors featured in the SR100Q series are high-quantum efficiency detectors with excellent response in the ultraviolet, visible, and near-infrared range from 200nm to 1100 nm.

SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum 0
Specification Value
Chip Type Back-illuminated TE-cooled Hamamatsu S7031
Effective Pixel 1024*122
Pixel Size 24*24 μm
Sensing Area 24.576*2.928mm
Quantum Efficiency QE92%peak@650nm,83%@232nm
Spectrual Range 185~1100nm (can be customized)
Resolution 1.2~7.7nm (can be customized)
SNR 1000:1
Dimensions 185mm*126mm*53mm
Weight 1.7kg
SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum 1
Technical Characteristics
  • High quantum efficiency, 92%peak@650nm, 83%@232nm
  • High SNR: Ultra-low dark noise under long integration time, SNR is as high as 1000:1
  • Noise-free clear processing of weak signal in long exposure, strong adaption to environment
  • Low-noise and high-speed circuit: USB3.0
SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum 2
Typical Applications
  • Detect absorption, transmittance and reflection Spectrum
  • Light source and laser wavelength characterization
  • OEM product module: Fluorescence spectrum, Raman spectrum, etc.
SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum 3
About JINSP Company Limited

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.

This strategic move allows JINSP to maintain stringent control over its production processes, ensuring that every product bearing the JINSP brand name meets the highest quality standards. The presence of this manufacturing base not only enhances the company's ability to deliver superior products but also underscores its commitment to excellence in manufacturing.

By having this dedicated facility, JINSP can closely monitor and manage every step of the production chain, from raw material selection to final quality checks, thereby guaranteeing that customers receive products of the utmost quality. This vertical integration approach further strengthens JINSP's market position and enables it to respond swiftly to market demands while maintaining consistent product quality.

JINSP Company received ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide required certifications, such as certification by the Ministry of Public Security or National Institute of Metrology, Environmental Level Certification, IP Level Certification, CE Certification, Transport Identification Report, EU ECAC certification, German ICT Security Testing, etc.

SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum 4 SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum 5 SR100Q Back Thinned Modular Fiber Optic Spectrometer For Detect Absorption Transmittance And Reflection Spectrum 6
Frequently Asked Questions
Q1: This is the first time I use, is it easy to operate?
A1: We will send you manual and guide video in English, it can teach you how to operate the spectrometer. Also our technicians will offer professional technical operation meetings.
Q2: Can your offer a operation training?
A2: Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support (installation, training, debugging, maintenance).
Q3: What's your website?
A3: You can visit: www.jinsptech.com
Q4: What about your quality assurance?
A4: We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
