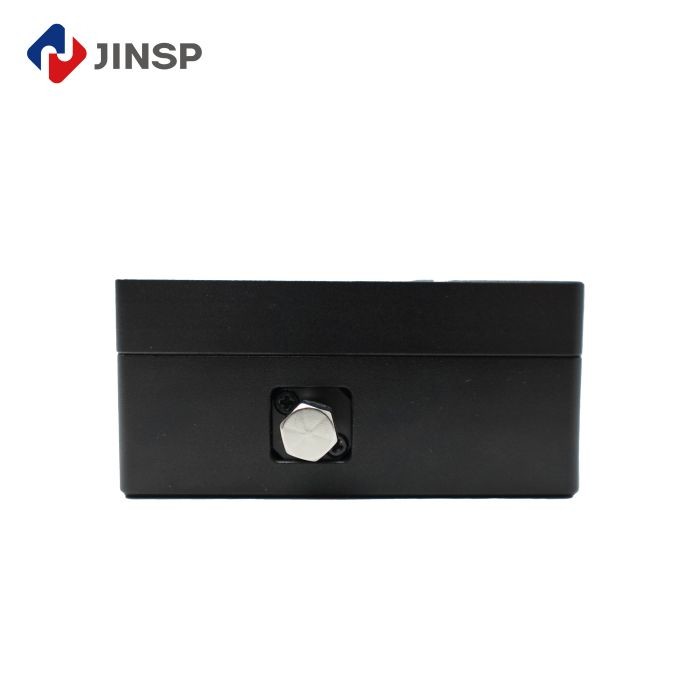

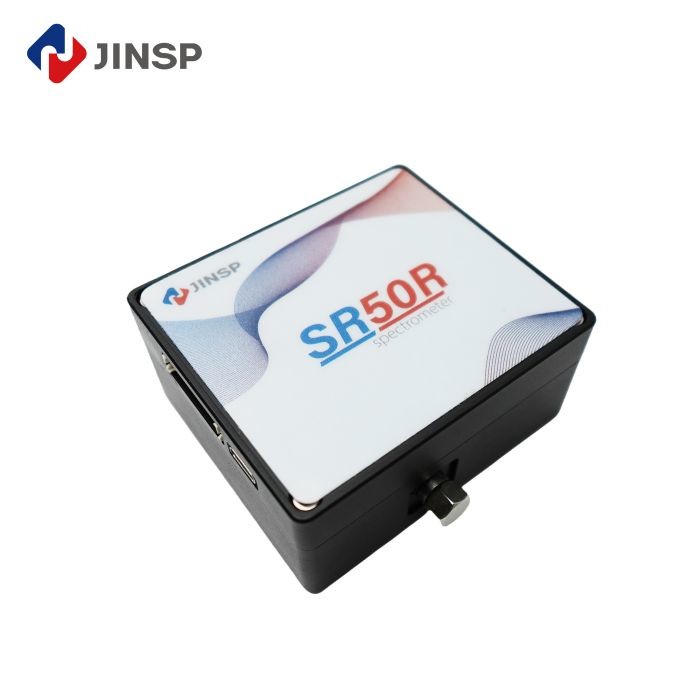

The JINSP SR50R17 represents a compact and cost-effective solution in the realm of near-infrared spectroscopy, covering a spectral range from 900nm to 1700nm. Employing a non-cooled InGaAs sensor, this particular model stands out due to its impressive sensitivity and high resolution, making it an ideal choice for a variety of applications that require precision and efficiency.
Features
- Compact and low cost, High resolution
- Compatible with USB Or UART interface to output measured spectrum data
- Receive SMA905 fiber input to obtain free space optical
- Lens surface is plated with gold film, high efficiency of near-infrared reflection
Technical Parameters
| Product Name |
Near Infrared Non-cooled Spectrometer |
| Wavelength Range |
900-1700nm |
| Chip Type |
Linear array InGaAs |
| Entrance Slit width |
5μm, 10μm, 25μm, 50μm (customizable) |
| Incident Light interface |
SMA905, free space |
| Integration Time |
1ms-5s |
| Operating Humidity |
<90%RH (no condensation) |
| Dimensions |
77mm*67mm*36mm |
| Weight |
0.4KG |
Applications
Some specific scenarios where this product can be used include:
- Moisture content measurement, waste water testing
- Detection of substances such as fat, oil, protein, fiber etc.
- Grain and fodder quality testing
- Measurement ofpharmaceutical mixturecomponents
Support and Services
The Near infrared spectrometer provides high-performance spectral measurements in a portable and affordable package. Our product technical support and services include:
- Expert technical assistance and troubleshooting
- Comprehensive product documentation and user manuals
- Software updates and upgrades
- Calibration and maintenance services
- Customization options to fit specific application needs
Our team of experienced engineers and technicians are dedicated to ensuring the best performance and reliability of your Universal Compact Fiber Spectrometer.
Company Profile and Exhibition
JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company’s core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.
JINSP offers over twenty spectroscopic products across various fields, including pharmaceutical and chemical industries, public security, and customs. Products are available nationwide and are exported to over 30 countries, with cumulative sales exceeding 3,000 units.
Benefit from 30+ R&D engineers, including 4 Ph.D., JINSP is deeply rooted in the field of personalized product customization, and is committed to meeting the diverse and unique needs of customers with excellent professional technology and innovative design capabilities.
We uphold the core value of "customer-centric" to ensure that every customer can enjoy unprecedented flexibility and personalized experience. From the initial concept to the final product, we work closely together to ensure that every detail is accurately aligned with customer expectations, and together create exclusive products that exceed expectations.
FAQ
Q1:This is the first time I use,is it easy to operate?
A1:We will send you manual and guide vedio in English,it can teach you how to operate the spectrometer.
Also our technicians will offer professional tecnical opearation meetings.
Q2:Can you offer a operation training?
A2:Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local
support( installation , training, debugging, maintenance ).
Q3:How to receive a best price in the shortest time?
A3:When you send us an inquiry,please kindly offer details with wavelength,detector,effective pixels,focal length
and so on.We will send you quotation with details soon to your email.
Q4:If the spectrometer has problem in my place,how could I do?
A4:The spectrometer has one year warranty.If it breaks down,our technician will figure out what the problem maybe,
according to client's feedback.We can repair for free within one year warranty.
Q5:Which payment can be acceptable ?
A5:We could accept the payment by T/T, Paypal, Western Union,L/C, etc.
