180mm*120mm*50mm Size Back-illuminated Fiber Spectrometer with Integration Time 4ms-900s

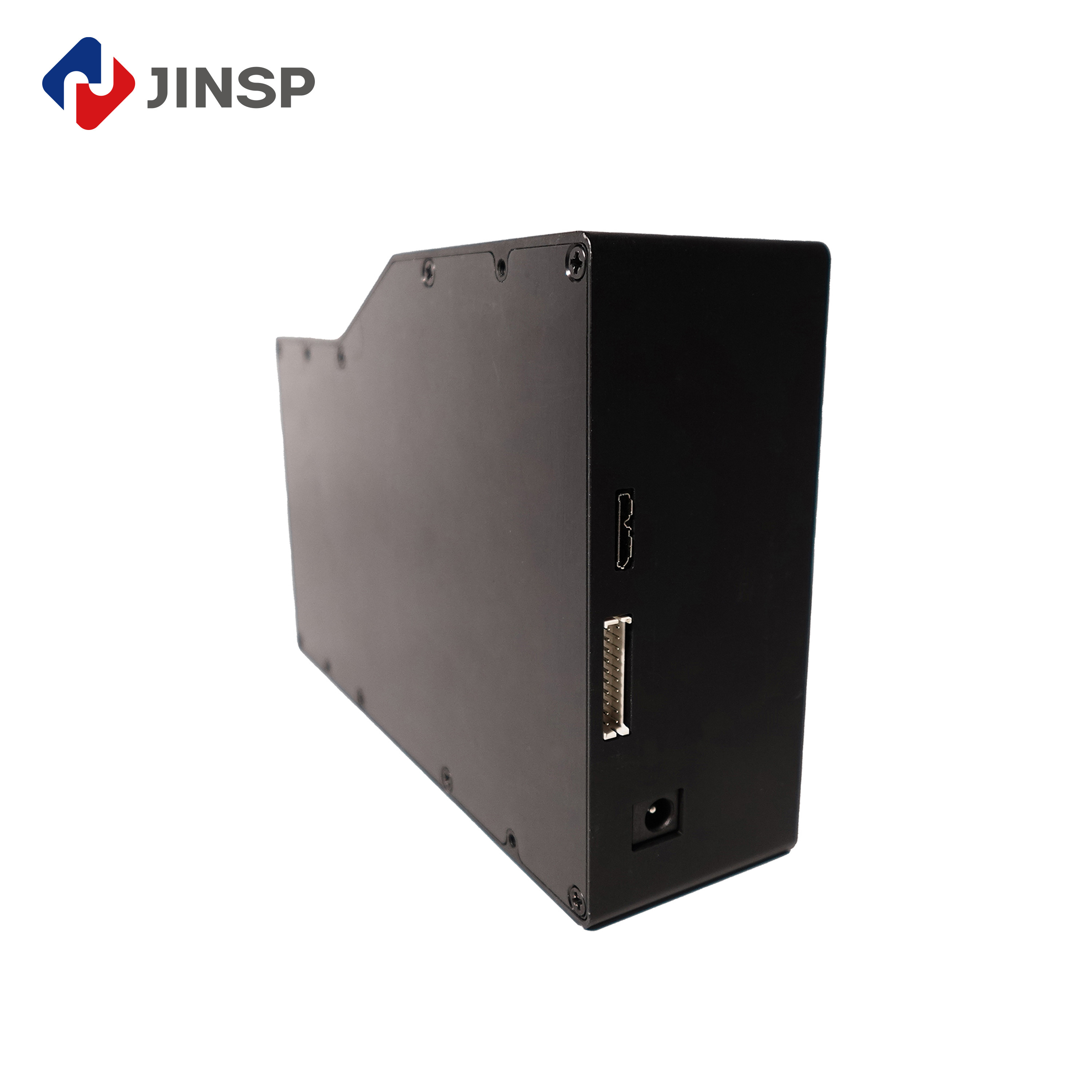

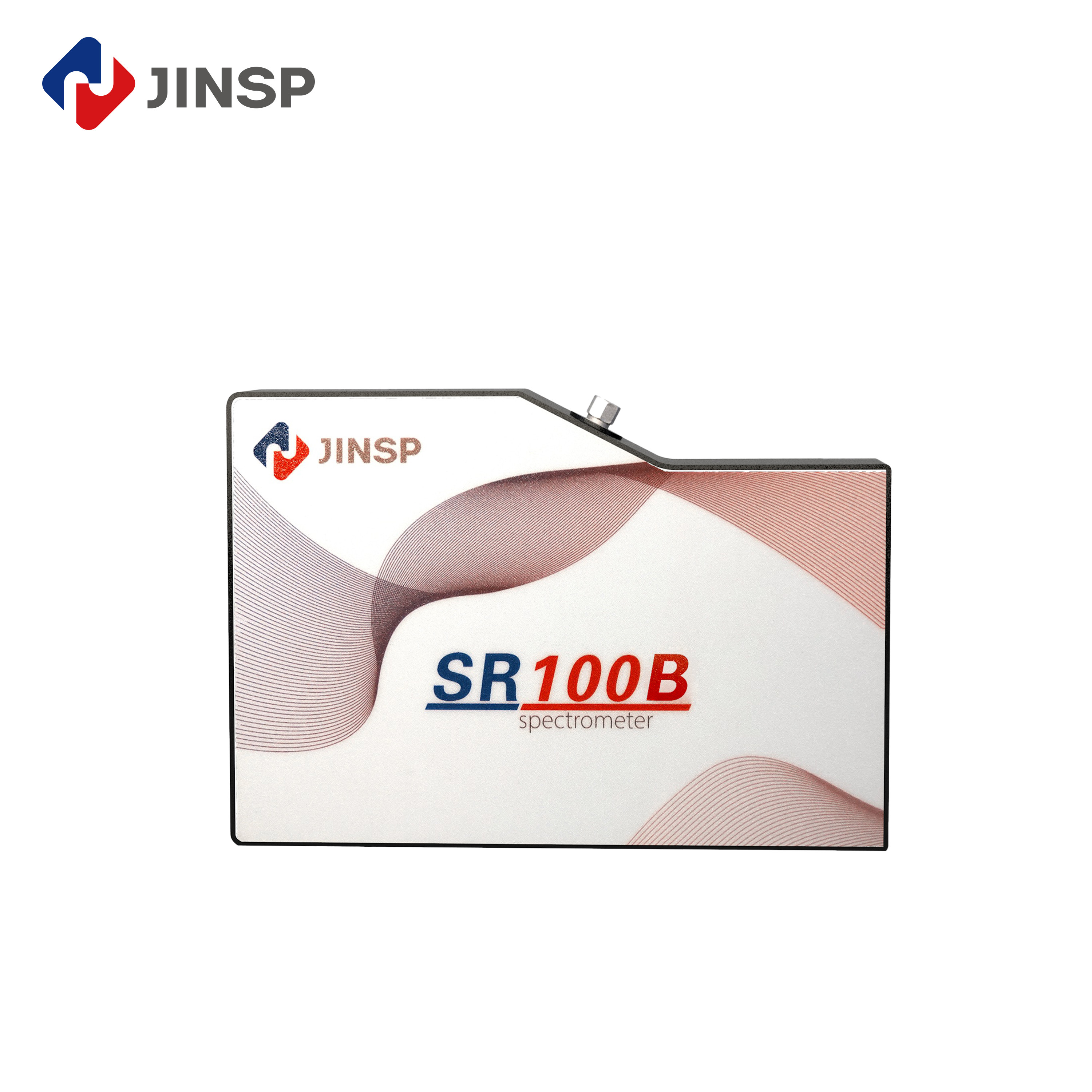

Introducing the SR100B, a cutting-edge spectrometer designed for industrial, laboratory, and scientific research needs. With its high-performance back-illuminated CCD sensor and rapid USB connectivity, this device ensures precise spectral analysis across a broad range.

The SR100B features a Hamamatsu S10420 CCD chip, offering an expansive sensing area and exceptional spectral stability. Its 2048×64 pixel array and 14×14μm pixel size deliver superior quantum efficiency and sensitivity, making it ideal for applications spanning 200nm to 1100nm. Customizable gratings and slit widths allow for tailored spectral resolution and sensitivity, while the high-resolution light path and advanced FPGA signal processing ensure impeccable spectrum signals and dependable performance.

• High sensitivity - Fitted with area array back-illuminated detector with high quantum efficiency, optimizable ultraviolet band
• High resolution - Resolution <1.0nm@10μm (200~1100nm)
• High flexibility - 180~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485
• High reliability - Ultra-high SNR and excellent thermal stability

• Detect absorption, transmittance and reflection spectrum
• Light source and laser wavelength characterization
• OEM product module: Fluorescence spectrum, Raman spectrum, etc.

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.

JINSP Company received ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide required certifications, such as certification by the Ministry of Public Security or National Institute of Metrology, Environmental Level Certification, IP Level Certification, CE Certification, Transport Identification Report, EU ECAC certification, German ICT Security Testing, etc.
