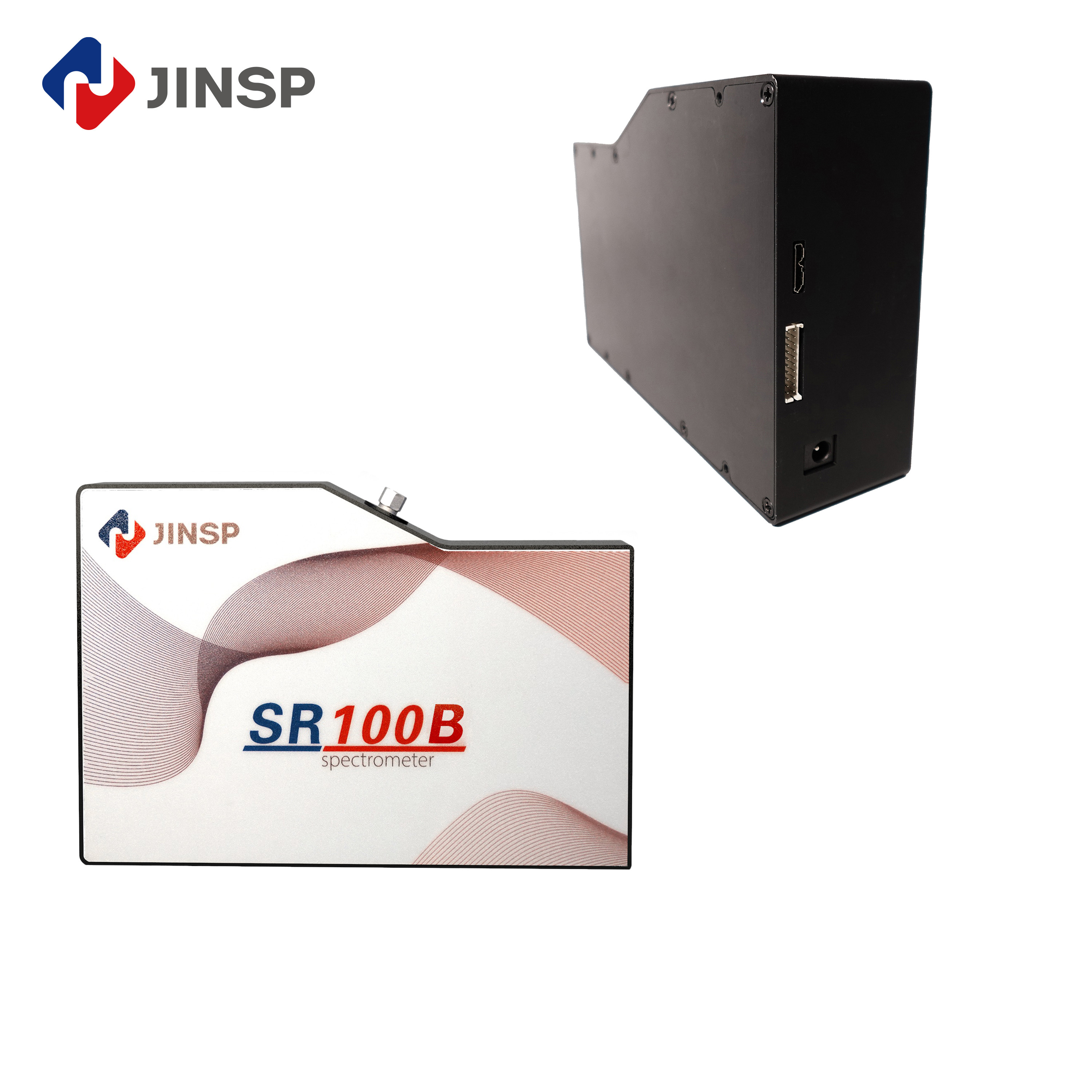

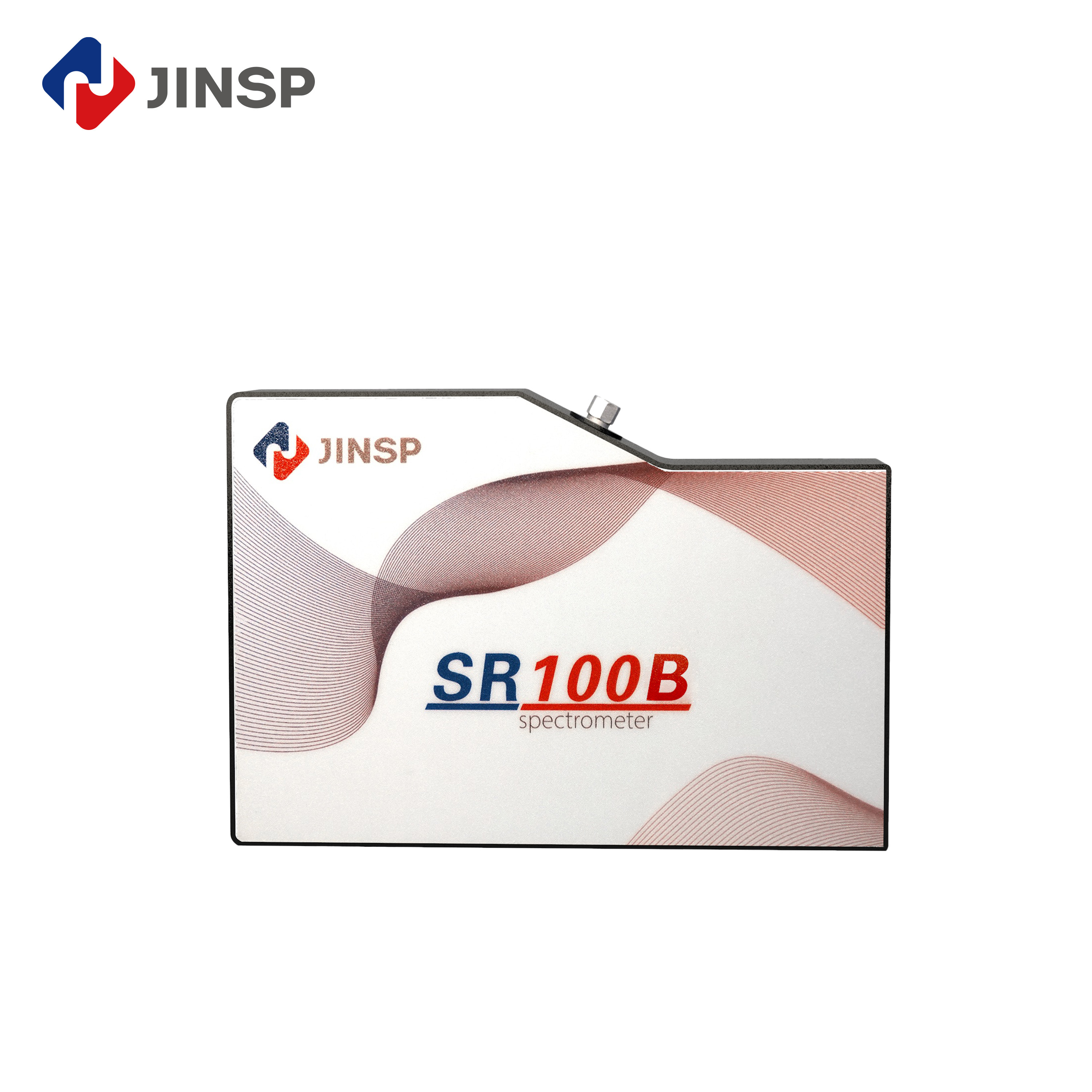

Backlit Array CCD Fiber Optic Spectrometer Module with 20pin Connector Data Output Interface and 28.672*0.896mm Pixel Size

The SR100B spectrometer features cutting-edge back-illuminated CCD technology that delivers exceptional performance. This versatile instrument is ideal for industrial processes requiring precise monitoring and scientific research demanding high accuracy. At its core is the Hamamatsu S10420 CCD chip with a large sensing area for comprehensive data collection and stable spectral readings. The chip's 2048x64 pixel format and 14x14μm pixel size provide remarkable quantum efficiency and sensitivity, accurately measuring light in the 200-1100nm wavelength range.

• High sensitivity - Fitted with area array back-illuminated detector with high quantum efficiency, optimizable ultraviolet band
• High resolution - Resolution <1.0nm@10μm (200~1100nm)
• High flexibility - 180~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485
• High reliability - Ultra-high SNR and excellent thermal

• Identify the absorption, transmission, and reflection spectra of materials
• Characterize the light source and laser wavelength properties
• Customized OEM module options: Fluorescence and Raman spectra analysis

JINSP Company Limited ("JINSP") is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies. After 17 years of technology accumulation, the company's core technologies have reached international leading levels, with over 200 patent applications.

Headquartered in Beijing, JINSP has a manufacturing facility in Jiangsu, China. The company holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications, and can provide various certifications including CE Certification, EU ECAC certification, and German ICT Security Testing.
