High Sensitivity and Customizable Spectral Resolution Our Modular Fiber Optic Spectrometer for Precise Measurements

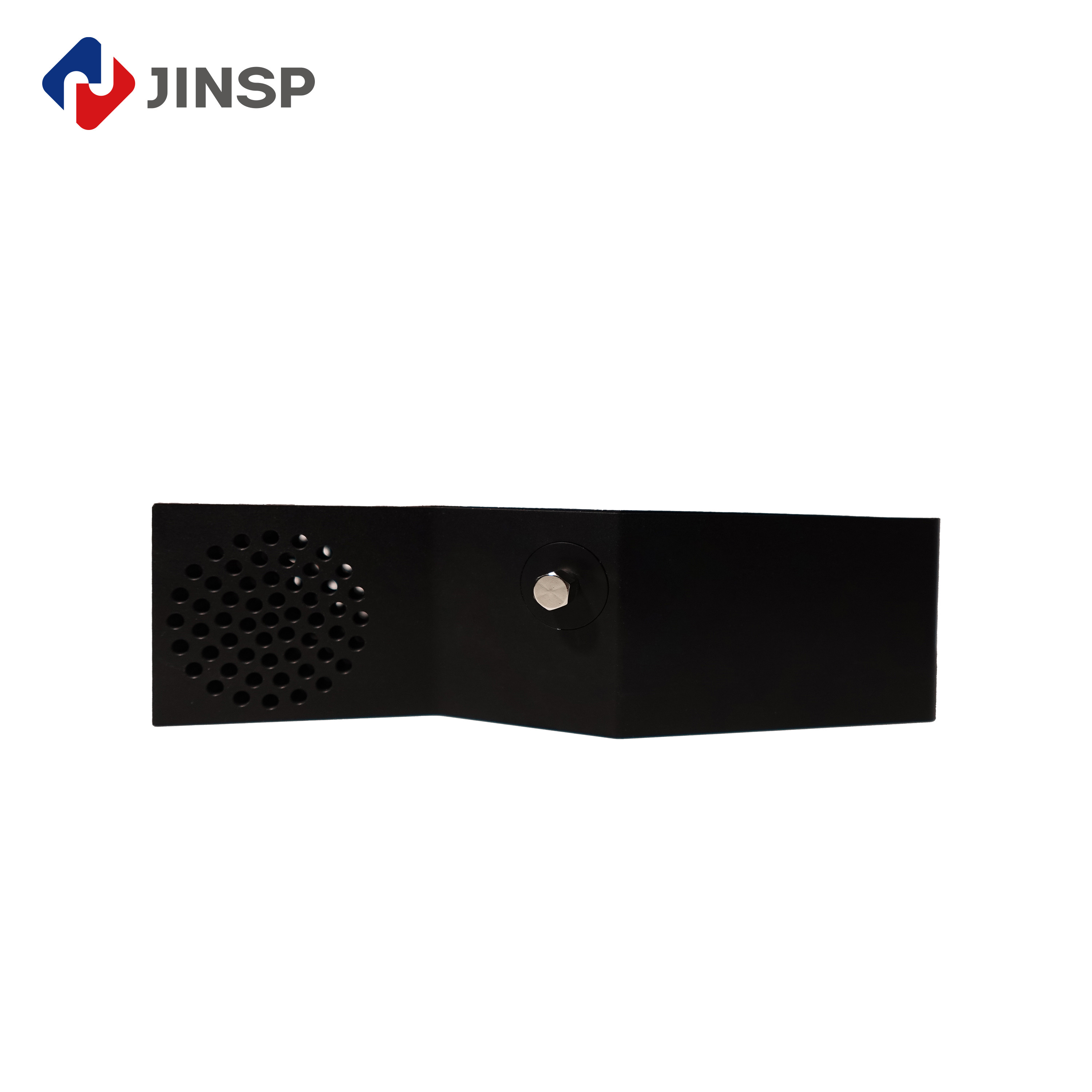

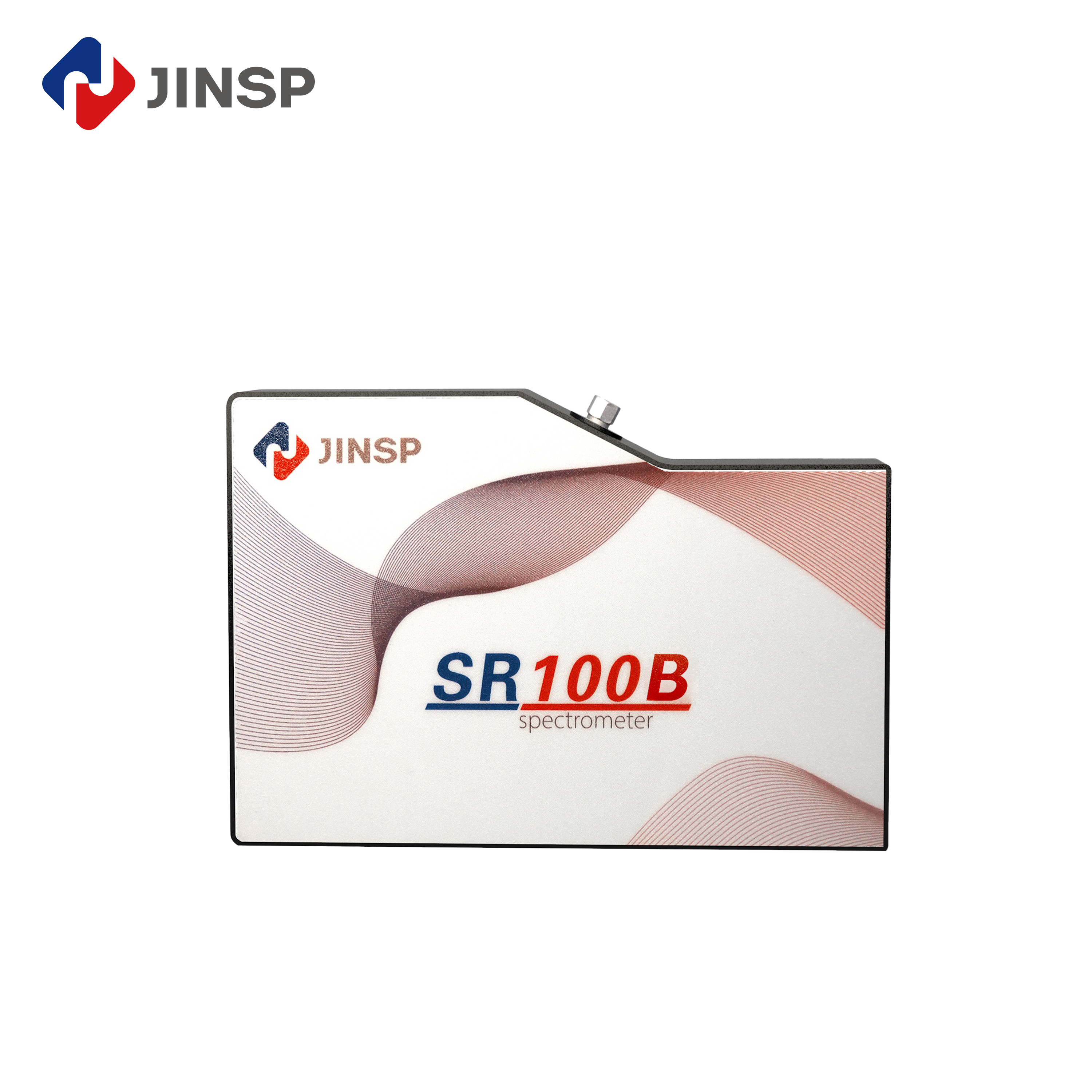

The SR100B spectrometer represents a pinnacle of technological achievement in the realm of high-performance, back-illuminated CCD sensor devices. It is particularly well-suited for a wide array of industrial, laboratory, and research applications where precision and reliability are paramount.

At the heart of this sophisticated instrument lies the renowned Hamamatsu S10420 CCD chip, which boasts a large sensing area that is instrumental in capturing detailed spectral data with remarkable accuracy. This chip is designed to deliver stable spectral readings, ensuring consistent and dependable results over time.

The SR100B spectrometer is equipped with a 2048x64 pixel array, which, combined with a pixel size of 14x14μm, guarantees exceptional quantum efficiency and sensitivity across the broad spectrum ranging from 200 to 1100nm. This expansive range allows for the detection of a wide variety of materials and compounds, making the SR100B an invaluable tool in numerous scientific and industrial settings.

Moreover, the spectrometer offers the flexibility of customizable gratings and slit widths, enabling users to tailor the spectral resolution and sensitivity to their specific needs. This feature is particularly advantageous for researchers and technicians who require fine-tuning of their spectral analysis to achieve the highest level of detail and accuracy.

Additionally, the spectrometer incorporates advanced FPGA (Field-Programmable Gate Array) signal processing technology, which is responsible for the impeccable quality of the spectrum signals produced. This technology also contributes to the device's stable and reliable performance, which is crucial for consistent data acquisition and analysis.

Note: The * are primarily designed for Raman applications, with the corresponding Raman.

• High sensitivity - Fitted with area array back-illuminated detector with high quantum efficiency, optimizable ultraviolet band
• High resolution - Resolution <1.0nm@10μm (200~1100nm)

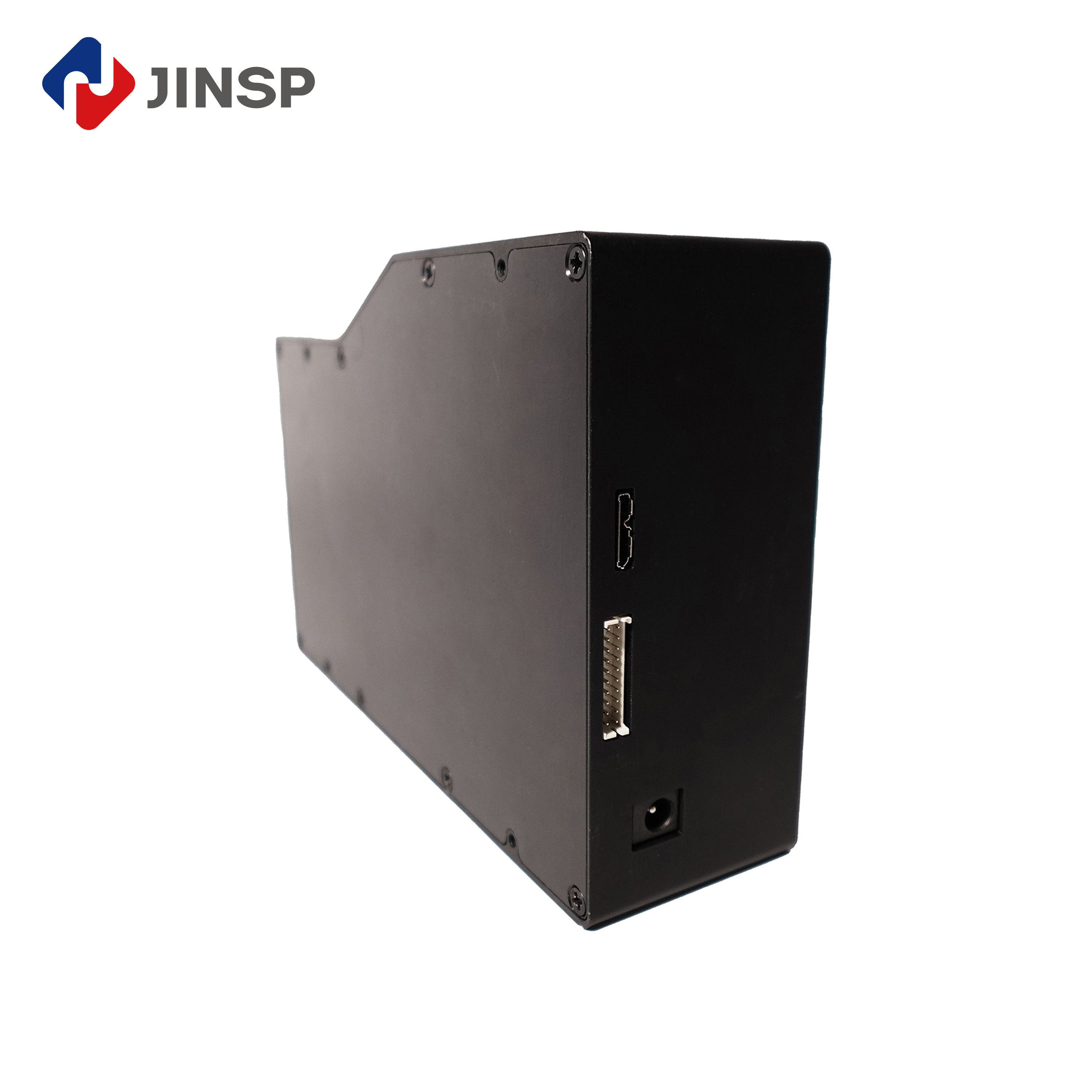

• High flexibility - 180~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485
• High reliability - Ultra-high SNR and excellent thermal

• Detect absorption, transmittance and reflection Spectrum
• Light source and laser wavelength characterization
• OEM product module: Fluorescence spectrum, Raman spectrum, etc.

JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.

In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.

JINSP Company received ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide required certifications, such as certification by the Ministry of Public Security or National Institute of Metrology, Environmental Level Certification, IP Level Certification, CE Certification, Transport Identification Report, EU ECAC certification, German ICT Security Testing, etc.
