Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s
Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s
Contact Now

Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : International Shipping Package Delivery Time : 30-400 working days
Payment Terms : T/T, Western Union Supply Ability : 100PCS/30-40 days
Place of Origin: CHINA Brand Name: JINSP
Certification: ISO9001 CE Model Number: SR100B
Document: Product Brochure PDF

Detail Information
Spectrual Range: 200nm - 1100nm Effective Pixels: 2048*64
Pixel Size: 28.672*0.896mm Integration Time: 4ms~900s
Dimensions: 180mm*120mm*50mm Weight: 1.2kg
Highlight:

Accurate and Sensitive Fiber Optic Spectrometer

,

Wide Wavelength Range Fiber Optic Spectrometer

,

2048x64 Pixel Array Fiber Optic Spectrometer

Product Description

Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range

2048x64 Pixel Array | 14x14 μm Pixel Size | 1.2kg | Integration Time 4ms-900s

Key Specifications
Attribute Value
Spectral Range 200nm - 1100nm
Effective pixels 2048*64
Pixel Size 28.672*0.896mm
Integration Time 4ms~900s
Dimensions 180mm*120mm*50mm
Weight 1.2kg

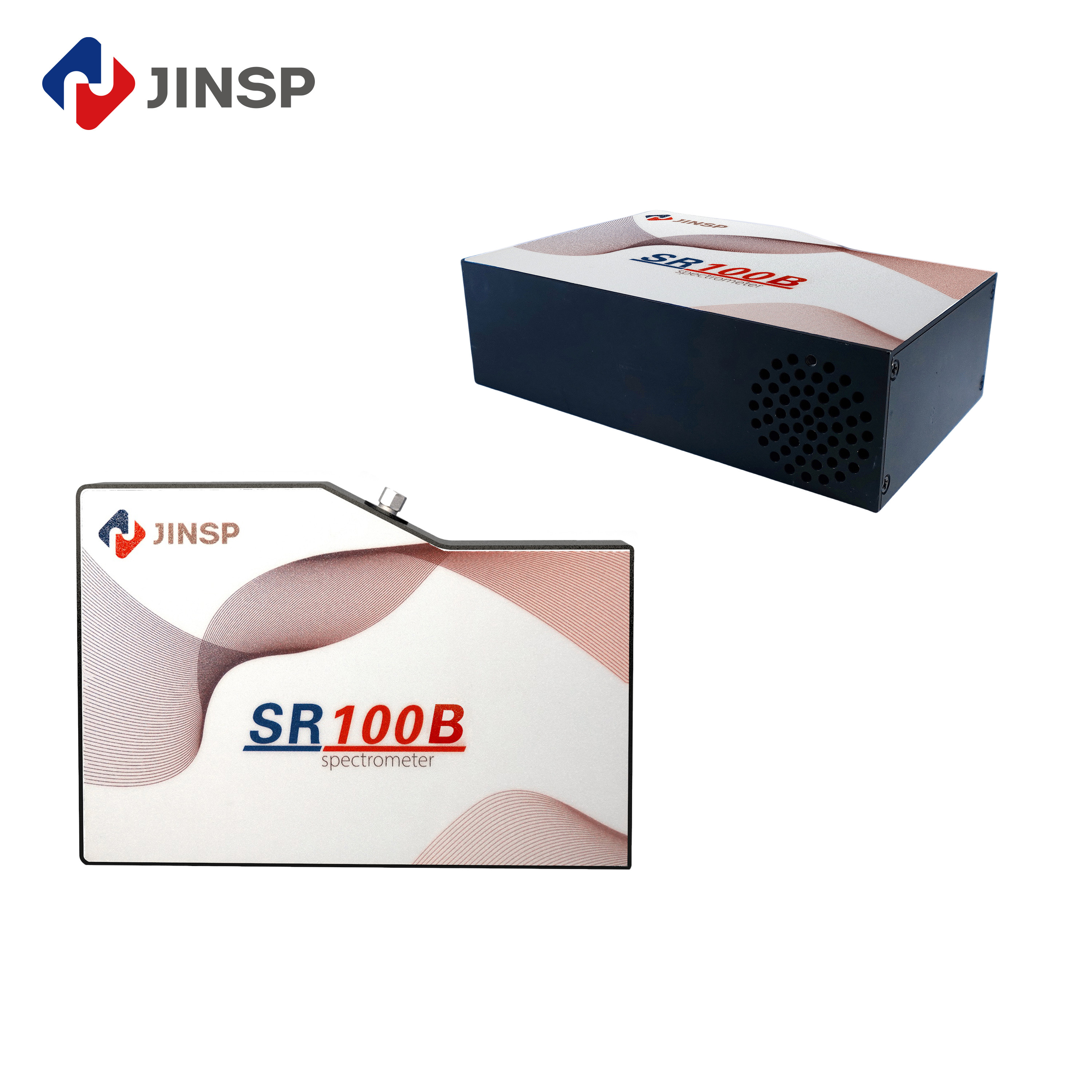

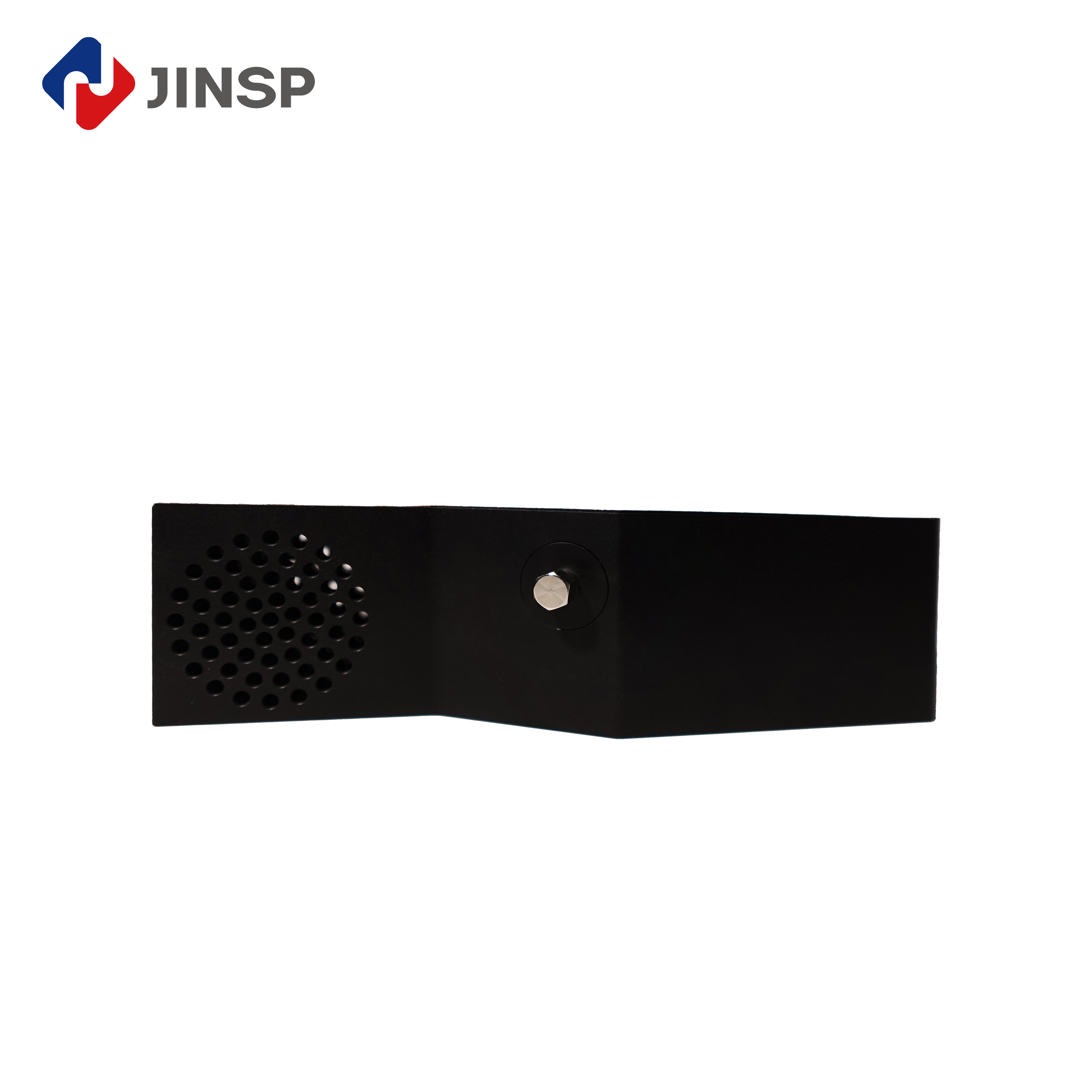

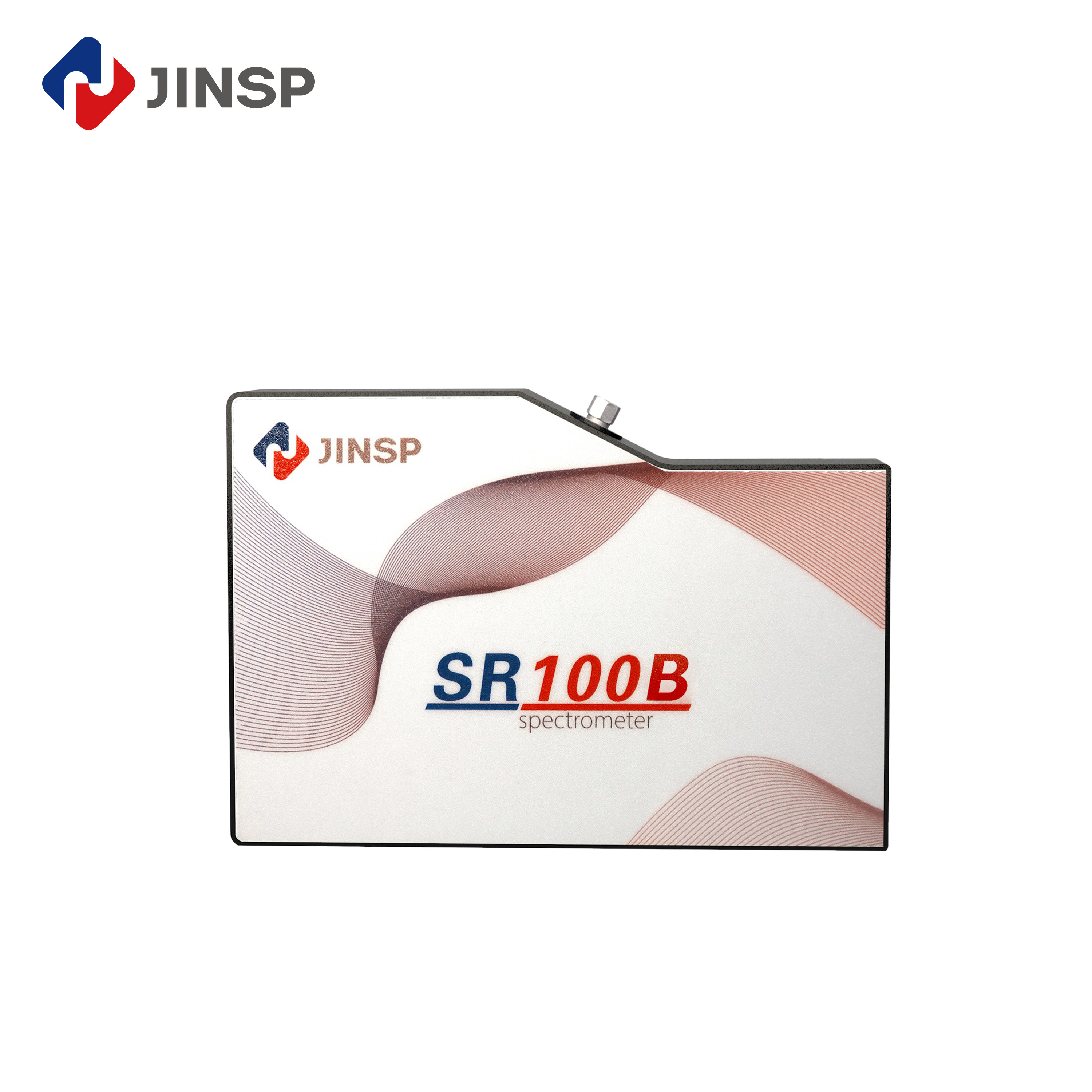

Backlit Array CCD UV Enhanced High Sensitivity Modular Spectrometer

The SR100B spectrometer represents a pinnacle of technological achievement in high-performance, back-illuminated CCD sensor devices. Ideal for industrial, laboratory, and research applications requiring precision and reliability.

Core Features
  • Hamamatsu S10420 CCD chip for stable spectral readings
  • 2048x64 pixel array with 14x14μm pixel size
  • High quantum efficiency across 200-1100nm wavelength range
  • Customizable gratings and slit widths for specific applications
  • Advanced FPGA signal processing for accurate data output
Technical Parameters
Category Parameter Value
Detector Chip Type Back-illuminated cooling Hamamatsu S10420
Effective Pixel 2048*64
Pixel Size 14*14μm
Optical Parameters Optical Design F/4 cross type
Numerical Aperture 0.13
Focal Length 100mm
Entrance Slit Width 10μm,25μm,50μm,100μm,200μm (customizable)
Fiber Interface SMA905, free space
Product Models
Model Spectral Range(nm) Resolution(nm) Slit(μm)
SR100B-G21 200~1100 2.2 (50μm), 1.5 (25μm), 1.0 (10μm) 50, 25, 10
SR100B-G24 200~875, 350~1025 1.6 (50μm), 1.0 (25μm), 0.7 (10μm) 50, 25, 10
SR100B-G28 200~345 0.35 (50μm), 0.2 (25μm), 0.14 (10μm) 50, 25, 10

Note: Some models are primarily designed for Raman applications.

Technical Characteristics
  • High sensitivity with optimized ultraviolet band
  • High resolution (<1.0nm@10μm for 200~1100nm)
  • High flexibility (180~1100nm) with multiple interfaces
  • High reliability with ultra-high SNR and thermal stability
Typical Applications
  • Absorption, transmittance and reflection spectrum detection
  • Light source and laser wavelength characterization
  • OEM product modules for fluorescence and Raman spectroscopy
Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s 0
About JINSP Company

JINSP Company Limited is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, and LIBS technologies. Our core technologies have reached international leading levels with over 200 patent applications.

Headquartered in Beijing with a manufacturing facility in Jiangsu, China, JINSP holds ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. Our products are available nationwide and exported to over 30 countries, with cumulative sales exceeding 3,000 units.

With 30+ R&D engineers including 4 Ph.D. holders, we specialize in personalized product customization to meet diverse customer needs with professional technology and innovative design capabilities.

Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s 1 Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s 2 Fiber Optic Spectrometer for Accurate and Sensitive Data in Wide Wavelength Range 2048x64 Pixel Array 14x14 mu m Pixel Size 1.2kg Integration Time 4ms-900s 3
Frequently Asked Questions
Q1: This is my first time using the spectrometer. Is it easy to operate?

A1: We provide an English manual and guide video, along with professional technical operation meetings with our technicians.

Q2: Do you offer operation training?

A2: Your technicians can receive training at our factory, or our engineers can provide local support including installation, training, debugging, and maintenance.

Q3: What's your website?

A3: Visit us at www.jinsptech.com

Q4: What about your quality assurance?

A4: All goods undergo quality inspection before shipment, and we can provide inspection photos upon request.
