0.13 Numerical Aperture Fiber Optic Spectrometer for Wide Wavelength Range 200nm-1100nm
Key Specifications
| Attribute |
Value |
| Spectral Range |
200nm - 1100nm |
| Effective pixels |
2048*64 |
| Pixel Size |
28.672*0.896mm |
| Fiber Interface |
SMA905, free space |
| Numerical Aperture |
0.13 |
| Focal Length |
100mm |
| Dimensions |
180mm*120mm*50mm |
| Weight |
1.2kg |
Cooled Detector Low Noise High Sensitivity Modular Spectrometer

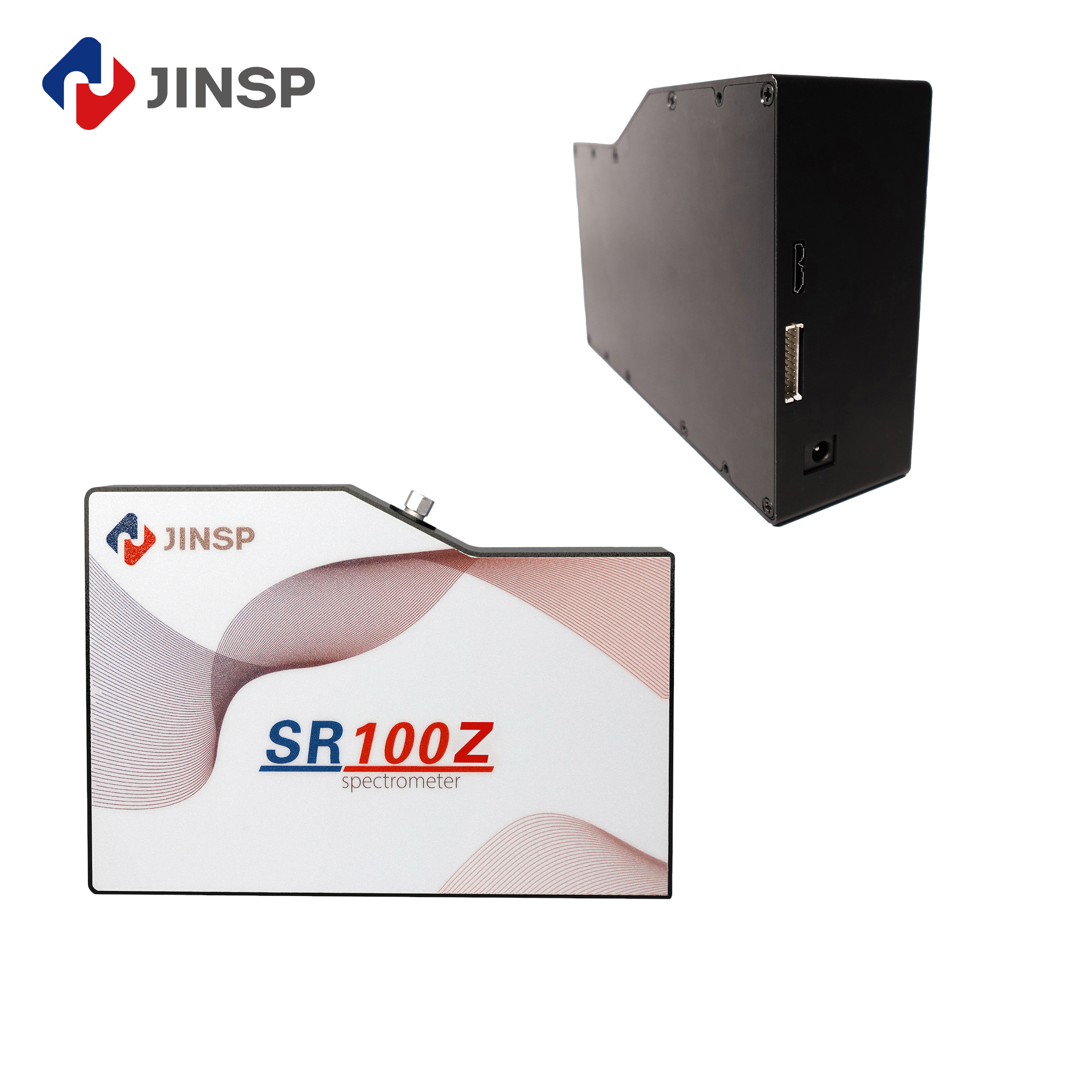

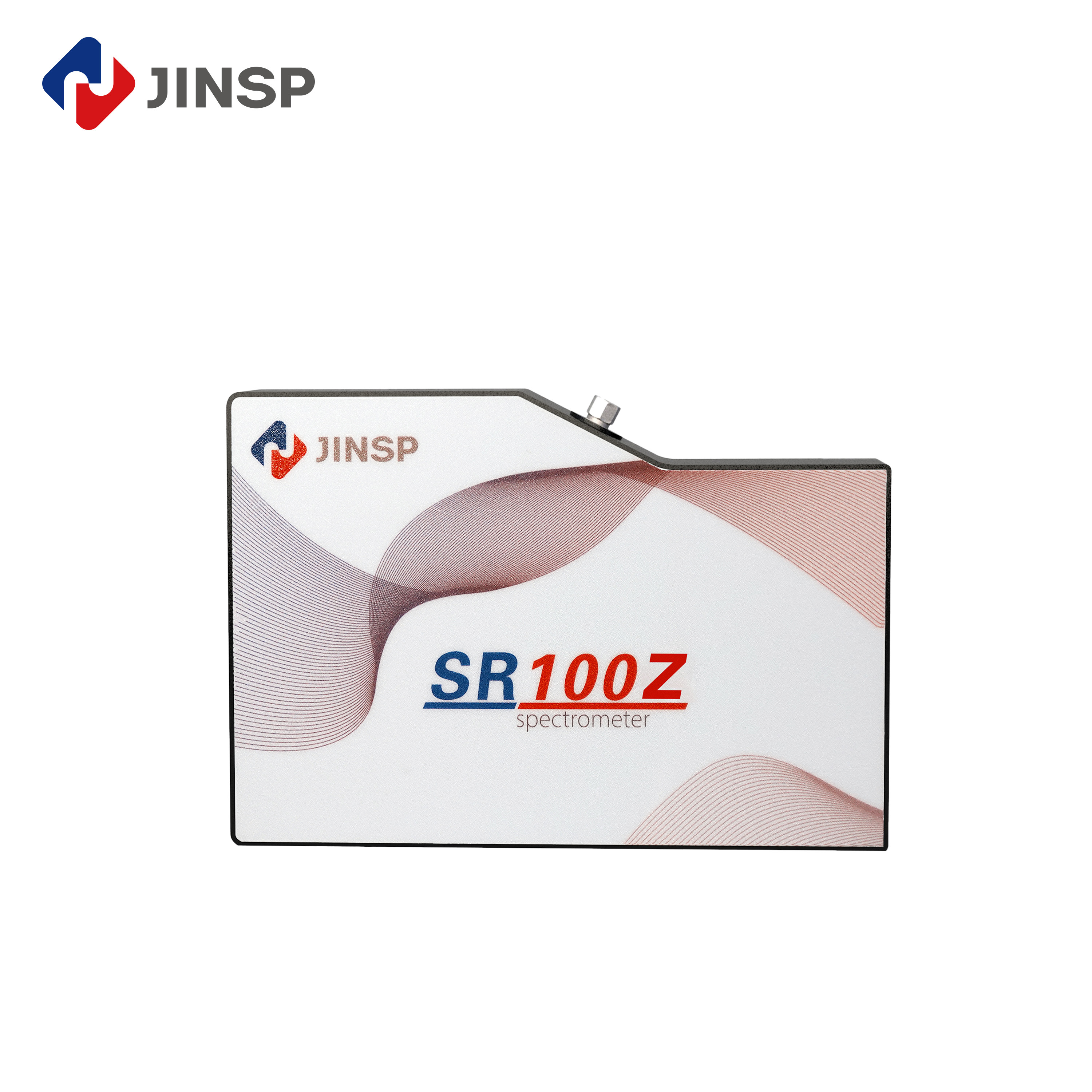

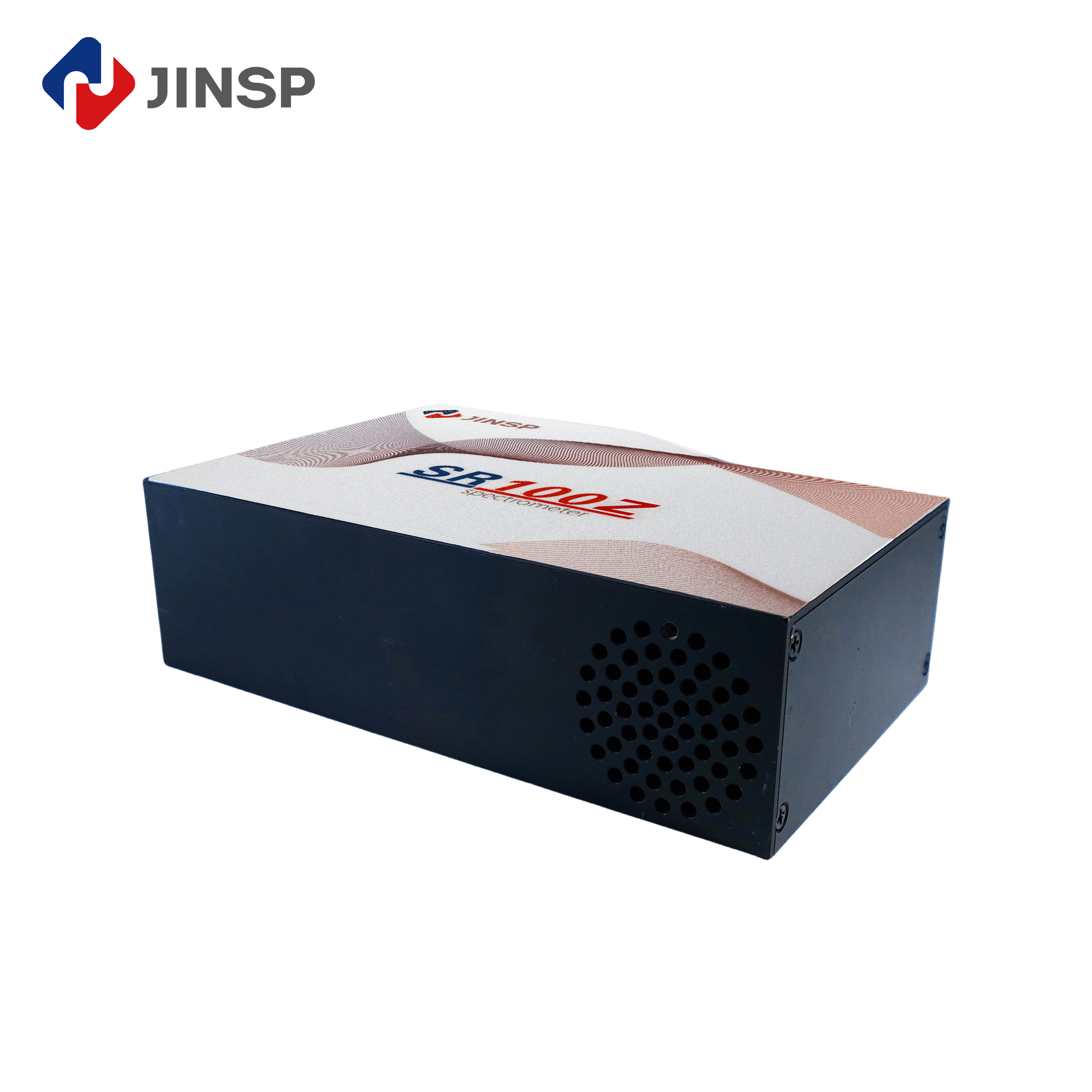

The JINSP SR100Z fiber optic spectrometer redefines precision with its Hamamatsu S11850 back-illuminated CCD and advanced thermal regulation. Its TE-cooled sensor maintains 5℃ stability, delivering 2x enhanced quantum efficiency (200nm ~ 1100nm) compared to linear arrays, while achieving 70% UV sensitivity for superior low-light performance.
Ideal for demanding applications from Raman spectroscopy to fluorescence analysis, this system combines a 2048x64 pixel array with FPGA-optimized signal processing. The expanded 14μm² pixel area ensures exceptional light capture, making it a versatile solution for both research labs and industrial spectral measurement needs.
Product Parameters
| Detector |
Chip Type |
Back-illuminated TE-cooling Hamamatsu S11850 |
| Effective Pixel |
2048*64 |
| Pixel Size |
14*14μm |
| Sensing Area |
28.672*0.896mm |
| Optical Parameters |
| Optical Design |
F/4 cross type |
| Numerical Aperture |
0.13 |
| Focal Length |
100mm |
| Entrance Slit Width |
10μm, 25μm, 50μm, 100μm, 200μm (customizable) |
| Fiber Interface |
SMA905, free space |
| Electrical Parameters |
| Integration Time |
4ms~900s |
| Data Output Interface |
USB3.0, RS232, RS485, 20pin connector |
| ADC Bit Depth |
16-bit |
| Power Supply |
5V |
| Operating Current |
＜3.5A |
| Physical Parameters |
| Operating Temperature |
10°C ~ 40°C |
| Storage Temperature |
-20°C ~ 60°C |
| Operating Humidity |
＜90%RH (no condensation) |
| Dimensions |
180mm*120mm*50mm |
| Weight |
1.2kg |
List of Product Models
| Model |
Spectral Range (nm) |
Resolution (nm) |
Slit (μm) |
| SR100Z-G21 |
200~1100 |
2.2nm
1.5nm
1.0nm |
50μm
25μm
10μm |
SR100Z-G23
SR100Z-G24 |
200~875
350~1025 |
1.6nm
1.0nm
0.7nm |
50μm
25μm
10μm |
| SR100Z-G28 |
200~345 |
0.35nm
0.2nm
0.14nm |
50μm
25μm
10μm |
| SR100Z-G25 |
532~720(4900cm-1*) |
13cm-1 |
50μm |
| SR100Z-G26 |
638~830(3200cm-1*) |
10cm-1 |
25μm |
| SR100Z-G27 |
785~1080(3200cm-1*) |
11cm-1 |
50μm |
* Primarily designed for Raman applications, with the corresponding Raman.
Technical Characteristics
- High sensitivity: 78% peak quantum efficiency, UV band optimization
- High resolution: Realize resolution <1.0nm@25um (200~875nm)
- High flexibility: 200nm~1100nm, compatible with multiple interfaces including USB3.0, RS232 and RS485
Typical Applications
- Detect absorption, transmittance and reflection Spectrum
- OEM product module: Fluorescence spectrum, Raman spectrum, etc.
Company Introduction
JINSP Company Limited, abbreviated as "JINSP", is a professional supplier with over 17 years of experience in spectral detection technology products, including Raman, FT-IR, LIBS technologies, etc. After 17 years of technology accumulation, the company's core key technologies have reached the international leading position at the level, and the cumulative number of patent applications exceeded 200.
In addition to its main headquarters located in the bustling city of Beijing, JINSP has established a fully owned subsidiary manufacturing facility situated in the province of Jiangsu, China.
JINSP Company received ISO9001:2015, ISO14001:2015, and ISO45001:2018 certifications. JINSP can provide required certifications, such as certification by the Ministry of Public Security or National Institute of Metrology, Environmental Level Certification, IP Level Certification, CE Certification, Transport Identification Report, EU ECAC certification, German ICT Security Testing, etc.
Frequently Asked Questions
Q1: This is the first time I use, is it easy to operate?
A1: We will send you manual and guide video in English, it can teach you how to operate the spectrometer. Also our technicians will offer professional technical operation meetings.
Q2: Can your offer a operation training?
A2: Your technicians can come to our factory for a training. Jinsp engineers can go to your place for local support (installation, training, debugging, maintenance).
Q4: What about your quality assurance?
A4: We have a quality inspection team. All goods will go through quality inspection before shipment. We can send you pictures for inspection.
