High-Sensitivity Fiber Optic Spectrometer with 100mm Focal Length and Customizable Entrance Slit Width
Key Specifications
| Attribute |
Value |
| Spectral Range |
200nm - 1100nm |
| Effective pixels |
2048*64 |
| Pixel Size |
28.672*0.896mm |
| Fiber Interface |
SMA905, free space |
| Numerical Aperture |
0.13 |
| Focal Length |
100mm |
| Dimensions |
180mm*120mm*50mm |
| Weight |
1.2kg |

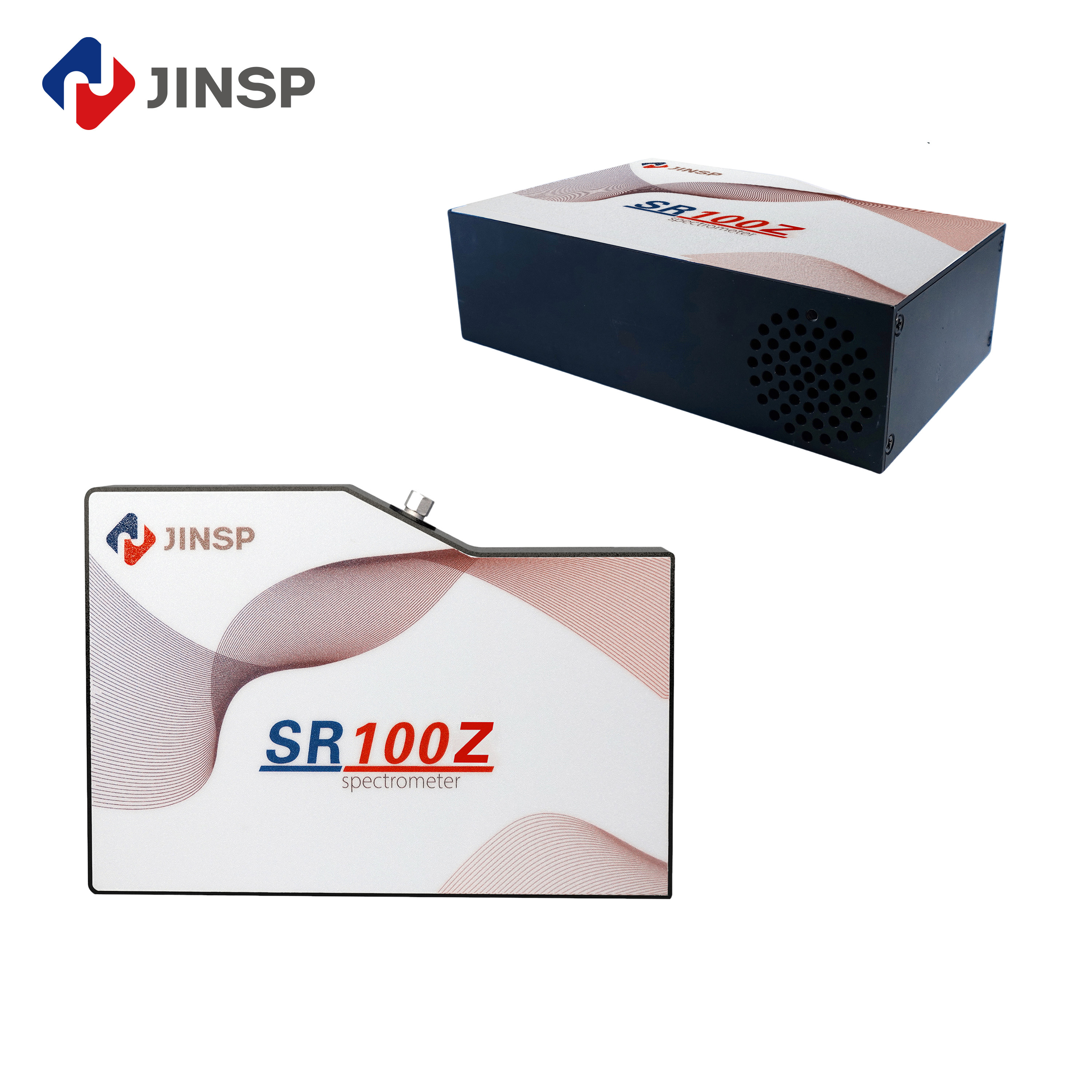

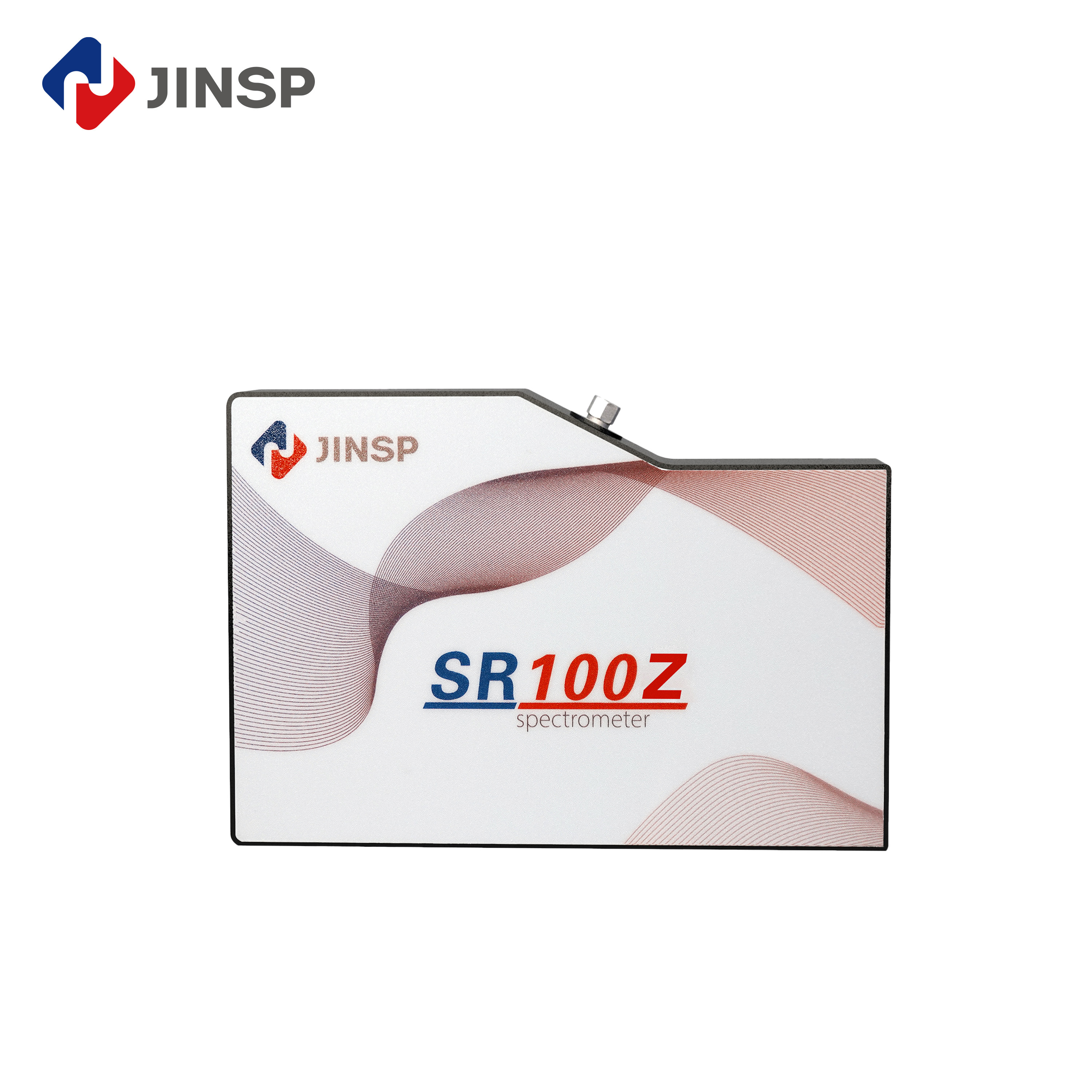

UV-VIS 200nm-1100nm Wide Wavelength Range Fiber Optic Spectrometer
The SR100Z spectrometer combines 14μm² pixel architecture with industrial-grade reliability. Its back-thinned CCD captures twice the photon energy in near-infrared ranges while maintaining <5℃ operational stability through active thermal management.
The revolutionary FPGA circuit processes spectral data 3x faster than conventional designs. With 64-channel parallel acquisition, this instrument redefines what compact spectrometers can achieve for real-time plasma emission monitoring and portable environmental sensing.
Detailed Product Parameters
| Category |
Parameter |
Value |
| Detector |
Chip Type |
Back-illuminated TE-cooling Hamamatsu S11850 |
| Effective Pixel |
2048*64 |
| Pixel Size |
14*14μm |
| Sensing Area |
28.672*0.896mm |
| Optical Parameters |
Optical Design |
F/4 cross type |
| Numerical Aperture |
0.13 |
| Focal Length |
100mm |
| Entrance Slit Width |
10μm, 25μm, 50μm, 100μm, 200μm (customizable) |
| Electrical Parameters |
Integration Time |
4ms~900s |

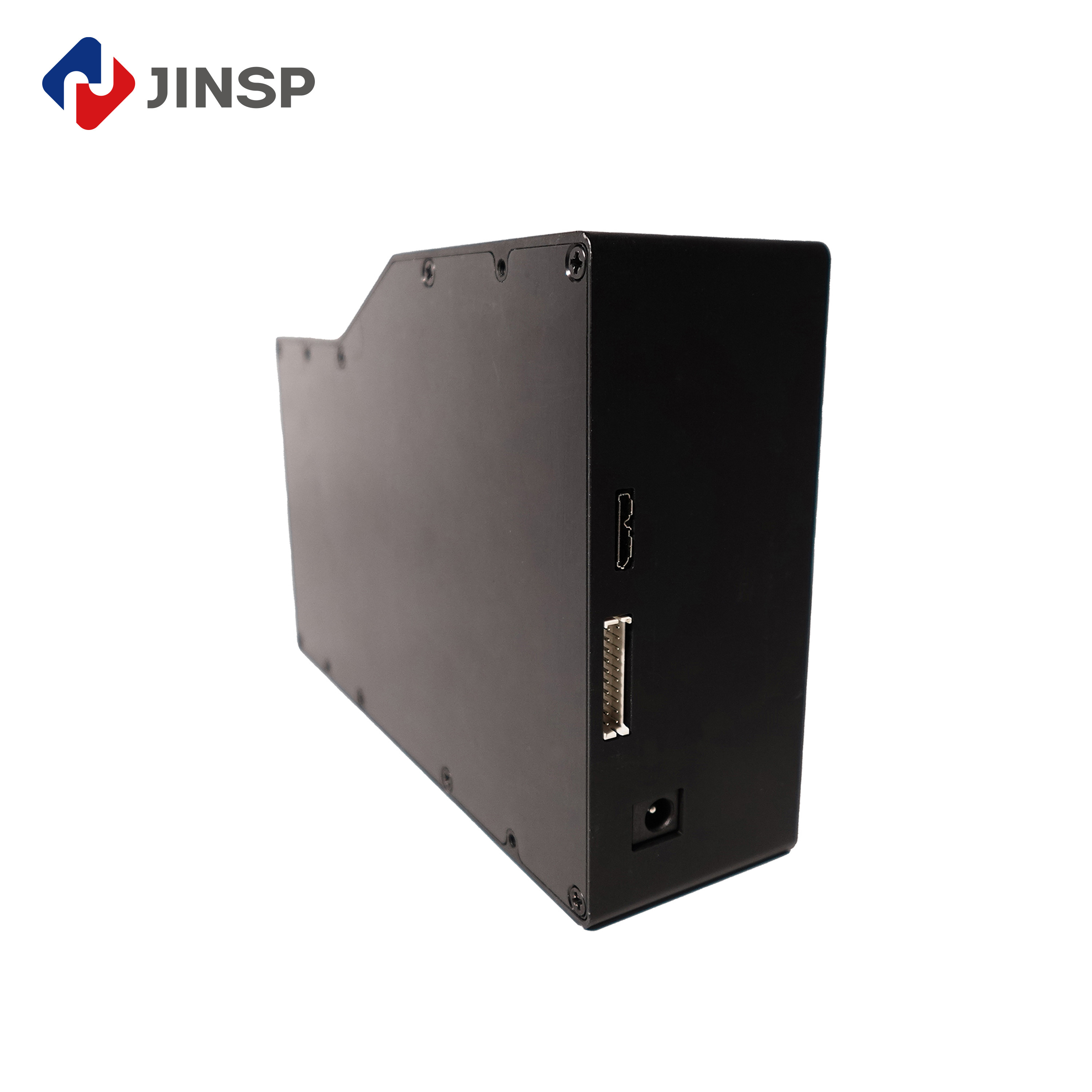

| Data Output Interface |
USB3.0, RS232, RS485, 20pin connector |
| ADC Bit Depth |
16-bit |
| Power Supply |
5V |
| Operating Current |
<3.5A |
| Physical Parameters |
Operating Temperature |
10°C ~ 40°C |
| Storage Temperature |
-20°C ~ 60°C |
| Operating Humidity |
<90%RH (no condensation) |
| Dimensions |
180mm*120mm*50mm |
| Weight |
1.2kg |
Available Product Models
| Model |
Spectral Range (nm) |
Resolution (nm) |
Slit (μm) |
| SR100Z-G21 |
200~1100 |
2.2nm
1.5nm
1.0nm |
50μm
25μm
10μm |
SR100Z-G23
SR100Z-G24 |
200~875
350~1025 |
1.6nm
1.0nm
0.7nm |
50μm
25μm
10μm |
| SR100Z-G28 |
200~345 |
0.35nm
0.2nm
0.14nm |
50μm
25μm
10μm |
| SR100Z-G25 |
532~720(4900cm-1*) |
13cm-1 |
50μm |
| SR100Z-G26 |
638~830(3200cm-1*) |
10cm-1 |
25μm |
| SR100Z-G27 |
785~1080(3200cm-1*) |
11cm-1 |
50μm |
Note: Models marked with * are primarily designed for Raman applications.
Technical Characteristics
- High sensitivity: 78% peak quantum efficiency with UV band optimization
- High resolution: Achieves resolution <1.0nm@25um (200~875nm)
- High flexibility: 200nm~1100nm range with multiple interface options including USB3.0, RS232 and RS485
Typical Applications
- Absorption, transmittance and reflection spectrum detection
- OEM product module for fluorescence spectrum, Raman spectrum, and more
